    Goodyear Truck Helper Bags 2B12-346 578-92-3-315 Double Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B12-346
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear Truck Helper Bags 2B12-346 578-92-3-315 Double Bellow

    Goodyear Truck Helper Bags 2B12-346 578-92-3-315 Double Bellow Industrial Air Spring



    Item Details

    Goodyear Part number: 2B12-346; 2B12 346; 2B12346

    Flexmember Number: 579-92-3-315; 579 92 3 315; 579923315

    Upper Plate Number:ASA-92-8-005; ASA 92 8 005;ASA-92-8-005

    Lower Plate Number: ASA-92-6-002; ASA 92 6 002; ASA926002

    Convolutions: Double


    Other Reference


    Air spring supplier/competitor: CONTI/ Continental/ Contitech
    Supplier/ Competitor number: 64599; FD 331-26-541; FD331-26541; FD 331-26 541; FD33126541


    Air spring supplier/competitor:FIRESTONE
    Supplier/ Competitor number:7550; W013587550; W01 358 7550; W01-358-7550; WO13587550; WO1 358 7550; WO1-358-7550


    Air spring supplier/competitor:HISTEER
    Supplier/ Competitor number:10315


    Air spring supplier/competitor:TRIANGLE
    Supplier/ Competitor number: 4541


    Air spring supplier/competitor:TRP
    Supplier/ Competitor number:AS75500


    Air spring supplier/competitor:WATSON & CHALIN
    Supplier/ Competitor number:AS-0087; AS 0087; AS0087


    2B12-346 Air Spring Specifications and Parameters


    Top Plate Hole/Stud Qty: 2
    Top Plate Dia: 9
    Top Plate C to C Diameter: 6.2
    Bottom Plate Hole Stud Qyt: 2
    Bottom Plate Dia: 9
    Bottom Plate C to C Diameter: 6.2
    Bottom Plate Part #:
    Bottom Plate Alignment: Parallel
    Bumper: Yes
    Bracket:
    Min Height: 3.8
    Max Height: 14.4


    Other Model

    Bellows Number

    Assembly Number

    Upper Plate

    Lower Plate

    578-92-3-315

    2B12-345

    ASA-92-8-005

    ASA-92-6-002

    578-92-3-315

    2B12-416

    ASA-92-8-002

    ASA-92-6-002

    578-92-3-315

    2B12-440

    ASA-92-8-005

    ASA-92-6-004


    Air Spring


    1. Stud
    A permanent part of the bead plate assemblyused to attach the airspring to the suspension.
    2. Combo Stud
    Combination mounting stud and air fitting.
    3. Blind Nut
    A permanent part of the bead plate assemblyproviding an altemnate mounting system to thestud.
    4. Air Fitting Hole
    A tapped hole providing airentrance for the part.
    5. Bead Plate
    Permanently crimped onto the bellows at thefactory allowing complete part leak testing priorto shipment.
    6. Bellows
    The heart of an Airide spring. Includes at leastfour plies, or layers, of material-an inner layertwo plies of cord-reinforced fabric, and an outerlayer.
    7. Bumper
    A solid molded rubber fail-safe device used onmany suspension applications. Preventsexcessive damage to vehicle and suspension inthe case of sudden air pressure loss.
    8. Girdle Hoop
    A ring between the convolutions of theconvoluted-type air spring.

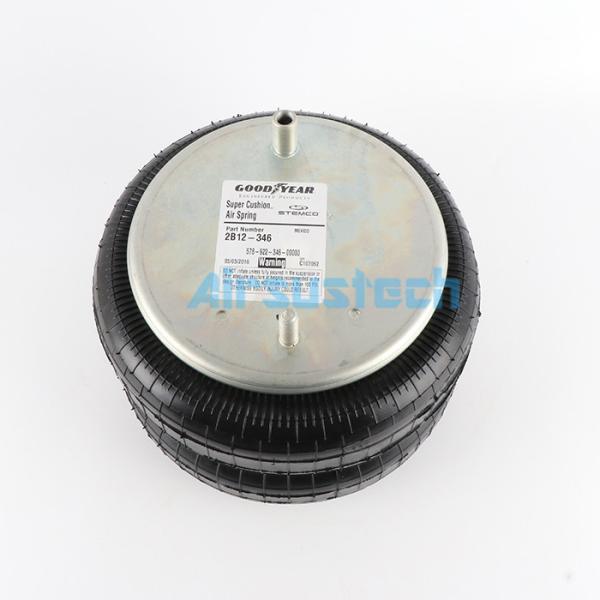

    The related picture of 2B12-346 goodyear helper bag/air springs
