    TS16949 Goodyear Rubber Air Spring Forming Press Industrial 2B8 2B8-850 579-923-530

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B8-850
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    TS16949 Goodyear Rubber Air Spring Forming Press Industrial 2B8 2B8-850 579-923-530

    Forming Press Industrial 2B8 2B8-850 579-923-530 Double Convoluted Goodyear Rubber Air Spring



    Item Details

    Goodyear Part number

    2B8-850; 2B8 850; 2B8850; 2B8

    Flexmember Number

    579-923-530; 579 923 530; 579923530

    Style

    Air Spring Complete

    Convolutions

    Double


    Other Reference

    Air spring supplier: Contitech/ Continental

    Supplier number: FD 120-20 CI G1/4 ; FD120-20CIG1/4 ; FD120-20; FD12020


    Air spring supplier: Firestone

    Supplier number: W01-M58-6353 ; W01 M58 6353 ; W01M586353; WO1-M58-6353 ; WO1 M58 6353 ; WO1M586353 ; 026B 095.0275

    Firestone style 26


    Air spring supplier: Enidine

    Supplier number: YI-2B8-850 ; YI 2B8 850 ; YI2B8850



    Air spring supplier: CONTITECH

    Supplier number: FD 120-17; FD 120 17; FD12017; 61361

    Air Suspension: WEFORMA

    Number: WBZ 300-E2


    Air Suspension supplier: BOSCH

    Number: 822419062


    Air supension supplier: GIGANT

    Number: 196028


    2B8-850 Air Spring Specifications and Parameters

    Top plate mounting threads qty: 2

    Bottom plate mounting threads qty: 2

    Air inlet: centered

    Girdle hoop: 1 piece


    Air springs are used in carbon vibration froming press


    By adding air spring components and re-arranging the overall structure of the molding machine, the current pre-pressurization of the molding machine based on the existing equipment is realized. Through the pre-pressurization, the compaction force of the vibration molding machine can be effectively improved.The air spring is added to pre-press the weight to further increase the compaction force and minimize the gap between material particles.
    A cover is added above the heavy hammer of the original molding machine to pass through the lifting shaft of the heavy hammer. Two sets of air springs are assembled in the cover. Two sets of oil cylinders are installed at both ends of the cover to lock the cover and the mold.
    After adding the air spring,in the initial state, the air spring shrinks (communicating with the atmosphere), and the weight and the cover are in the initial state (the highest point). When starting to work, the weight and the cover body descend. When the cover body is lowered to fit the lower mold cavity, the locking oil cylinder is sent to work to lock the cover body and the lower mold cavity. When the tightening action is completed, the molding machine vibrating table vibrates. After the vibration is over, send a message to open the clamping cylinder and air spring. After the clamping oil cylinder is opened in place, the weight is lifted, and the air spring is compressed to exhaust and reset. When an ultra-low block occurs, that is, when the weight falls beyond the maximum stroke of the air spring, close the air spring intake.

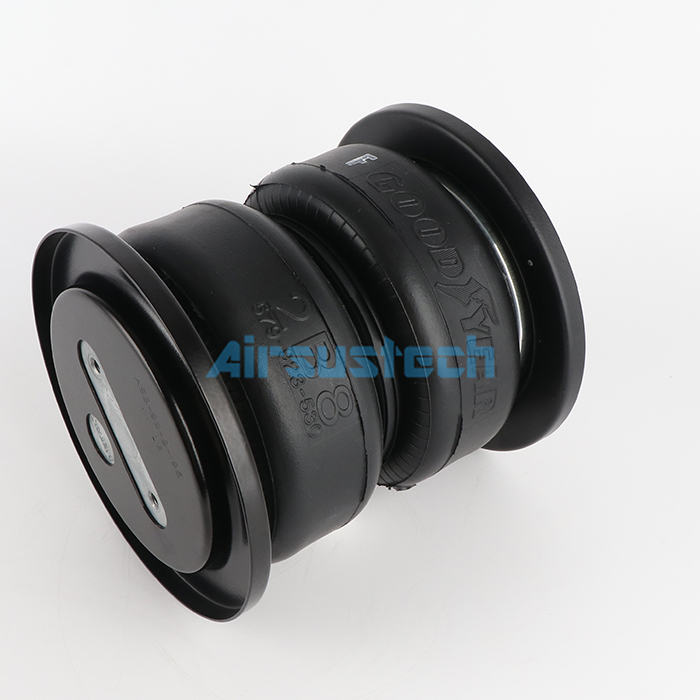

    The related picture of 2B8-850 goodyear helper bag/air springs
