    Goodyear Double Bellow Air Spring 2B6-535 2B6-1 CONTI 66094 FD 110-15 766 Industrial Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6-535
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear Double Bellow Air Spring 2B6-535 2B6-1 CONTI 66094 FD 110-15 766 Industrial Air Bag

    Goodyear Double Bellow Air Spring 2B6-535 2B6-1 CONTI 66094 FD 110-15 766 Industrial Air Bag



    Item Details

    Goodyear Part number: 2B6-535; 2B6 535; 2B6535; 2B6-1; 2B6 1; 2B61

    Flexmember Number: 579-92-3-515; 579 92 3 515; 579923515

    Upper Plate Number:ASC-92-8-175; ASC 92 8 175; ASC928175

    Lower Plate Number: ASA-92-6-052; ASA 92 6 052; ASA926052
    Style: Air Spring Complete

    Convolutions: Double


    Other Reference

    Air Spring Supplier: CONTI
    Supplier Number: 66094; FD110-15766; FD 110-15 766; FD11015766; FD 110-15766; FD 110 15 766


    Air spring Supplier: LOAD AIR
    Supplier Number: P10-754U; P10 754U; P10754U

    2B6-535 Air Spring Specifications and Parameters

    Bellow Type: Double
    Automann Bellow #:
    Firestone Bellow #:
    Goodyear Bellow #: 579-92-3-515
    Contitech Bellow #:
    Triangle Bellow #:
    Bottom Plate/Pison Type:
    Top Plate Hole/Stud Qty: 2

    Top Plate Mounting Threads: 3/8-16UNC
    Top Plate Dia: 4.15
    Top Plate C to C Diameter: 2.75
    Bottom Plate Hole Stud Qyt: 2

    Bottom Plate Mounting Threads: 3/8-16UNC
    Bottom Plate Dia: 4.15
    Bottom Plate C to C Diameter: 2.75
    Bottom Plate Part #:
    Bottom Plate Alignment: Parallel
    Bumper: No
    Bracket:
    Min Height/Collapsed Height: 2.8
    Max Height: 9.1

    Usable Stroke

    Max Dia @ 100 psi In

    Bumper

    Force Available At Actuator
    Height Limit (Pounds)

    Force Available At Compressed
    Height Limit (Pounds)

    Air Fitting Size (in)

    100 psi

    80 psi

    60 psi

    40 psi

    100 psi

    80 psi

    60 psi

    40 psi

    5.9

    7.0

    NO

    585

    400

    215

    90

    3395

    2790

    2170

    1505

    1/4, Offset


    Design Load Range (Pounds)

    Design Load Range (Inches)

    Approximate Isolation Percent For A Disturbing Frequency Of:

    435 CPM

    870 CPM

    1160 CPM

    1750 CPM

    300-2270

    5.0-7.0

    92.0

    97.5

    98.3

    99.3

    Other Model

    Assembly Number: 2B6-536

    Elastomer: Wingprene

    Air fittings: 1/4''-18 NPTF Offset 1.375''

    Bumper: Yes

    Applications

    PAPER SIZING PRESS

    PICKLING TANK ACTUATOR

    MISSILE ASSEMBLY FIXTURE

    CORE STRAIGHTENER

    ROLLER FRICTION BRAKE

    BAG FLATTENER

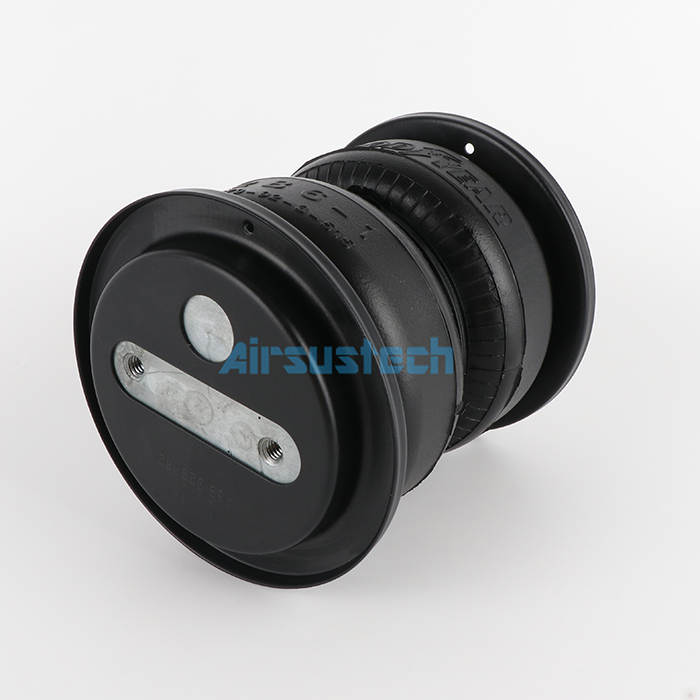

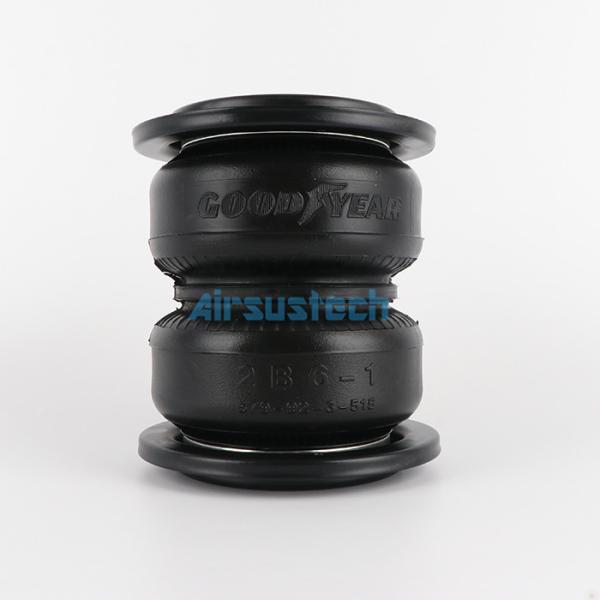

    The related picture of 2B6-535 goodyear helper bag/air springs
