Brand Name : | AIRSUSTECH |
Model Number : | 1B15-375 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Automation Machinery Industrial Air Shocks 1B15-375 Goodyear Single Convoluted Air Spring W01-358-8158 Firestone
Item Details
Goodyear Part number: 1B15-375; 1B15 375; 1B15375
Style: Air Spring Complete
Convolutions: Single
Sample: Available
Brand: Goodyear
Condition: 100% New
Delivery time: 3-8 Working Days
Packing: Strong Cartons
Shipping ways: By express/air/train/others for small quantity, By sea/others for big quantity
Other Reference
Air Spring Supplier: Firestone
Supplier Number: W01-358-8158; W01 358 8158; W013588158;
WO1-358-8158; WO1 358 8158; WO13588158
1B15-375 Air Spring Specifications and Parameters
Part Number | Max OD @ 100 psi (Inches) | Design Load Range (Pounds) | Design Load Range (Inches) | Useable Stroke (Inches) |
1B15-375 | 17.5 | 2295-13,740 | 4.4-5.4 | 5.6 |
Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper | Approximate Isolation Percent For A Disturbing Frequency Of: | Air Fitting Size (in) | |||
435 CPM | 870 CPM | 1160 CPM | 1750 CPM | ||||
2.3 | 7.9 | NO | 91.0 | 97.5 | 98.6 | 99.4 | 1/4 OS |
Force Available At Actuator Height Limit (Pounds) | Force Available At Compressed Height Limit (Pounds) | ||||||
100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 ps |
4980 | 3775 | 2470 | 1490 | 16750 | 13450 | 9665 | 6510 |
Air springs can be used in Automation machinery
The air spring can provide an incomparable degree of isolation and
shock absorption effect of other shock absorbers. The external air
storage device can provide a lower natural frequency. The air
spring can precisely control the height of the spring. It adjusts
the operating height by adjusting the air pressure. There is no
static friction with other components. When the bearing capacity
changes or the position is shifted, the system pressure is
automatically adjusted to ensure the operating height of the air
spring and effectively prevent resonance. The air spring can reduce
the transmission of structural noise, because it does not have the
spring vibration generated in the ordinary coil spring, and because
it does not generate noise by itself, it can be said that the air
spring has already played an indispensable role in the modern
industrial field.
Other Applications
Medical equipment
Case sealer
Presses
Air compressors
Centrifuges
Vibrating conveyors
Control hammers
Foundry machinery
Textile machines
Optical and laser instruments
Integrated circuits
Ultra-precision machine tools and other equipment to its
application.

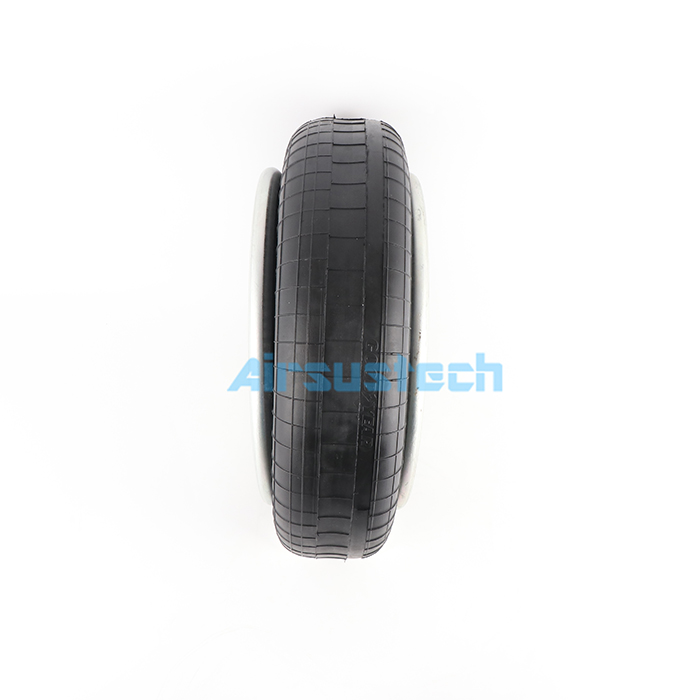

The related picture of 1B15-375 goodyear helper bag/air springs
![]() |
