    3B12-304 1/4 Triple Convoluted Air Bag Firestone W013588006 For Centering Machine

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B12-304
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    3B12-304 1/4 Triple Convoluted Air Bag Firestone W013588006 For Centering Machine

    3B12-304 1/4 Triple Convoluted Airbag Firestone W013588006 Industrial Air Springs For Centering Machine


    Item Details


    Goodyear Part number: 3B12-304; 3B12 304; 3B12304

    Goodyear Bellow Number: 578933100; 578-93-3-100; 578 93 3 100
    Convolutions: Double

    Type: Air Spring Assembly


    Assembly NumberElastomerAir FittingBumper Included
    3B12-304NAT. Rubber1/4''-18 NPTF Offset 2.87''NO
    3B12-305NAT. Rubber3/4''-14 NPTF Offset 2.87''NO
    3B12-308NAT.Rubber1/4''-18 NPTF CenteredNO

    578933100

    Flexmember Only

    NAT. Rubber//


    Other Reference


    AUTOMANN: ABSP3B22R-8006; ABSP3B22R8006


    CONTI: 64568; FT 330-29 503; FT 330-29503; FT33029503; FT 330 29 503


    FIRESTONE: 8006; W013588006; W01 358 8006; W01-358-8006; WO13588006; WO1 358 8006; WO1-358-8006


    LOAD GUARD: SC2132


    SUSPENSIONS INC.: 200620


    TRIANGLE: 4430; 4503


    TRP: ASP1710



    3B12-304 Goodyear air spring technical parameter


    Top Plate Hole/Stud Qty: 2

    Hole/Stud: 3/8''-6UNC
    Top Plate Dia: 9
    Top Plate C to C Diameter: 6.2
    Bottom Plate Hole Stud Qyt: 2

    Hole/Stud: 3/8''-6UNC
    Bottom Plate Dia: 9
    Bottom Plate C to C Diameter: 6.2
    Bottom Plate Part #:
    Bottom Plate Alignment: Parallel
    Bumper: No
    Bracket:
    Min Height: 4.8
    Max Height: 18

    Air Fittings: 1/4'' Offset

    Bumper: Without

    Girdle hoop: 2 pieces


    Usable StrokeMax Dia @ 100 psi InForce Available At Actuator
    Height Limit (Pounds)
    Force Available At Compressed
    Height Limit (Pounds)
    100 psi80 psi60 psi40 psi100 psi80 psi60 psi40 psi
    13.313.029.252165137073510165791558553960

    Design Load Range (Pounds)Design Load Range (Inches)Approximate Isolation Percent For A Disturbing Frequency Of
    435 CPM870 CPM1160 CPM1750 CPM
    860-730511.0-15.094.099.199.699.6

    About Rubber Air Spring


    The concoluted air spring is composed of a steel ring and a rubber airbag. The steel ring fastens the rubber airbag to form a columnar body with indentations, which limits the lateral expansion of the airbag and prevents the joints from rubbing against each other.


    Application


    Centering machine

    Tobacco Machinery

    Analyzers

    Secondary Lifting Equipment

    Missile Transport Equipment

    Aircraft

    Modified Vehicle Suspensions

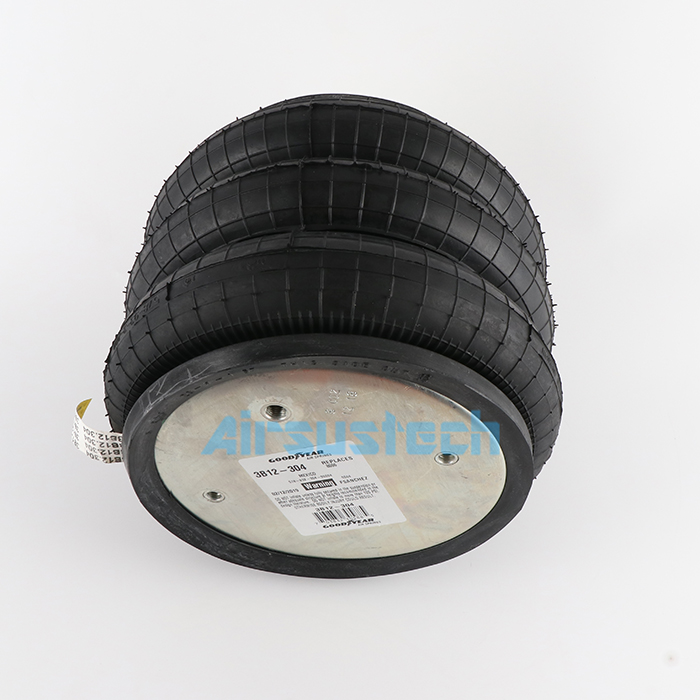

    The related picture of 3B12-304 goodyear helper bag/air springs
