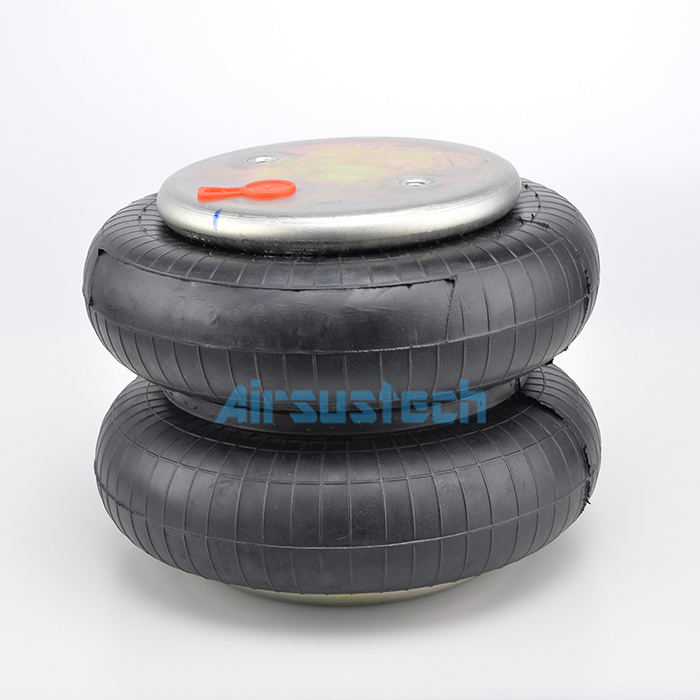

GRANNING 15668 Firestone W01-M58-6188 Metric Double Convoluted Industrial Air Springs For Demoulding Machine

Cross Reference

Air bag supplier: Firestone

Supplier Number: W01-M58-6188; W01 M58 6188; W01M586188; WO1-M58-6188; WO1 M58 6188; WO1M586188; w01-m58-6188; w01 m58 6188; w01m586188

Airbag supplier: GRANNING

Supplier Number: 15668

Specifications and Detailed Technical Parameters

Mfr Part # W01M586188
Part # Variations: W01-M58-6188, WO1M586188, WO1-M58-6188
Additional Info: WO1-M58-6188, 274CT Style (Formerly 20) Airspring, Type 3 Bead Plate, (2) M8 Blind Nuts On 89mm Centers, 1/4 BSP Offset Port, Rubber Bumper

About air spring

Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
Girdle: Only found in air springs of convoluted design, separating the bellows chambers.
Bumper: An optional layer of padding protecting the piston from damage if the air spring fails

Air spring can be used in Demoulding Machine

In the demoulding machine, after the air spring is adjusted and used, the internal pressure is constant, which can provide stable and continuous force to the equipment according to the user's requirements. Different from traditional fixed compression devices, when encountering abnormal operations, due to the compressibility of air, the capsule air spring can be further compressed, so that the equipment "has a way to retreat" and avoid further damage to the equipment.

Moreover, the cushioning effect of the air spring is good, and it can be applied to shock absorption of various loads without changing the shock absorber, and a satisfactory effect can be achieved.

In addition, the air springs can be used directly.
