1B8-560 1B8 560 Goodyear Single Convoluted Industrial Air Spring 1B8-1 579-91-3-532

Cross Reference

This air spring is imported from Mexico.

Goodyear Part number: 1B8-560; 1B8 560; 1B8560; 1B8-1; 1B8 1; 1B81

Goodyear Bellow number: 579-913-532; 579 913 532; 579913532; 579-91-3-532

Specifications and Detailed Technical Parameters: Goodyear 1B8-560

1/4'' Centered air fitting

3/8''-16 UNC Screw Center

2.75'' Screw Center Distance

Other Original Goodyear Model Air Spring we have

Air Spring Advantages

1) For an air spring of the same size, when the internal pressure changes, different bearing capacities can be obtained. This makes the same air spring adapt to the requirements of various loads, so it is economical. While bearing vertical load, the air spring can also bear certain lateral load and transmit torque.

2) Increasing the total volume of the air spring can reduce the natural frequency of the vibration isolation system, which is a unique advantage of the air spring. The volume of the air spring body, due to the limited structural space, cannot be too large. In order to reduce the natural frequency of the vibration isolation system, an auxiliary air chamber can be installed, and the auxiliary air chamber can be arranged far away from the air spring. The volume of the auxiliary air chamber is increased, that is, the total volume of the air spring is increased, and the natural frequency of the air spring vibration isolation system is reduced.

3) The air spring can use the height control valve system to keep the working height of the air spring basically unchanged under different loads. Similarly, the height control valve can also be used to make the air spring have different heights under a certain load, so it can adapt to various structural requirements.

How to make sure which air spring you are need

1. Start with the original equipment or aftermarket part number. It is usually located on a label affixed to the top plate of the air
spring.
2. If the O.E. part number or aftermarket part number is unknown you should begin your search with the bellows number. The number is
molded into the rubber part of the air spring.
3. Measure the width of the top plate and make a note of the bolt pattern or taps.
4. Measure the width of bottom bead plate and make a note how the bolt pattern is oriented compared to the bolts on the top plate (Inline or Rotated). The view of this orientation should appear as if you are looking directly through a clear drinking glass from the top to bottom.
5. Measure the height of the air spring with no air pressure from the top plate to the bottom of the piston. This is the extended height.
6. Compress the bag as far as possible with no air pressure and measure the height. This is the compressed height or minimum height.
7. Measure the distance from center to center of each bolt on the top and bottom of the air spring.

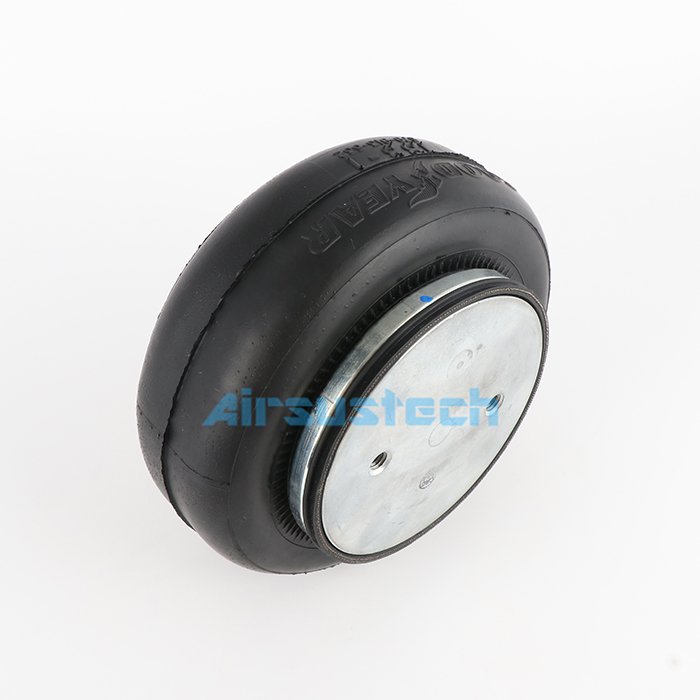

The related picture of 1B8-560 goodyear helper bag/air springs
