Brand Name : | AIRSUSTECH |
Model Number : | 2B58352 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Dual 1/2-14NPT Ports Air Lift 58352 Double Convoluted Industrial Suspension Air Springs
Cross Reference
Air Lift | 58352 |
Specifications and Detailed Technical Parameters: 2B58352
Model No.: 2B58352
Height: 203mm
Rubber Bellow Diameter: 152mm
Top plate mounting hole: 2pcs 3/8-16UNC
Bottom plater mounting hole: 1pcs 3/8-16UNC
Air Fitting: 2pcs× 1/2-14NPT on top plate
Top plate diameter: 115mm
Bottom plate diameter: 115mm
Advantages
Air Spring Components
1. Blind Nut
A permanent part of the bead plate assembly providing an alternate
mounting system to the stud.
2. Air Fitting Hole
A tapped hole usually 1/4" N.P.T. providing air entrance for the
part.
3. Bead Plate
Permanently crimped onto the bellows at the factory allowing
complete part leak testing prior to shipment.
4.Bellows
The heart of an Airide spring. Includes at least four plies, or
layers, of material–an inner layer, two plies of cord reinforced
fabric, and an outer layer.
7. Bumper (Optional)
A solid molded rubber fail-safe device used on many suspension
applications. Prevents excessive damage to vehicle and suspension
in the case of sudden air pressure loss.
8. Girdle Hoop
A ring between the convolutions of the convoluted type air spring.

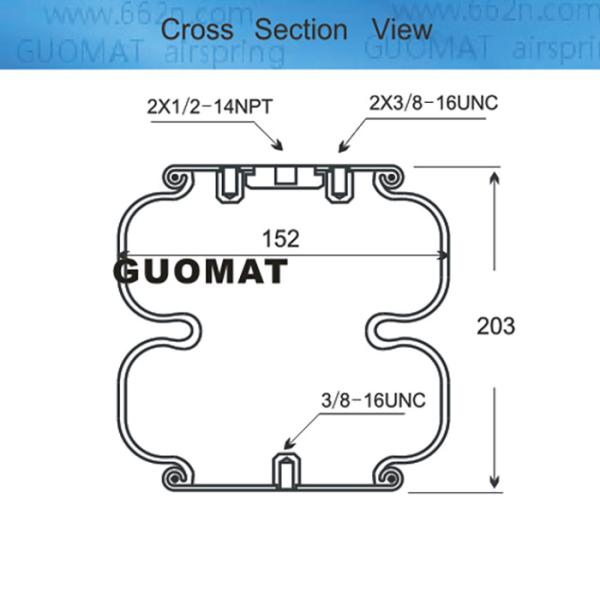

Product Drawing
![]() |
