    Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B7995
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547

    Rubber Shocks Firestone W01-358-7995 Triple Convoluted Contitech FT 330-29 547 Air Spring Assembly


    Specifications and Tecnical Parameters: 3B7995

    1. Min. Height:130mm

    2. Max. Height: 460mm

    3. Max. OD: 330mm

    4. Top plate mounting thread: Single Combo Stud-1/4NPTF air fittings, 3/4-16UNF bolt/stud, 1pcs ×3/8-16UNC threaded hole
    5. The screw center distance: 140mm

    6. Bottom plate mounting threads: 2pcs × 3/8-16UNC

    7. The screw center distance: 157.5mm

    8. Top plate diameter: 231mm

    9. Bottom plate diameter: 231mm

    10. Bumper: Yes

    11. Girdle hoop: two pieces



    Cross Reference

    Brand

    OEM No. reference

    Firestone

    W01-358-7995; W013587995; W01 358 7995

    WO1-358-7995; WO13587995; WO1 358 7995

    Firestone style 38

    Contitech

    FT 330-29 547; FT 330-29547; FT 33029547

    FT330-29 547; FT330-29547; FT33029547

    64573

    Goodyear3B12-329; 3B12 329; 3B12329
    Triangle4757; 4703
    Watson&ChalinAS-0048-1F; AS 0048 1F; AS00481F
    Euclid/Meritor After marketE-FS7995; E FS7995; EFS7995

    Features & Benefits


    Bellows are made of special elastomer with outstanding dynamic properties and long service life
    Individual components are tuned together for a perfectly harmonized system, ensuring optimal suspension characteristics
    Springs have passed servo-hydraulic and durability tests for almost all load conditions
    Simple and precise fittings for faster installation and less downtime

    Packing Details


    Product model: 3B7995

    Net weight: 6.519kg

    Gross weight: 7.131kg

    Box: Netural strong cartons or as customers' requirements

    Shipping ways: If the quantity is small, we ship them by express.

    If the quantity is big, we ship them by sea/by train

    Also, we could ship the goods as customers' request.


    Other types of triple convoluted air spring we have


    Guomat No.

    Cross Reference

    3B7996

    Firestone : W01-358-7996; W013587996; WO1-358-7996; W013587996/38
    Contitech : FT 330-29 520; FT330-29520
    Goodyear : 3B12-335; 3B12335

    Goodyear Bellow Number: 578933100
    Triangle : 6334/4520

    Granning/Tuthill : 8221

    3B8006

    Firestone : W01-358-8006; W013588006; WO1-358-8006; WO13588006
    Contitech : FT 330-29 430; FT330-29430
    Goodyear : 3B12-304; 3B12304

    Goodyear Bellow number:578933100
    Triangle : 6334/4430

    Leland: Sc2132

    Arvin Meritor: 200620

    Susperior

    3B8016

    Firestone : W01-358-8016; W013588016; WO1-358-8016; WO13588016
    Contitech : FT 330-29 433

    Triangle : 6334/4433

    Ridewell : 1003588016C

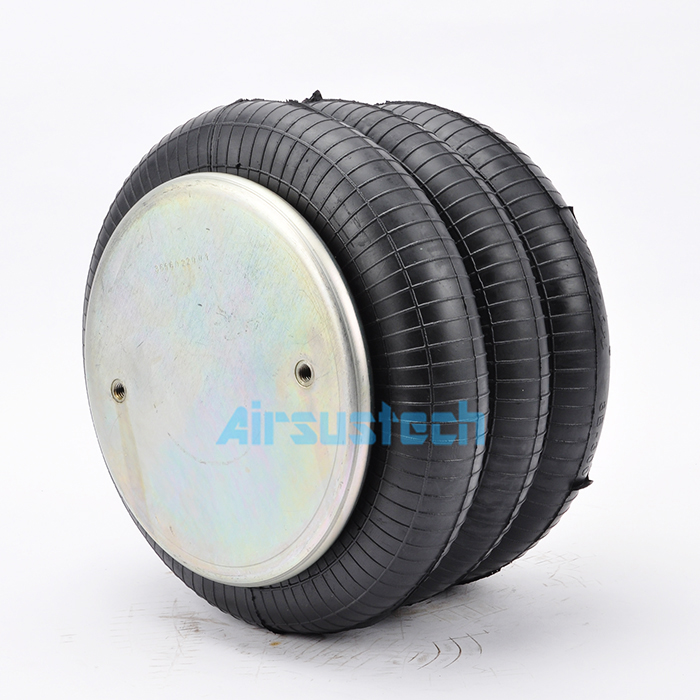

    The picture of air spring/air bellow assy/air shocks/air balloon
