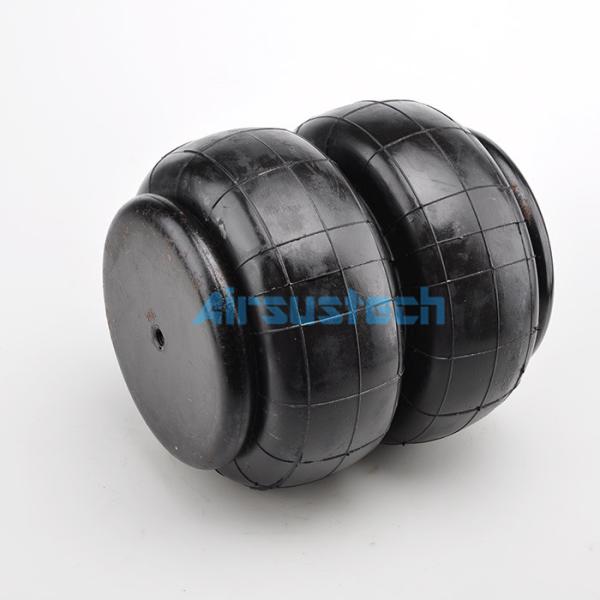

    Ridewell 1003587437C Air Suspension Spring Neway 90557015 Double Convoluted Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7437
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Ridewell 1003587437C Air Suspension Spring Neway 90557015 Double Convoluted Air Bag

    Air Suspension Spring Ridewell 1003587437C Neway 90557015 Double Convoluted Air Bag


    Product Information


    Net weight: 1.994kg

    Name: Air spring, air suspension, air suspension spring, air bag,etc

    Delivery time: 3 working days if we have stocks

    Ship from: Guangzhou, China

    Ship to: Worldwide



    Specifications and Tecnical Parameters


    1. Height: 203mm
    2. Top Plate Width: 115mm
    3. Base Width: 115mm

    4. Rubber bellow diameter: 152mm

    5. Air Inlet/Air fittings/ Portsize: 1/2-14NPT

    6. Top plate mounting threads qty: 2pcs×3/8-16UNC

    The distance between the mounting threads: 44.5mm

    7. Bottom plate mounting threads qty: 1pcs×3/8-16UNC

    The mounting thread is in the center
    8. Type: Double Bellows


    Cross Reference


    Ridewell

    1003587437C

    Neway

    90557015


    Air spring structure


    The air spring is a non-metallic spring that fills a flexible rubber bladder with air with a certain pressure and uses the compressibility of the air to achieve elastic effects. Air springs are mainly divided into two types: capsule air springs and membrane air springs.

    In today's mechanical design process, air springs have long been treated as standard parts like gears, and the corresponding air springs can be selected according to the weight of the load and the geometric installation size.


    Characteristics of air spring


    (1) The elastic coefficient of the air spring is variable, and as the applied load increases, the elastic coefficient also increases. The air spring can design various effect curves to meet various performance requirements because the air spring has a nonlinear effect.

    (2) The rubber body of the air spring is relatively light, and the mass of the air is also very small. Most of the weight of the air spring comes from the upper cover and the lower cover. Unlike the steel spring, the metal mass is relatively heavy.

    (3) The bearing capacity of the air spring can be adjusted according to the inflation pressure in the rubber airbag. For the same air spring, different bearing capacity requirements can be met by adjusting the inflation pressure.

    (4) Since the air spring uses air as the elastic medium, when compressed, the internal friction is small, so the vibration isolation effect is relatively good. In addition, air springs have a good ability to cancel noise because air and rubber are relatively weak in transmitting sound.

    (5) The anti-fatigue ability of the air spring is relatively strong. The experiment shows that the number of stress cycles that the leaf spring can withstand under normal circumstances is 500,000 to 600,000 times, while the general air spring can reach about 3 million times. High-quality air The number of stress cycles that the spring can withstand can reach more than 5 million times. Air springs are therefore highly effective in resisting strain.


    The picture of air spring/air bellow assy/air shocks/air balloon
