Firestone Airide W01-358-6799 Replacement Air Spring Contitech FD 530-35 543 Double Convoluted Pneumatic Spring

Specifications and Tecnical Parameters: 2B6799

Max. Height: 391mm/ 19.39"

Min. Height: 104mm/4.09''
Top Plate Width: 289mm/11.37"
Base Width: 289mm/ 11.37"

Max. OD: 406mm/ 159.8''

Top plate bolt/stud qty: 4pcs

The distance between the studs: 159mm/6.26''

Bottom plate bolt/stud qty: 4pcs

The diatance between the studs: 159mm/6.26''
Type: Double Bellows

Cross Reference

About air spring

In daily production, for the purpose of improving product quality, maintaining equipment status, and reducing production noise, more and more manufacturers have begun to consider how to improve the shock absorption effect of equipment. Air springs are the best choice.

Excellent shock absorption ability: Air spring shock absorbers have the most excellent vibration isolation ability among all types of vibration shock absorbers. The natural frequency of the system can be as low as 1 Hz. If an additional air storage chamber is installed, the natural frequency of the system can be even lower. To achieve the same damping effect of the traditional coil spring shock absorber, its static deformation is required to be at least 230 mm.

Extend the service life of equipment: Because of its special shock absorption principle, the air spring shock absorber has great advantages in the maintenance of equipment. When the traditional steel spring is impacted, it will produce self-shock phenomenon, and the frequency of self-shock It can be directly transmitted to the equipment, causing loosening and damage to the equipment. The shock absorption effect of the air spring is much better, and it is even possible to achieve complete shock absorption, which significantly reduces the maintenance cost of the equipment and prolongs the service life of the equipment.

Wide range of action: The vibration isolation load of each installation point of the air spring shock absorber ranges from 10KG to more than 10 tons, which can meet various production requirements.

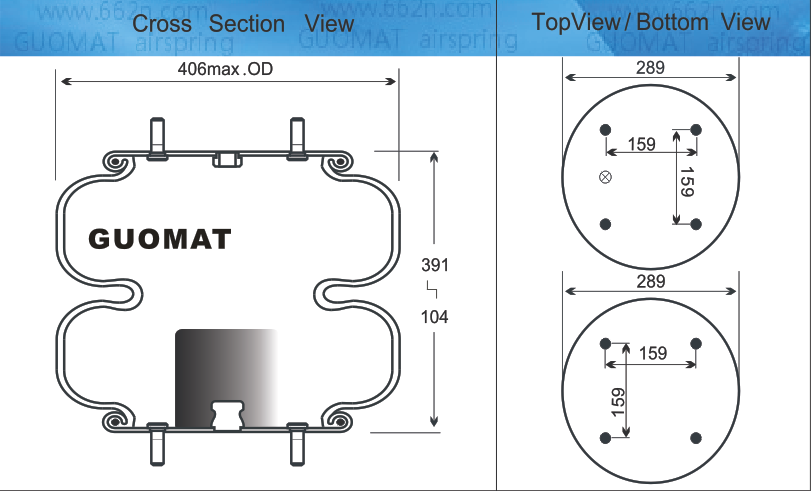

The picture of 2B6799 air spring/air bellow assy/air shocks/air balloon

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
