Firestone W01-358-7409 Industrial Air Spring Contitech FD 330-22 367 Rubber Air Actuator

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Firestone W01-358-7409 Industrial Air Spring Contitech FD 330-22 367 Rubber Air Actuator from wholesalers

    Buy cheap Firestone W01-358-7409 Industrial Air Spring Contitech FD 330-22 367 Rubber Air Actuator from wholesalers
    • Buy cheap Firestone W01-358-7409 Industrial Air Spring Contitech FD 330-22 367 Rubber Air Actuator from wholesalers
    • Buy cheap Firestone W01-358-7409 Industrial Air Spring Contitech FD 330-22 367 Rubber Air Actuator from wholesalers

    Firestone W01-358-7409 Industrial Air Spring Contitech FD 330-22 367 Rubber Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7409
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-358-7409 Industrial Air Spring Contitech FD 330-22 367 Rubber Air Actuator

    Industrial Air Spring Firestone W01-358-7409 Contitech FD 330-22 367 Rubber Air Actuator


    Product Information

    OE NO.: FD330-22 367
    Warranty: 12 Months
    Place of Origin: Guangdong, China
    Brand Name:Netural or as customers' request
    Type: Air spring
    Certification: ISO
    Sample: Available
    Payment term: T/T, Western Union, Paypal or Others
    Operation:Gas-filled
    Usage: For industrial machines or others
    Logo: Guomat or customized
    Service offered: OEM/ buying label service


    Cross reference

    Air spring supplier: Firestone
    Supplier number: W01-358-7409; W013587409; W01 358 7409; WO1-358-7409; WO13587409; WO1 358 7409

    Air spring supplier: Contitech
    Supplier number: FD 330-22 367; FD 330 22 367; FD 330-22367; FD330-22 367; FD330-22367; FD33022367

    Air spring supplier: Triangle
    Supplier number: 6316; 4367

    Air spring supplier: Goodyear
    Supplier number: 2B12-319; 2B12 319; 2B12319
    Goodyear Bello Number: 578923309; 578 92 3 309; 578-92-3-309
    Air spring supplier: Leland
    Supplier Number: Sc2074; SC2074
    Air spring supplier: Navistar
    Supplier Number: 1685178C1
    Air spring supplier: SAF Holland
    Supplier Number: 57007409
    Air spring supplier: Watson&Chalin
    Supplier number: As0093; AS0093

    Specifications and Tecnical Parameters: 2B7409

    1. Max. OD

    325mm

    2. Top plate Mounting Thread Qty

    2pcs, Single Combo Stud, one bolt/stud
    3. The distance between the combo stud and stud157mm
    4. Bottom plate bolt/stud Qty2pcs
    5. The distance between the two bolts/studs on bottom plate157mm

    6. Cover plate diameter(width)

    231 mm

    7. Min. Height

    104mm

    8. Max. height

    305mm

    9. Bumper block/bumper

    Yes

    10. Belt loop/Girdle ring/Girdle hoop

    one piece


    Air Spring Application


    Rubber air springs are mainly used in the papermaking machinery industry for stroke adjustment and tension control in correctors, calenders, presses, scrapers, wires and other parts. In addition, they are also used in automobiles, construction, chemical, Mechanism, installation and military industries, all parts that need shock absorption, shock isolation and stroke control.


    Features and Benefits


    Manufactured following strict OE standards to work like the original component
    Engineered using the latest technology to ensure the product lasts longer in service
    Features a factory-like fit for hassle-free installation
    Made of high-quality components for durability, reliability, and performance

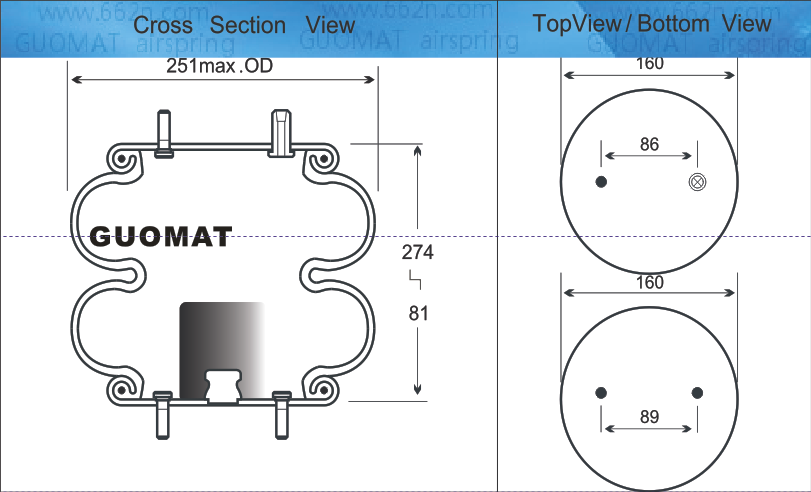

    The picture of 2B7409
