    Firestone W01-358-7410 Double Convoluted Air Spring Contitech FD 330-22 331 Single Combo Stud Airide Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7410
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-358-7410 Double Convoluted Air Spring Contitech FD 330-22 331 Single Combo Stud Airide Spring

    Double Convoluted Firestone W01-358-7410 Contitech FD 330-22 331 Single Combo Stud Airide Spring


    Product Information

    Warranty: 12 Months
    Place of Origin: Guangdong, China
    Brand Name:Netural or as customers' request
    Type: Air spring
    Certification: ISO
    Sample: Available
    Payment term: T/T, Western Union, Paypal or Others
    Operation:Gas-filled
    Usage: For industrial machines or others
    Logo: Guomat or customized
    Service offered: OEM/ buying label service


    Cross reference

    Air spring supplier: Firestone
    Supplier number: W01-358-7410; W013587410; W01 358 7410; WO1-358-7410; WO13587410; WO1 358 7410

    Air spring supplier: Contitech
    Supplier number: FD 330-22 331; FD 330 22 331; FD 330-22331; FD330-22 331; FD330-22331; FD33022331

    Air spring supplier: Goodyear
    Supplier number: 2B12-406; 2B12 406; 2B12406
    Goodyear bellow number: 578923 309; 578923309; 578 92 3 309; 578-92-3-309; 578923305
    Air spring supplier: Triangle
    Supplier number: 6316; 4331

    Air spring supplier: Freightliner
    Supplier number:16-11378-000; 16 11378 000; 1611378000
    Air spring supplier: Brake&Wheel
    Supplier Number: M3508
    Air spring supplier: Dayton
    Supplier Number: 3547410
    Air spring supplier: Leland
    Supplier Number: Sc2023; SC2023
    Air spring supplier: Navistar
    Supplier number: 5547921C1
    Air spring supplier: Hendrickson
    Supplier number: S13036/S10170
    Air spring supplier: SAF Holland
    Supplier number: 57007410
    Air spring supplier: Ridewell
    Supplier number: 1003587410C
    Air spring supplier: Watson&Chalin
    Supplier number: As0136; AS0136

    Specifications and Tecnical Parameters: 2B7410

    1. Max. OD

    325mm

    2. Top plate Mounting Thread Qty

    2pcs, Single Combo Stud- 1/4NPTF Air Fittings and 3/4-16UNF Stud, one bolt/stud- 1/2-13UNC
    3. The distance between the combo stud and stud157mm
    4. Bottom plate threaded hole Qty2pcs ×3/8-16UNC
    5. The distance between the two bolts/studs on bottom plate157mm

    6. Cover plate diameter(width)

    231 mm

    7. Min. Height

    104mm

    8. Max. height

    305mm

    9. Bumper block/bumper

    Yes

    10. Belt loop/Girdle ring/Girdle hoop

    one piece


    Packing Details


    Product No.: Guomat 2B7410

    Net weight: 6.4kg

    Gross weight: 6.98kg

    Box weight: 0.58kg

    Packing size: 33*33*22cm

    Packing quantity: 1

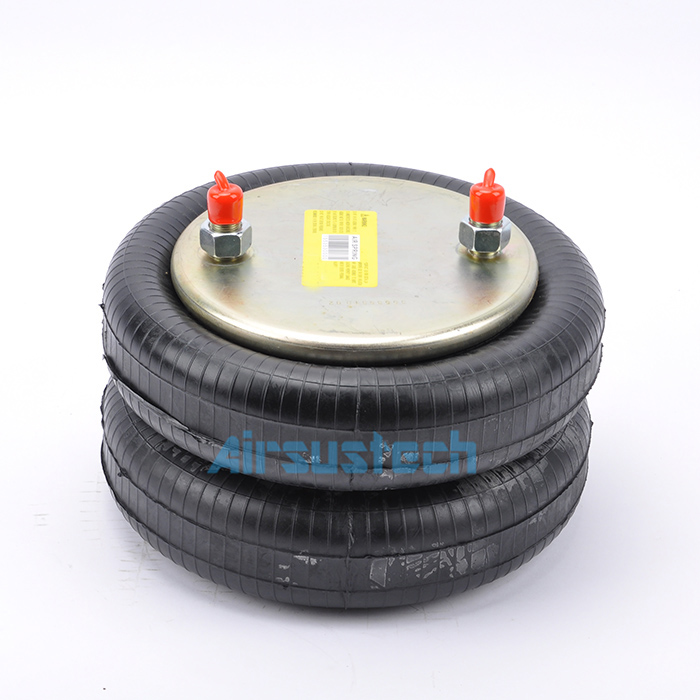

    The picture of 2B7410
