    130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 130118J-2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

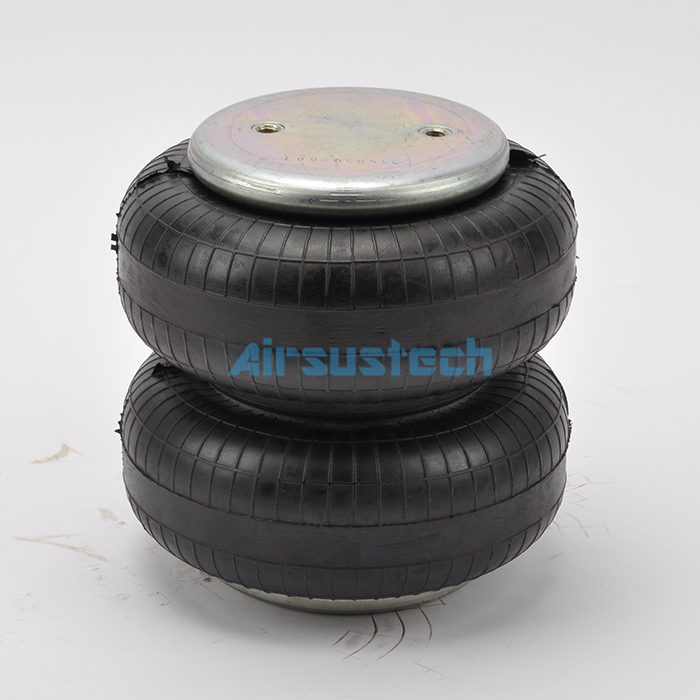

    130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment

    130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment


    Cross Reference


    130118J-2

    130118J2

    130118J 2


    Specifications and Detailed Technical Parameters


    1. Top plate

    2pcs × M10× 1.5 Blind Nuts, the screw center distance is 44.5mm


    2. Bottom plate

    2pcs × M10 ×1.5 Blind Nuts, the screw center distance is44.5mm


    3. Air Inlet/Air fittings/ Air hole

    Rc1/4, Centered


    4. Height: 111mm

    Working Stroke: 65mm-132mm


    5. Rubber Bellow diameter: 132mm


    6. Cover plate diameter

    115mm Top Cover Plate

    115mm Bottom Plate


    7. Without Rubber Bumper


    8. One piece of Girdle hoop


    Other type of double convoluted air spring we could offer


    Model

    Product details

    168156J-2

    163mm height

    75-170mm working stroke

    Rc1/4 centered air inlet/air hole

    2XM10X1.5 mounting threads on top plate

    70mm distance between the two mounting threads on top plate

    2XM10X1.5 mounting threads on bottom plate

    70mm distance between the two mounting threads on bottom plate

    135mm top cover plate diameter

    135mm bottom cover plate diameter

    Without bumper

    1pcs girdle hoop/girdle ring


    Product Photo
