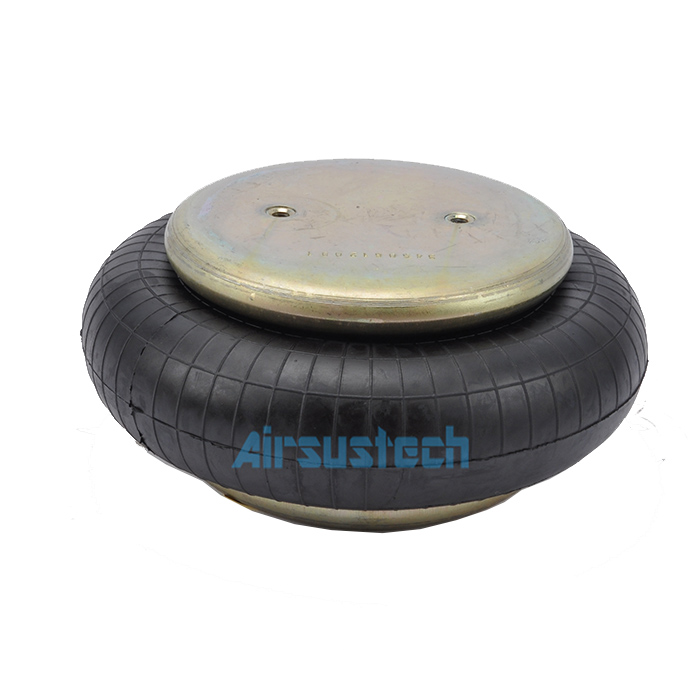

Replace Orice M-25E M25E One Convoluted M10 PT1/4 Gas Hole Air Spring

Cross Reference

Specifications and Detailed Technical Parameters

1. Top plate

2pcs × M10× 1.5 Blind Nuts, the screw center distance is 44.5mm

2. Bottom plate

2pcs × M10 ×1.5 Blind Nuts, the screw center distance is44.5mm

3. Air Inlet/Air fittings/ Air hole

PT1/4, Centered

4. Height

50mm Min. Height

130mm Max. Height

5. Rubber Bellow diameter

Max. 203mm

6. Cover plate diameter

115mm Top Cover Plate

115mm Bottom Plate

7. Without Rubber Bumper

8. Without Girdle hoop

Air Spring Application

The air spring uses the compressed air inside the capsule to bear the load, and has the characteristics of variable stiffness, low natural vibration frequency, controllable height, and good noise reduction and vibration isolation performance.
With the continuous improvement of social requirements, we are constantly pursuing the control accuracy of equipment, the safety of equipment use, the flexibility of equipment use, stability, etc. The advantages of air springs have gradually been discovered by everyone, and have become a new breakthrough in many industries. , Guomat air spring has achieved excellent improvement in the performance improvement of many industrial equipment, such as: industrial washing machine with air shock absorption, after the air spring shock absorption is modified, it can effectively reduce the noise generated by the washing machine when it is working And vibration, get rid of the predicament that industrial washing machines need to "lay the foundation" in the past; the air spring rectifier can better adjust the control distance. The deflection correction spring with adjustable softness and hardness is suitable for more types of deflection correction objects and achieves good deflection correction effect. Based on its unique advantages and excellent performance, air springs have gradually penetrated into many industries such as automobiles, processing and manufacturing, and shock absorption.

Air Springs and Maintenance

During the use of the product, the air spring does not need to be deliberately maintained. It can be cleaned and cleaned once a year. It needs to be dealt with in time. If there is a slow air leakage at the joint of the air pipe joint, the shock absorption effect may be reduced. Sustained low vibration isolation may affect the working accuracy of the equipment.

The use environment of air spring

The best environment for air springs is indoor use, the ambient temperature is kept at room temperature, and the environment is preferably low dust, low humidity and low oil fume. Air springs will have a better service life in this environment. Use in harsh environments will accelerate the aging of the air spring diaphragm.

Product Drawing

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
