Brand Name : | AIRSUSTECH |
Model Number : | 1B5-2 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Goodyear 1B5-2 579 913 502 Helper Air Bag One Convoluted 3/4-14NPTF Air Inlet Pneumatic Spring
Cross Reference
Air spring supplier: Goodyear
Supplier number: 1B5-2
Specifications and Detailed Technical Parameters
1. Height | 120mm |
2. Air Inlet | 3/4-14NPTF |
3. Threaded hole on the top plate | 2×M10 |
4.The distance between the two threaded holes | 44mm |
5. Threaded hole on the bottom plate | 2×M10 |
6.The distance between the two threade holes | 44mm |
7. Top plate cover plate diameter | 85mm |
8. Bottom plate cover plate diameter | 85mm |
9. Rubber bumper | Without |
10. Girdle hoop | Without |

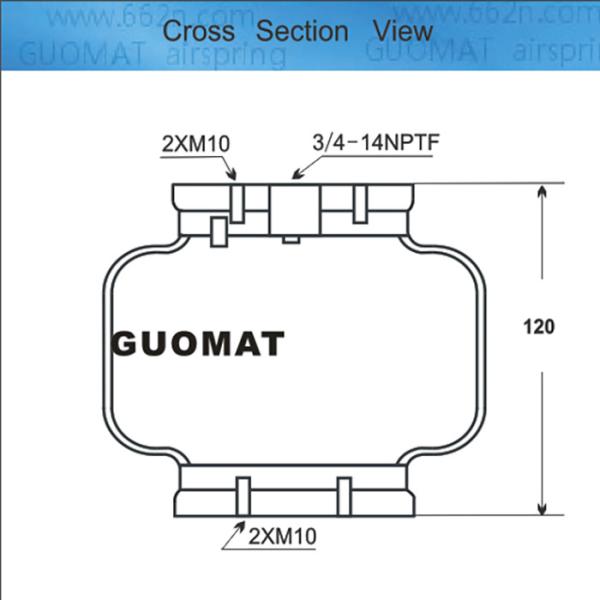

Product Drawing
Other types of goodyear air spring/ air helper bag we could offer
Goodyear Bellow Number | Goodyear Part Number |
One Convoluted | |
578-91-3-301 578 91 3 301 578913301 | 1B12-301 |
1B12-305 | |
1B12-306 | |
1B12-313 | |
1B12-322 | |
578-91-3-351 578 91 3 351 578913351 | 1B14-350 |
1B14-351 | |
1B14-373 | |
578-91-3-352 578 91 3 352 578913352 | 1B14-358 |
Double Convoluted | |
578-91-3-310 578 91 3 310 578913310 | 2B12-305 |
2B12-317 | |
2B12-324 | |
578-92-3-202 578 92 3 202 578923202 | 2B9-200 |
2B9-201 | |
2B9-206 | |
2B9-210 | |
2B9-216 | |
2B9-225 | |
2B9-230 | |
2B9-240 | |
2B9-244 | |
2B9-245 | |
578-92-3-206 578 92 3 206 578923206 | 2B9-218 |
2B9-250 | |
2B9-251 | |
2B9-252 | |
2B9-253 | |
2B9-254 | |
2B9-255 | |
2B9-265 | |
2B9-270 | |
578-92-3-208 578 92 3 208 578923208 | 2B9-266 |
2B9-607 | |
578-92-3-211 578 92 3 211 578923211 | 2B9-229 |
2B9-239 | |
2B9-246 | |
2B9-280 | |
2B9-288 | |
2B9-296 | |
2B9-606 | |
2B9-611 | |
2B9-614 | |
578-92-3-217 578 92 3 217 578923217 | 2B9-495 |
578-92-3-250 578 92 3 250 578923250 | 2B10-226 |
578-92-3-309 578 92 3 309 578923309 | 2B12-300 |
2B12-304 | |
2B12-307 | |
2B12-309 | |
2B12-313 | |
2B12-318 | |
2B12-319 | |
2B12-320 | |
2B12-340 | |
2B12-406 | |
2B12-410 | |
2B12-411 | |
2B12-412 | |
2B12-424 | |
2B12-425 | |
2B12-426 | |
2B12-427 | |
2B12-429 | |
2B12-432 | |
2B12-463 |
![]() |
