    Double Convoluted Air Spring Assy Firestone W01-358-6960 Contitech FD 200-25 507 In Planter Or Seeder

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6960
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Double Convoluted Air Spring Assy Firestone W01-358-6960 Contitech FD 200-25 507 In Planter Or Seeder

    Double Convoluted Firestone W01-358-6960 Contitech FD 200-25 507 Air Spring Assy Used In Planter Or Seeder


    Cross reference


    Air spring supplier: Firestone

    Supplier number: W01-358-6960; W013586960; W01 358 6960; WO1-358-6960; WO13586960; WO1 358 6960


    Air spring supplier: Contitech

    Supplier number: FD 200-25 507; FD 200 25 507; FD 200-25507; FD200-25 507; FD200-25507; FD20025507

    Cross reference: 161339


    Air spring supplier: Triangle

    Supplier number: 6332/4507


    Air spring supplier: Granning
    Supplier number: 7025

    Air spring supplier: Tuthill
    Supplier number: 7025

    Part Number: ABSP2B12RA-6960
    Condition: New
    Double Convoluted Air Bag
    Firestone Bellows Number: 20F-2
    Firestone Part Number: W01-358-6960


    Specifications and Tecnical Parameters: 2B6960


    1. Max. OD

    262mm

    2. Air hole/air inlet/air fitting air hole/air inlet

    offset, 44.5mm

    3. Cover plate diameter(width)

    160 mm

    4. The serew center distance

    89mm

    5. Min. Height

    95mm

    6. Max. height

    325mm

    7. Bumper block/bumper

    Yes

    8. Belt loop/Girdle ring/Girdle hoop

    one piece


    The type of air spring can be used in planter or seeder


    This air spring assy can be used in agricultural industry, such as planter or seeder. It is more and more common to use air spring. It has following feature.

    Row unit downforce
    Long cycle life
    Dirt resistant

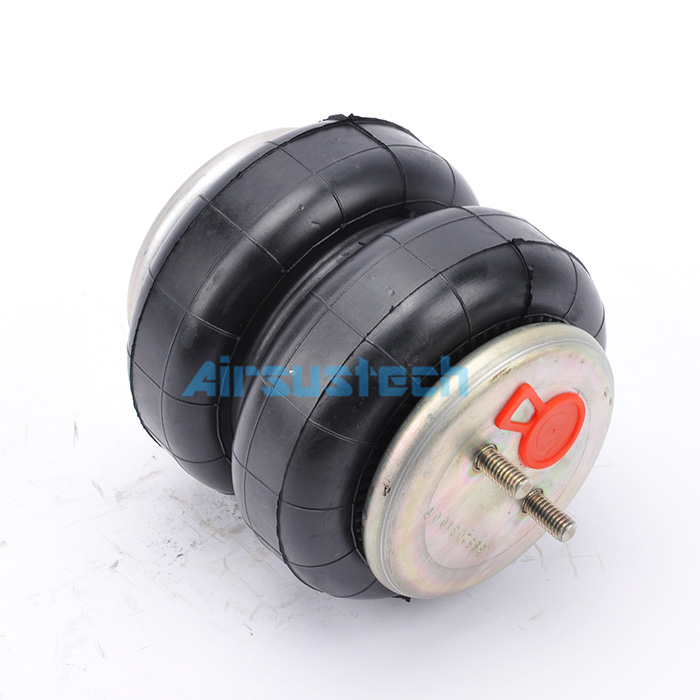

    The picture
