    Double Convoluted Rubber Air Spring Goodyear 2B9-250 Original Helper Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B9-250
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Double Convoluted Rubber Air Spring Goodyear 2B9-250 Original Helper Air Bag

    Goodyear 2B9-250 Original Helper Air Bag Double Convoluted Rubber Air Spring


    Cross Reference


    Goodyear bellow number: 578-92-3-206; 578923206; 578 92 3 206

    Goodyear part number: 2B9-250; 2B9 250; 2B9250

    Bellows Air Spring | SUSPENSION PRODUCTS & PARTS | SUPER CUSHION| Air Spring Helper Kit Replacement Components

    AUTOMANN

    ABSP2B12RA-6943
    CONTI

    64549
    FD 200-25 426
    FIRESTONE
    6943
    W013586943; W01 358 6943; W01-358-6943;WO13586943; WO1-358-6943; WO1 358 6943
    LOAD GUARD
    SC2122
    NEWAY
    905-57-237; 905 57 237; 90557237

    SUSPENSIONS INC.
    200835
    TRIANGLE
    4426
    TRP
    AS69430
    WATSON& CHALIN
    AS-0041; AS 0041; AS0041

    ENIDINE INC.
    YI-2B9-250


    Specifications and Detailed Technical Parameters:goodyear 2B9-250


    Bellow Type: Double

    Top Plate Hole/Stud Qty: 2
    Top Plate Dia: 6.4
    Top Plate C to C Diameter: 3.5
    Bottom Plate Hole Stud Qyt: 2
    Bottom Plate Dia: 6.4
    Bottom Plate C to C Diameter: 3.5
    Bottom Plate Part #:
    Bottom Plate Alignment: Parallel
    Bumper: No
    Bracket:
    Min Height: 3.5
    Max Height: 12.2

    Air Inlet: 1/4 OS


    Other Double Convoluted Type Goodyear Air Spring we could supply


    Part NumberUsable StrokeMax Dia @ 100 psi InMin Ext Height InchesMax Ext Height InchesBumperAir Fitting Size (in)
    2B6-5304.56.52.87.7NO1/4
    2B6-5314.56.52.87.7NO1/4
    2B6-5324.36.53.47.7YES1/4
    2B6-5355..97.02.89.1NO1/4
    2B6-5365.77.03.49.1YES1/4
    2B7-5406.58.02.59.0NO1/4
    2B7-5416.58.02.59.0NO1/4 OS
    2B7-5425.78.03.39.0YES1/4 OS
    2B7-5456.58.02.59.0NO1/2
    2B7-5466.58.02.59.0NO3/4
    2B8-5507.18.62.810.3NO1/4
    2B8-5527.18.62.810.3NO3/4
    2B8-5537.18.62.810.3NO1/4
    2B8-5546.88.63.510.3YES1/4
    2B9-2008.010.33.511.5NO1/4 OS
    2B9-2017.710.33.811.5YES1/4 OS
    2B9-2048.010.33.511.5NO1/2 OS
    2B9-2057.710.33.811.5YES1/2 OS
    2B9-2087.710.33.811.5YES3/4 OS
    2B9-2168.010.33.511.5NO3/4 OS

    A pneumatic device that converts the energy of compressed air into pressure.

    A cylinder is a mechanical device that applies force by converting potential energy from compressed gas into kinetic energy.

    Pneumatic technology is the use of compressed air to operate different mechanisms. In industry, it is used in a variety of processes and applications.

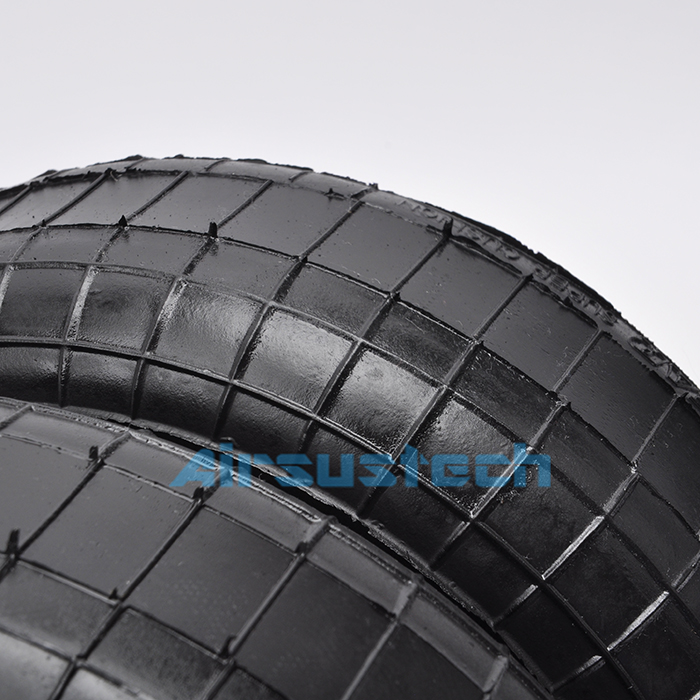

    The related picture of GOODYEAR 2B9-250
