    Goodyear Helper Air Bag 1B8 850 Super Rubber Cushion One Convoluted Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8-850
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear Helper Air Bag 1B8 850 Super Rubber Cushion One Convoluted Air Spring

    Goodyear Helper Air Bag 1B8 850 Super Rubber Cushion One Convoluted Original Air Spring


    Product Identifiers


    Brand: Goodyear
    Type:Air Spring


    Cross Reference


    Airspring Supplier: Goodyear

    Reference: 579-91-3-530; 579-91-3-530; 579913530

    Supplier Number: 1B8-850, 1B8 850, 1B8850,


    Specifications and Detailed Technical Parameters: Goodyear 1B8-850


    Force F [lbf]
    Pressure p [psi]406080100Vol. V [in.³]
    H 4.50 in./114.3MM728113015701970110
    H 4.00 in./101.6MM905140019402390100
    H 3.50 in./88.9MM105016102240274090
    H 3.00 in./76.2MM117017702450302075
    H 2.50 in./63.5MM127019002630326057


    Vibration isolation - dynamic characteristics

    Pressure p [psi]406080100120Vol. V [in.³]
    Force (load) F [lbf]8011,2401,7002,1302,530110
    Spring rate c [lbf/in]7099491,1901,4301,670110
    Natural Frequency f0 [Hz]2.92.82.72.62.6110
    Design height H: recommended 4.33 inch, minimum 3.54 inch

    Other types of original goodyear air spring we could offer


    1B5-500; 1B5-502; 1B5-503; 1B5-510; 1B5-512; 1B5-520; 1B5-521; 1B6-530; 1B6-531; 1B6-532; 1B6-533; 1B6-535; 1B6-536; 1B7-540; 1B7-541; 1B7-542; 1B7-544; 1B8-550; 1B8-552; 1B8-553; 1B8-560; 1B8-562; 1B8-563; 1B8-564; 1B9-201; 1B9-202; 1B9-204; 1B9-207; 1B9-208; 1B12-301; 1B12-304; 1B12-305; 1B12-313; 1B12-318; 1B14-350; 1B14-351; 1B14-352; 1B14-353; 1B14-362; 1B14-364; 1B15-375; 1B15-377; 1B15-378; 2B6-530; 2B6-531; 2B6-532; 2B6-533; 2B6-535; 2B7-540; 2B7-541; 2B7-542; 2B7-546; 2B8-550; 2B8-552; 2B8-553; 2B8-554; 2B9-200; 2B9-201; 2B9-204; 2B9-205; 2B9-208; 2B9-216; 2B9-240

    Goodyear 1B5-800 (579-91-2-800)
    Goodyear 1B5-800 (579-91-2-800)
    Goodyear 1B6-833 (579-91-2-833)
    Goodyear 1B6-833 (579-91-2-833)
    Goodyear 1B8-850 (579-91-2-850)
    Goodyear 1B12-318 (579-91-2-318)
    Goodyear 1B12-318 (579-91-2-318)

    Goodyear 1B5-500
    Goodyear 1B5-502
    Goodyear 1B5-503
    Goodyear 1B5-510
    Goodyear 1B5-512
    Goodyear 1B12-313
    Goodyear 1B12-301
    Goodyear 1B12-304
    Goodyear 1B12-305
    Goodyear 2B9-223
    Goodyear 2B12-343
    Goodyear 2B9-200

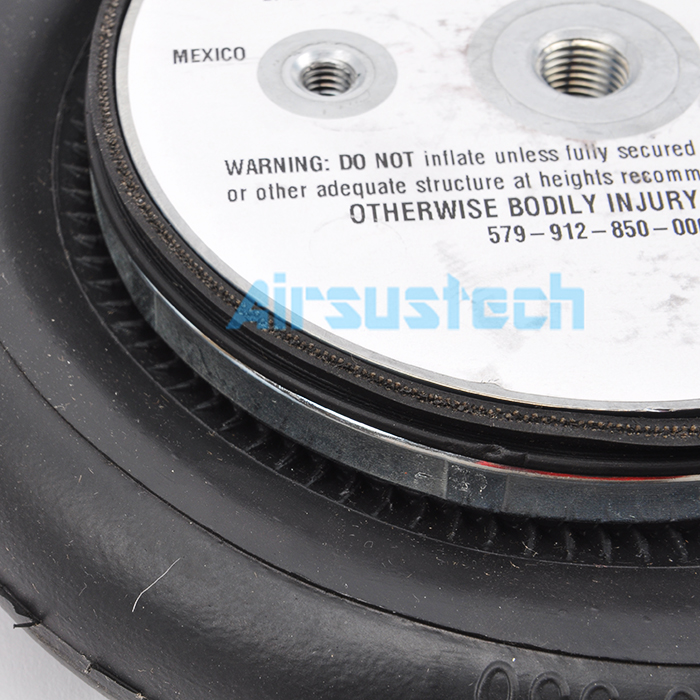

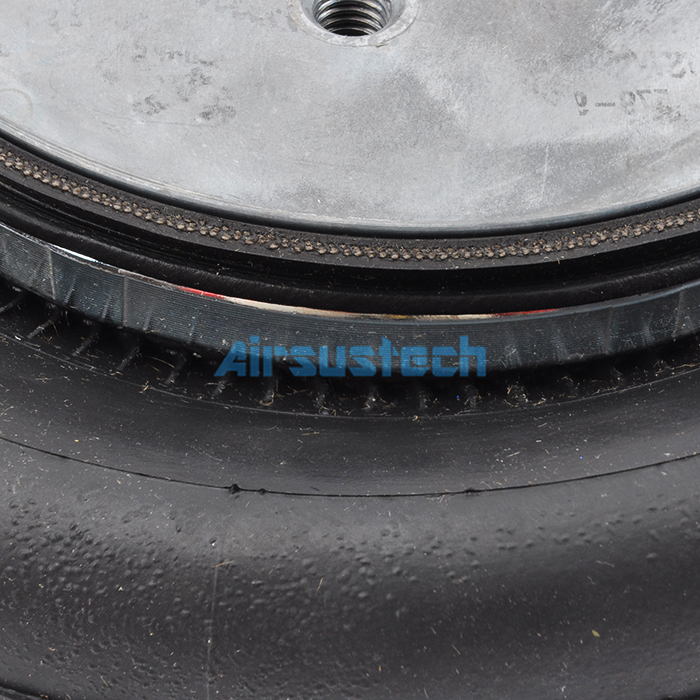

    The related picture of 1B8-850
