    YI-1B12-313 1B12-313 1B12 313 Industrial Air Springs One Covoluted Pneumatic Drive Airbag Buffer

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B12-313
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    YI-1B12-313 1B12-313 1B12 313 Industrial Air Springs One Covoluted Pneumatic Drive Airbag Buffer

    EINDINE GOODYEAR Industrial Air Springs YI-1B12-313 1B12-313 1B12 313 One Covoluted Pneumatic Drive Airbag Buffer


    Cross Reference


    Air Spring Supplier: Goodyear

    Supplier Number: 1B12-313; 1B12 313; 1B12313

    Bellows : 578-91-3-301

    Air Spring Supplier: EINDINE

    Supplier Number: YI-1B12-313; YI 1B12 313; YI1B12313

    Air Spring Supplier: Firestone

    Supplier Number: W01-358-7008; W01 358 7008; W013587008

    Air Spring Supplier: ContiTech

    Supplier Number: 64596, FS 330-11 474; FS330-11 474; FS330-11474

    Air Spring Supplier: Neway

    Supplier Number: 90557226


    Specifications and Detailed Technical Parameters: Goodyear 1B12-313


    1/4'' offset air fitting, 2.87'' offset, 3/8''-16UNC-2B×5/8'' deep, 13.2'' Max. OD at 100 PSIG, 9.0'' cover plate, single bellow type


    Constant pressure characteristic


    Assembly height(in)Volume at 100psig(in3)20PSIG40PSIG60PSIG80PSIG100PSIG
    7.26184401050180027003600
    6.55698001800280039005100
    6.053110502200310046006000
    5.649711692462365850776574
    5.548912002500380052006700
    5.044513502800420057007300
    4.540014503000450061007800
    4.035415003100480065008200
    3.531116003300500068008500
    3.026317003400510070008800
    2.219017103514531570919143

    Other types of goodyear one convoluted air spring and technical parameters reference


    Part Number

    Usable Stroke

    Max Dia @ 100 psi In

    Min Ext Height Inches

    Max Ext Height Inches

    Bumper

    Air Fitting Size (in)

    1B12-305

    4.6

    13.2

    2.6

    7.2

    YES

    3/4 OS

    1B12-313

    4.9

    13.2

    2.3

    7.2

    NO

    1/4 OS

    1B14-350

    4.9

    15.2

    2.3

    7.2

    NO

    1/4 OS

    1B14-351

    3.0

    15.2

    4.2

    7.2

    YES

    1/4 OS

    1B14-352

    4.9

    15.2

    2.3

    7.2

    NO

    3/4 OS

    1B14-353

    3.0

    15.2

    4.2

    7.2

    YES

    3/4 OS

    1B14-362

    6.0

    15.9

    2.3

    8.3

    NO

    3/4 OS

    1B14-364

    6.0

    15.9

    2.3

    8.3

    NO

    1/4 OS

    1B15-375

    5.6

    17.5

    2.3

    7.9

    NO

    1/4 OS

    1B15-376

    3.7

    17.5

    4.2

    7.9

    YES

    1/4 OS

    1B15-377

    5.6

    17.5

    2.3

    7.9

    NO

    3/4 OS

    1B15-378

    3.7

    17.5

    4.2

    7.9

    YES

    3/4 OS

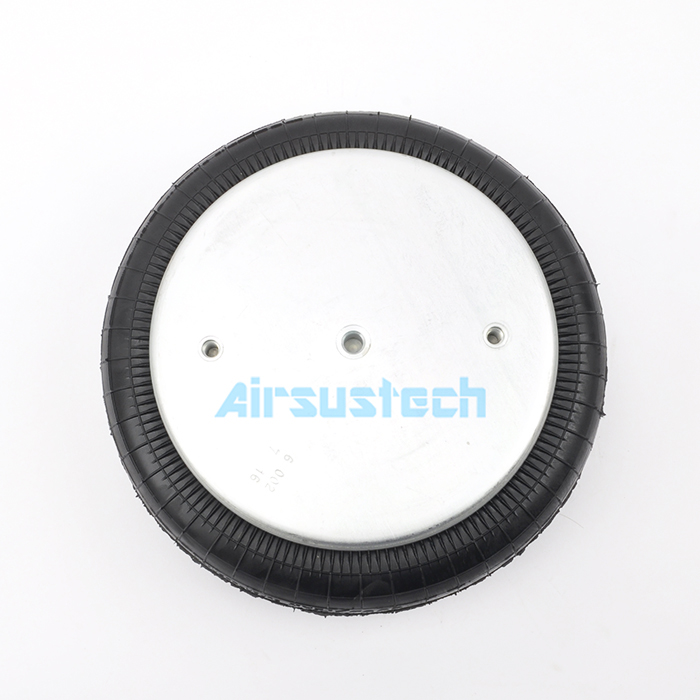

    The related picture of 1B12-313
