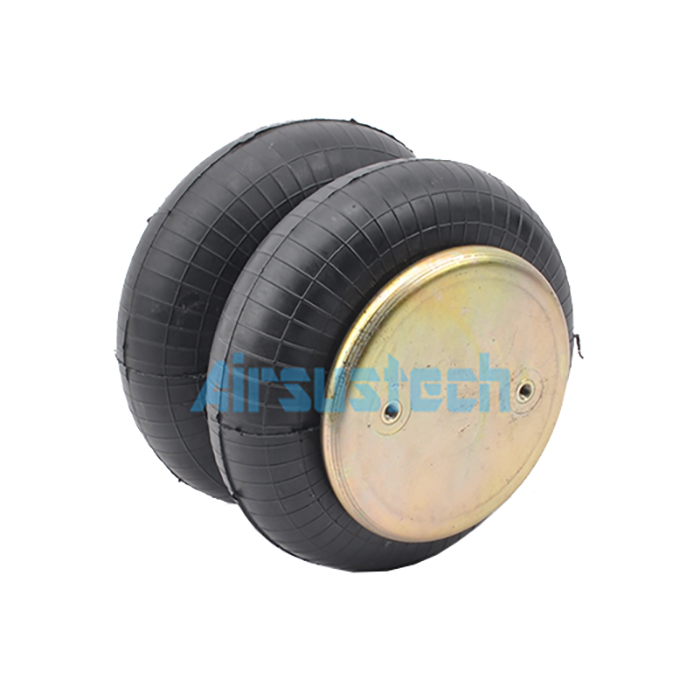

Airtech 113004(2B-220FB) 14002 Double Convoluted G3/4 Offset Air Inlet Industrial Air Spring

Cross Reference

FIT FOR: Fit: Airtech, Bosch, Festo

Air spring supplier : Airtech
Supplier Number: 113004, 2B-220FB, 2B220FB, 2B 220FB, 14002

Air spring supplier: Bosch

Supplier number: 822419043

Air spring supplier: Festo

Supplier number: EB-250-185; EB 250 185​; EB250185​

Air Spring spcifications and data parameters

Crimped, convoluted bellows, which attach the bellow to the bead plate by a permanent crimp in the plate. This type os air spring can provide good vibration isolation and linear/angular actuation.

Other Model Replacement we could offer

Airtech 140293

Airtech 111003

Airtech 14002

Airtech 1B-190FB; 1B190FB; 1B 190FB

Airtech 2B-225; 2B 225; 2B225

Airtech 2B-355; 2B 355; 2B355

Air Spring Composition

1. Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
2. Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
3. Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
4. Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
5. Girdle: Only found in air springs of convoluted design, separating the bellows chambers.
6. Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.

Applications

The air spring has impacted many industries like oil, logging, construction and manufacturing.

Air springs are widely utilized. Commonly as actuators in amusement park rides, packaging equipment, clutch systems, conveyor belts and scissor lifts, they also act as vibration insulators in centrifuges, commercial laundry machines, measuring and weighing machinery, and textile looms.

The reated picture of air springs/convoluted air spring/air bag/air balloon

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
