Brand Name : | AIRSUSTECH |
Model Number : | 2B7892 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Firestone W01-358-7892 WO13587892 Style 20 Double Convoluted Industrial Air Spring For Ridewell 1003587893C
Details
Cross Reference
Air spring supplier : Firestone
Supplier Number: W01-358-7892; W01 358 7892;
W013587892;WO1-358-7892; WO1 358 7892; WO13587892; w01-358-7892;
w01 358 7892; w013587892
Firestone Style 20
Firestone Style 20F
Air Spring supplier: Ridewell
Supplier Number: 1003587893C
Air Spring spcifications and data parameters: 2B7892
Type | Double Convolution Air Spring; 2-Ply Bellows |
Top Plate Stud/Bolt Qty | 2 |
Bottom Plate Stud/Bolt Qty | 2 |
The screw center distance on top plate | 86mm |
The screw center distance on bottom plate | 89mm |
Top and Bottom cover plate diameter | 160mm |
Min. height | 81mm |
Max. height | 274mm |
Max. OD | 251mm |
Girdle ring/Girdle hoop/Belt loop | one piece |
Bumper | With |
Style 20
Firestone W01-095-0009
PEGASO 5231/5236/5266
Vol-vo truck 0 365 431
Vol-vo truck 0 365 461
Vol-vo truck 6 882 797
Vol-vo truck 6882797
Vol-vo truck 8127152
20CT
Firestone W01-M58-6188
GRANNING 15668
20F
Firestone MERCEDES 942 320 60 21
HENDRICKSON HS 508264C
20F2
Firestone W01-M58-6183
YORK 506324/01
20F2
Firestone W01-M58-6891
SCANIA 1387283
20F2
Firestone W01-M58-7679
SCHMITZ 016 808
GRANNING 15670
ROR 2122 1356
DAIMLER TAS A 946 328 21 01
WEWELER US 07394C
WEWELER US 07394
Double-Convoluted air bags come in a wide selection of ride heights
with various port and bolt configurations. The have a double
bellows and look like two air springs stacked on top of each other.
Long, trouble free service, constant level hauling, quiet cushioned
ride ; Long lasting service on almost all truck and trailer air
suspensions; Absorb road shock to help tractors and rigs last
longer; Cut down on vibration and driver fatigue
Double Convoluted air springs for hotel laundry equipment
1. Lower installation height to achieve a larger stroke; 2. It can
generate greater thrust and is very convenient to install; 3. It
has better weather resistance and has a longer service life than
ordinary aluminum alloy cylinders; 4. It can bear larger the
vibration

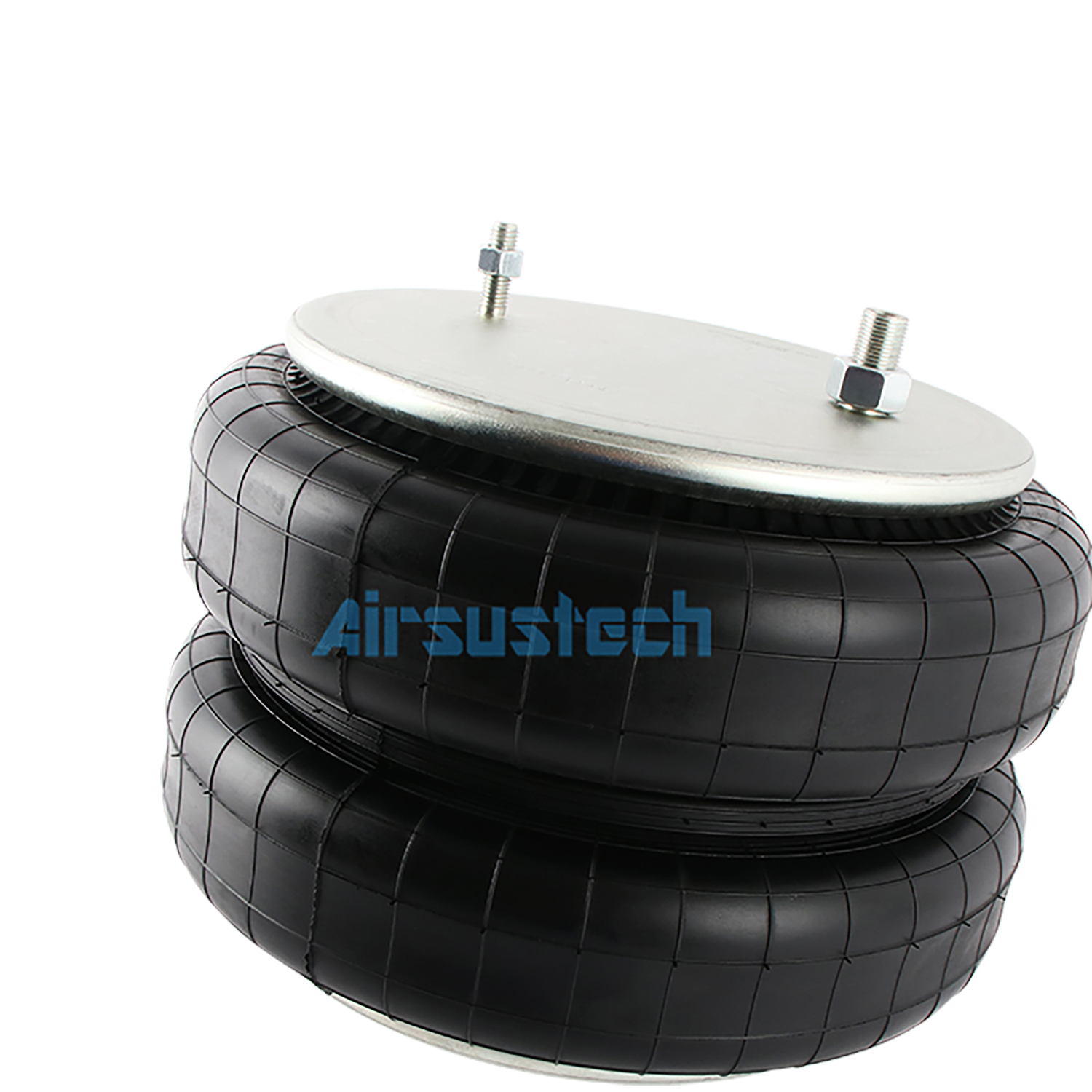

The reated picture of air springs/convoluted air spring/air bag/air
balloon: 2B7892
![]() |
