    251mm Double Convoluted Air Spring Assembly Firestone W01-358-6908 Replacement

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6908
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    251mm Double Convoluted Air Spring Assembly Firestone W01-358-6908 Replacement

    Double Convoluted Air Spring Assembly Firestone W01-358-6908 Replacement


    Cross Reference

    Brand Name

    Part Number

    Firestone

    W01-358-6908; W01 358 6908; W013586908

    WO1-358-6908; WO1 358 6908; WO13586908

    Contitech

    FD 200-19 362; FD 200 19 362; FD20019362
    FD200-19 362; FD200 19 362; FD200-19362

    Contitech

    161294

    Goodyear

    2B9-210; 2B9 210; 2B9210

    Goodyear Bellow number

    578923206;578-92-3-206; 578 92 3 206

    Triangle

    6325; 4362

    Watson&Chalin

    AS-0035; AS 0035; AS0035

    Ridewell

    1003586908C


    Continental ContiTech FD 200-19 362, ContiTech Order # 64511, Automann SP2B12R-6908, Firestone No. W01-358-6908, Firestone Style 20, FleetPride AS6908, Goodyear 2B9-210, Goodyear Flex No. 578923202, Loadguard SC2766, Ridewell 1003586908C, Taurus 6325, Triangle AS-4362, TRP AS69080, Warren 8030120, Watson & Chalin AS-0035


    Air Spring spcifications and data parameters: 2B6908

    Type: Double Convolution Air Spring; 2-Ply Bellows
    The distance between the two blind nuts: 89mm
    Air Inlet/Air fittings/Portsize: Offset, 44.5mm
    Top and Bottom cover plate diameter: 160mm
    Min. height: 81mm
    Max. height: 274mm
    Max. OD: 251mm
    Girdle ring/Girdle hoop/Belt loop: one piece
    Bumper/ Bumper Block: Without

    Air Spring Components

    1. Stud
    A permanent part of the bead plate assembly used to attach the airspring to the suspension.
    2. Combo Stud
    Combination mounting stud and air fitting

    3. Blind Nut
    A permanent part of the bead plate assemblyproviding an alternate mounting system to the stud.
    4. Air Fitting Hole
    A tapped hole usually 1/4" N.P.T. providing air entrance for the part.
    5. Bead Plate
    Permanently crimped onto the bellows at the factory allowing complete part leak testing prior to shipment.
    6.Bellows
    The heart of an Airide spring. Includes at least four plies, or layers, of material–an inner layer, two plies of cord-reinforced fabric, and an outer layer.
    7. Bumper (Optional)
    A solid molded rubber fail-safe device used on many suspension applications. Prevents excessive damage to vehicle and suspension in the case of sudden air pressure loss.
    8. Girdle Hoop
    A ring between the convolutions of the convolutedtype air spring.

    Air Spring Analysis

    Appearance or Condition
    • Bead plate concave
    • Internal bumper loose
    • Hole in girdle hoop area (convoluted)
    • Hole in bead plate junction area
    • Leaking around blind nuts

    Possible Causes
    • Broken or defective shock absorber
    • Defective leveling valve
    • Overloaded vehicle
    • Pressure regulator set too low
    • Wrong air spring (too tall)

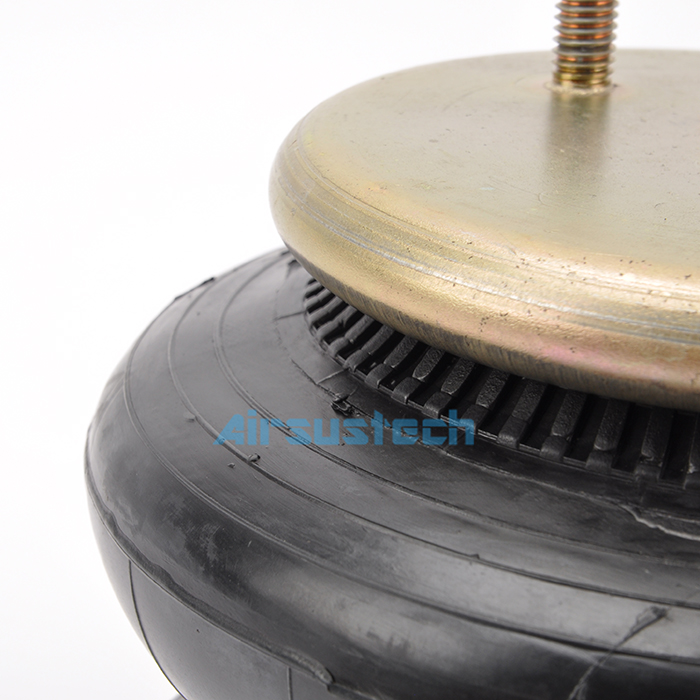

    The reated picture of air springs/convoluted air spring/air bag/air balloon: 2B6908




    W01-358-6908; W01 358 6908; W013586908
