2 Convoluted Firestone W01-358-6890 Style 20 Rubber Air Spring Contitech FD 200-19 539 Air pillow

Cross Reference

Air Spring supplier: Firestone

Supplier Number: W01-358-6890; W01 358 6890; W013586890; WO13586890; WO1 358 6890; WO1-358-6890

Firestone Style 20

Air spring supplier: Contitech

Supplier number: FD 200-19 539; FD 200 19 539; FD 20019539; FD200-19 539; FD200 19 724; FD20019 539

Air spring supplier: Goodyear

Supplier number: 2B9-606; 2B9 606; 2B9606;

Bellow number: 578923211; 578-92-3-211; 578 92 3 211

Air spring supplier: Neway

Supplier number: 90557228; 905-57-228; 905 57 228

Air spring supplier: Euclid/Meritor After market

Supplier number: E-FS6890; E FS6890; EFS6890

A cross reference listing means that this part should a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

Air Spring spcifications and data parameters: 2B6890

Type: Double Convolution Air Spring; 2-Ply Bellows

Bottom Cover Mounting Thread: 2pcs ×3/8-16UNC

Screw center distance: 89mm

Cover plate diameter: 160mm

Air Inlet/ Air Hole/ Air fittings/ Portsiz: offset; 44.5mm

Min. height: 81mm

Max. height: 274mm

Max. OD: 251mm

Girdle ring/Girdle hoop/Belt loop: one piece

Bumper/ Bumper Block: Without

Other types

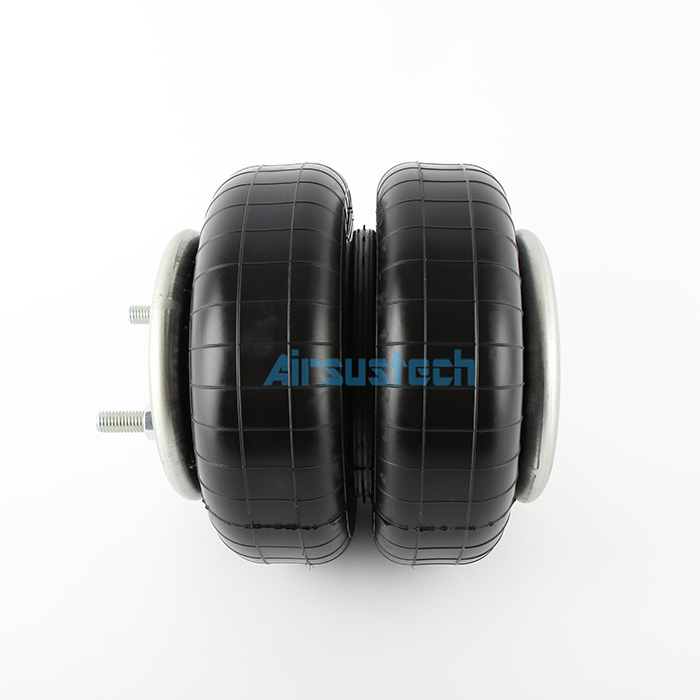

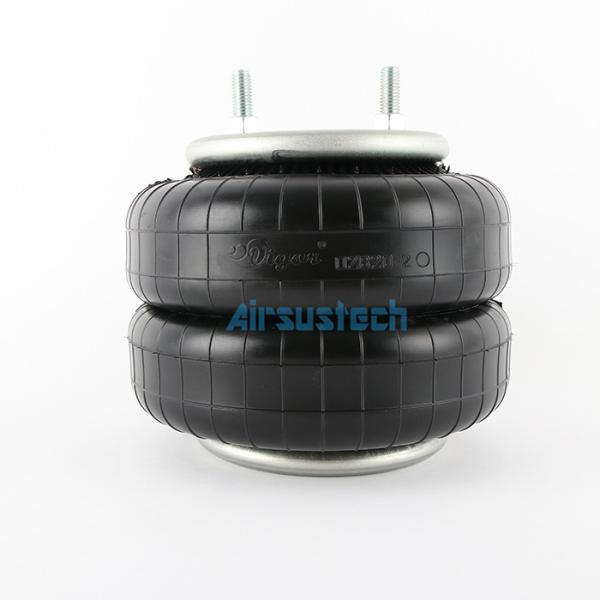

The reated picture of air springs/convoluted air spring/air bag/air balloon: 2B6890
