Pneumatic Shock Absorbers Firestone W01-358-7725 One Convoluted Rubber Air Spring

Essential details

Product name: air spring/airbag/air bellow/pneumatic shock absorber/air balloon/air shocks/ rubber shocks/air actuator/ air spring assembly

Product No.: 1B7725
Operation: gas-filled
Function: reduce shock
Dimension: OEM/standard size
Quality: 100% Tested

Terms: EXW, FOB, CNF, CIF and so on.
Payment: T/T,Trade Assurance,Paypal,Western Union
Shipping: sea transportation,TNT,DHL,UPS,FedEx,EMS and so on.

Service: Door to dooe, warehouse to door or others.

Cross Referenece

Airspring Supplier: Firestone, FIRESTONE

Competitor/Supplier Number: WO1-358-7725; WO1 358 7725; WO13587725;W01-358-7725; W013587725; W01 358 7725; wo13587725; wo1-358-7725; w01-358-7725; w01 358 7725; w013587725

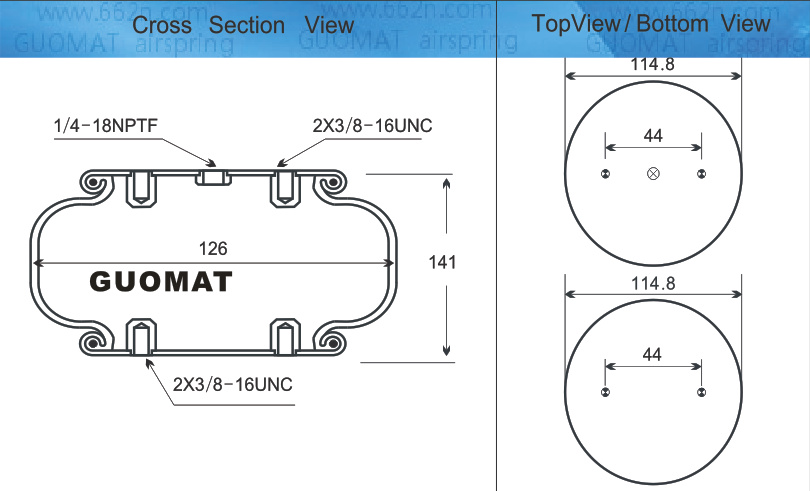

The detail specifications and parameters: 1B7725 air spring assembly

​Bellows Style Industrial Air Spring, Single Convoluted, Female Mounting Threads

Cover Plate Dia: 114.8 mm

Screw Center Distance: 44mm

Distance Gas Hole Between Nut: 22mm
Air Connection: 1/4-18NPTF, Center air inlet
Mounting thread: 2 x 3/8UNC

Rubber Bellow: 126mm

Height: 141mm
Temperature range: -40 to +70°C

2 PLY BELLOWS
Rubber: Natural rubber

Advantage of air spring

Applications

Air springs are widely used for damping, lifting, pressing, absorbing/providing forces on curves or surfaces. such as pipe indexing threading, missile assembly fixture, core straightener, bellt take up, roller friction brake, oscillating doctor for paper calender roll, forming press, cable tensioning device, bag flattenercable, torsional friction brake, die stripper, gluing press, web tensioning devices, gate valve operator.

What is the performance of the air spring to store air

Airtightness is one of the important functions of rubber airbags. Airtightness is the ability of rubber to block the passage of air under a certain air pressure. The higher the air pressure it can withstand, the better its anti-air function.

Precautions for storing rubber air springs

1. The place where the airbag is stored should be kept away from heat sources.
2. The airbag cannot be in contact with acid, alkali and grease
3. When the airbag is not used for a long time, it should be washed and dried, filled with talcum powder inside and outside, and placed in a dry, cool and ventilated place indoors.
4. The airbag should be stretched out and laid flat, and should not be stacked, nor should any heavy objects be stacked on the airbag.

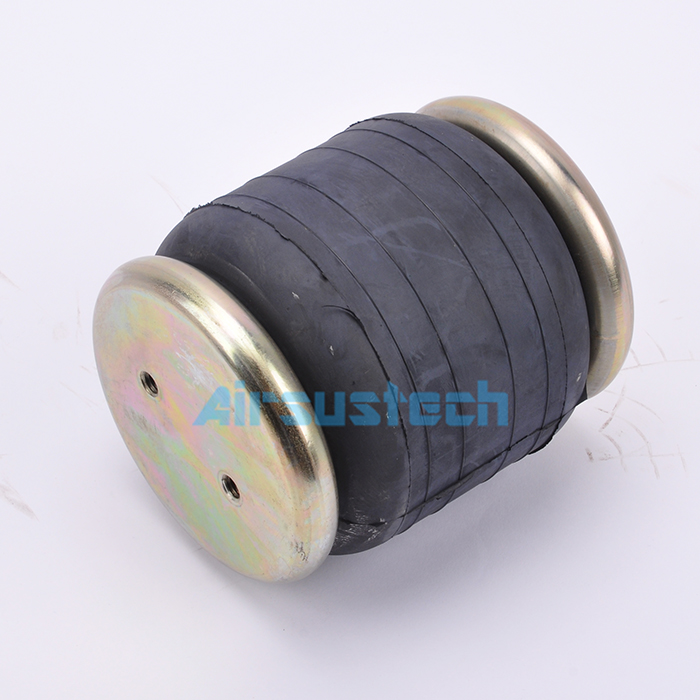

The pictures of air spring/air actuator/air ballon: 1B7725
