    PARKER 9109401 Industrial Air Springs Norgren PM/31042 Double Convoluted G3/8

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B4.5×2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    PARKER 9109401 Industrial Air Springs Norgren PM/31042 Double Convoluted G3/8

    PARKER 9109401 Norgren PM/31042 Double Convoluted G3/8 Air Spring


    Cross Reference


    Airspring SupplierPARKER
    Competitor/Supplier Number9109401
    Airspring SupplierNORGREN
    Competitor/Supplier NumberPM31042; PM/31042; PM 31042
    Airspring SupplierDUNLOP
    Competitor/Supplier Number4 1/2''x2; 4 1/2 X 2
    Airspring SupplierDUNLOP SPRINGRIDE
    Competitor/Supplier NumberSP2441
    Airspring SupplierContitech
    Reference70206
    Competitor/Supplier Number

    FD 44-10 ; FD 44 10 ; FD 44 10 ;FD 44-10 DI ; FD44-10DI ;FD 44-10 DI G 3/8 CR; FD44-10 DI G 3/8 CR; FD44-10DIG3/8CR


    Airspring Supplier

    Firestone


    Competitor/Supplier Number

    W01-R58-4051; W01 R58 4051; W01R584051; WO1-R58-4051; WO1 R58 4051; WO1R584051



    Specifications and Detailed Technical Parameters:AIRSUSTECH 2B4.5×2


    Medium: Compressed Air

    Port size: G3/8, in the middle

    Operation: Single acting

    Operating pressure: 0 ... 8 bar

    Stroke length: 80 mm

    Number of convolutions: double convoluted
    Space required ⌀D [mm]: 140
    Max.OD diameter: 125mm

    Air inlet: G3/8

    Height: from 65mm to 150mm

    Teeth/Nuts: 3pcs ×M6


    Other PARKER air spring replacement we could offer


    PARKER Order code StandardNorgren ReferenceTypesPort Size
    9109400PM/310414½ x 1
    G3/8
    9109004APM/310616 x 1 (alu.)G1/2
    9109004M/310616 x 1 (steel)G1/2
    9109014M/310818 x 1G1/2
    9109024M/3110110 x 1
    G1/2
    9109044M/31121
    12 x 1
    G1/2
    9109064M/3114114½ x 1
    G1/2
    9109009PM/310222¾ x 2G1/4
    9109401PM/310424½ x 2G3/8
    9109001APM/310626 x 2 (alu.)G1/2
    9109001M/310626 x 2 (steel)G1/2
    9109011M/310828 x 2G1/2
    9109021M/3110210 x 2G1/2
    9109041M/3112212 x 2G1/2
    9109061M/3114214½ x 2G1/2
    9109171M/3116216 x 2G1/2
    910915021½ x 2G3/4
    9109153M/3121221½ x 2
    (Air Bellows
    less end caps)
    9109010PM/310232¾ x 3
    G1/4
    9109402PM/310434½ x 3
    G3/8
    9109007APM/310636 x 3 (alu.)G1/2
    9109007M/310636 x 3 (steel)G1/2
    9109017M/310838 x 3G1/2
    9109031M/3110310 x 3G1/2
    9109051M/3112312 x 3
    G1/2
    9109069M/3114314½ x 3G1/2
    9109177M/3116316 x 3G1/2

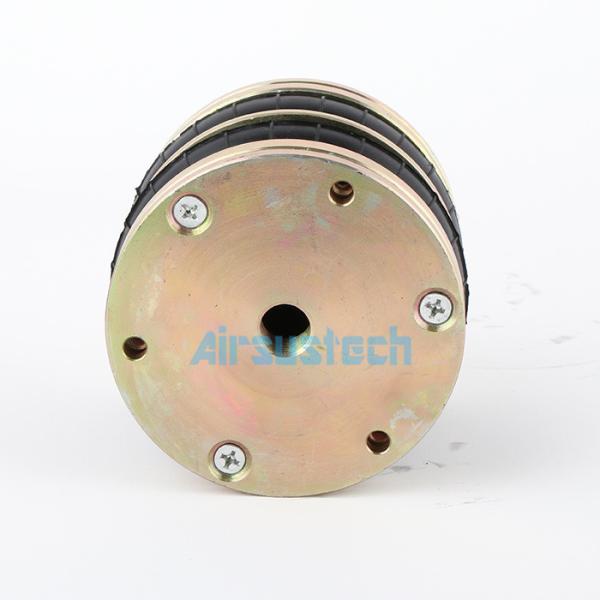

    The related picture of 4.5×2 pneumatic actuator/air spring assembly
