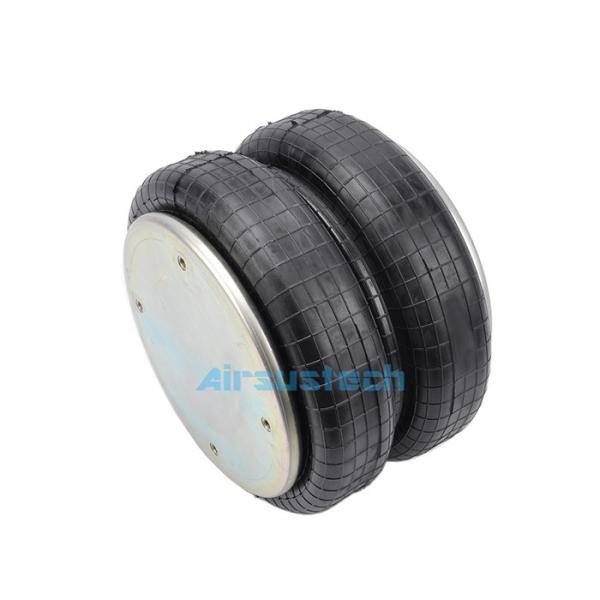

Ridewell 1003587781C Double Convoluted Rubber Industrial Air Springs

OEM numbers: Ridewell 1003587781C,Firestone Part No. W01-358-7781, Firestone Part No. W01 358 7781, Firestone Part No. W013587781, Firestone Part No. WO1-358-7781, Firestone Part No. WO1 358 7781, Firestone Part No. WO13587781, Contitech FD 530-35 545; Contitech FD 530 35 545, Contitech FD530-35 545, Contitech FD530 35 545; Contitech FD53035 545; Contitech FD53035545

Applicable to: .After market spare parts for industrial equipments, trucks and heavy vehicles

2B7781 specifications and Tecnical Data

4pcs ×3/8-16UNC nut/blind nut Top plate screw (nut) teeth; 3/4NPT Air hole/air inlet/air fittings; 289mm top/bottom cover plate; 406mm max. rubber bellows; minumum 104mm to maximum 391mm working stroke; with bumper/bumper block; one piece of belt loop/girdle hoop/girdle ring

About air spring

The main function of the rubber air spring is to eliminate and reduce the transmission of mechanical vibration, and finally achieve the purpose of noise reduction, shock absorption and impact reduction.

The rubber air spring is a curved capsule made of rubber as the main raw material, and uses air as the medium for balancing, buffering, and transmitting pressure. In the actual application process, the performance requirements of different parts of the rubber air spring are different. Generally, the outer rubber layer of the air spring needs to be resistant to aging, flexing, and has good adhesion to the cord, and has a high tensile stress; the inner rubber layer needs to be resistant to aging, has low air permeability, and has good adhesion to the cord; the cord requires a rubber compound It has the characteristics of flex resistance, heat resistance and high adhesion of cloth layer.

Operational Cautions

Air Spring failure can be caused by a variety of situations, including internal or external rubbing, excessive heat and overextension.

Temperature/Pressure Range

The ambient operating temperature range for standard air springs may vary. See the technical parameters or consult relevant personnel
The maximum pressure is 100 PSI.

Packing details, Delivery and Payment

The related picture of 2B7781 air spring/pneumatic cylinder
