Brand Name : | AIRSUSTECH |
Model Number : | 2B7550 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Goodyear Truck Helper Bags 2B12-346 2B12-440 578923315 Double Bellow Suspension Air Springs
Cross Reference
Goodyear Part Number 2B12-346
Goodyear Part Number 2B12 346
Goodyear Part Number 2B12-440
Goodyear Part Number 2B12 440
Goodyear Bellow Number 578923315
Firestone Part Number W01-358-7550
Firestone Part Number W01 358 7550
Firestone Part Number W013587550
Firestone Part Number WO1-358-7550
Firestone Part Number WO1 358 7550
Firestone Part Number WO13587550
Contitech Number FD331-26 541
Contitech Number FD331 26 541
Triangle:6375
Triangle:4480
Watson&Chalin : AS-0087
Histeer :10315

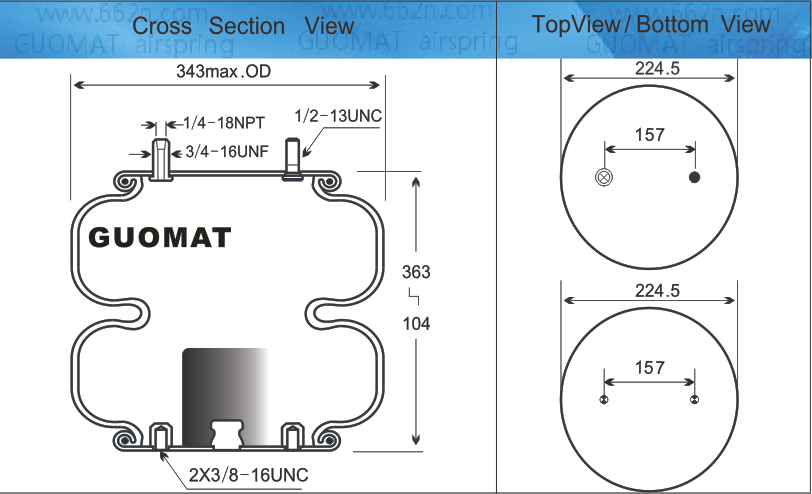

2B7550 helper bags specifications and Tecnical Data
1. Bolt/Stud on top cover: 1/2-13UNC
Combo/Combination Stud: Stud-3/4-16UNC, air fittings-1/4-18NPT
2. Threaded hole on bottom cover: 2pcs×3/8-16UNC
Bottom plate screw center distance : 157 mm
3. Top/Bottom plate diameter (width): 224.5mm
4. Rubber bellows Max. diameter: 343mm
5. Working Stroke: Min104mm to Max. 363mm
6. Bumper block/bumper block with bumper
7. Belt loop/girdle ring/girdle hoop: with one piece of belt
loop/girdle hoop
8. Max. Rubber Bellow: 343mm
Other types of goodyear air springs we could offer
Part Number | Top Plate Hole/Stud Qty. | Bottom Plate Qty. | Top Plate Dia | Bottom Plate Dia. | Collapsed Height | Flexmember |
2B9-229 | 1 | 1 | 6,4 | 6,4 | 2,9 | 578-92-3-202 |
2B9-245 | 1 | 1 | 6,4 | 6,4 | 4,2 | 578-92-3-202 |
2B9-296 | 1 | 2 | 6,4 | 6,4 | 3,2 | 578-923-211 |
2B9-218 | 1 | 2 | 6,4 | 6,4 | 3,5 | 578-92-3-206 |
2B9-230 | 1 | 2 | 6,4 | 6,4 | 3,8 | 578-92-3-202 |
2B10-226 | 1 | 2 | 6,4 | 6,4 | 3,1 | 578-92-3-250 |
2B9-246 | 2 | 1 | 6,4 | 6,4 | 3,8 | 578-92-3-211 |
2B12-304 | 2 | 1 | 9 | 9 | 3,4 | 578-92-3-309 |
2B12-411 | 2 | 1 | 9 | 9 | 3,5 | 578-92-3-309 |
2B12-412 | 2 | 1 | 9 | 9 | 4,2 | 578-92-3-309 |
2B9-244 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-92-3-202 |
2B9-252 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-92-3-206 |
2B9-254 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-92-3-206 |
2B9-265 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-92-3-206 |
2B9-266 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-92-3-208 |
2B9-607 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-923-208 |
2B9-611 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-923-211 |
2B9-614 | 2 | 2 | 6,4 | 6,4 | 3,8 | 578-9-23-211 |
2B9-280 | 2 | 2 | 6,4 | 6,4 | 3,9 | 578-92-3-211 |
The related picture of 2B7550 suspension air springs
![]() |
