Air Springs Assembly Double Convoluted Triangle Part No. 4427 Bellow 6632 Air Actuator

Interchanges & Equivalent Parts

AIRSUSTECH air spring assembly no.2B6945 can replace triangle air spring, it also can be comparable to contitech, firestone, goodyear and others' air spring. The specific model numbers are as follow:

Triangle Part No.: 4427

Triangle Bellow No.:6332

Contitech : FD200-25 427

Contitech : FD200 25 427

Contitech : FD20025 427

Contitech : FD 200-25 427

Contitech : FD 200 25 427

Contitech : FD 20025427

Goodyear Part No.: 2B9-253

Goodyear Part No.:2B9 253

Goodyear Part No.: 2B9253

Goodyear Bellow No.: 578923206

Firestone Part No.:W01-358-6945

Firestone Part Number:W01 358 6945

Firestone Part No.: W013586945

Firestone Part No.: WO1-358-6945

Firestone Part No.: WO1 358 6945

Firestone Part No.: WO13586945

Firestone Bellow: 20-2

Ridewell 1003586945C

Leland Sc2 125

Watson&Chalin AS0119F

Watson&Chalin AS01451G

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6945

2X1/2-13UNC Nut/blind nut on top plate; 2X3/8-16UNC screw teeth on bottom plate; 89mm screw center distance; 1/4 NPTF offset air inlet; 160mm cover plate; 232.5mm rubber bellow; 235mm height; with bumper block; One piece of girdle hoop/girdle ring

Packing and Storage

Packing

Storage

The best storage environment is a dark, dry area ar normal room temperature.

Other types of triangle air spring replacement we could offer and Corresponding Firestone number

our service

1. Welcome to sample customization: product, packaging...

2. Sample order is available.

3. We will reply your inquiry within 24 hours.

4. After sending, we will track the product for you every two days until you get it. When you get the goods, test them and give me a feedback. If you have any questions about this product, please feel free to contact us, we will provide you with a solution

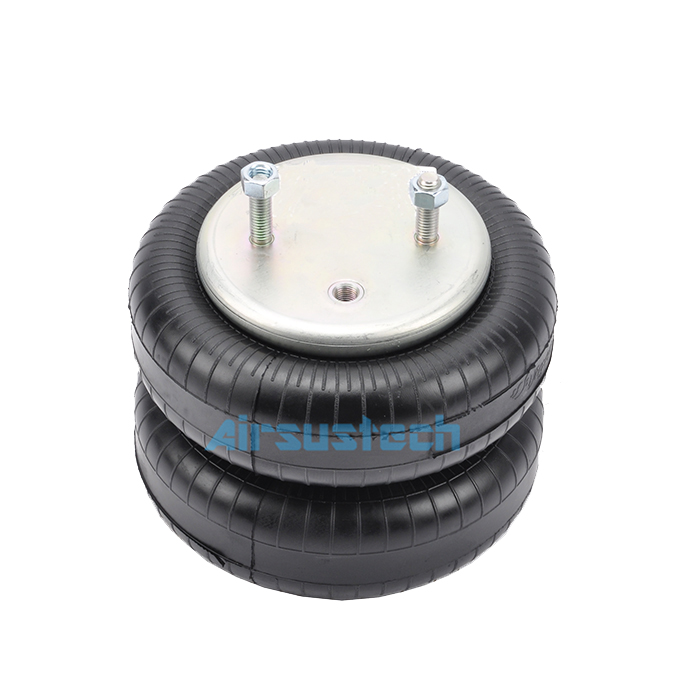

The related picture of 2B6945
