1/4 Portsize Airkraft 113054 2B-181 Replcement Double Convoluted
Industrial Air Springs
Cross Reference
Airkraft:113054
Airkraft:2B-181
Airkraft:2B 181
Contitech FD120-17; FD12017; FD120 17; FD 120-17; FD 120 17; FD 12017
Contitech FD 120-17 CI G 1/4; FD120-17 CI G 1/4; FD120-17CI G1/4;
FD120-17CIG1/4
Contitech 61361
Firestone Part Number: W01-M58-6353; W01 M58 6353; W01M586353; WO1-M58-6353; WO1 M58 6353; WO1M586353; Wo1-M58-6353; Wo1 M58 6353; Wo1M586353; wo1-M58-6353; wo1 M58 6353; wo1M586353
Specifications and Detailed Technical Parameters: 2B12017-1/4
Crimped Bead Plate, Female Mounting Threads, G1/4 BSPP,
2pcs×M8×1.25 Threaded Holes; 135mm Cover Plate Diameter; 215mm Max.
Od, 167mm Height; Without Bumper Block; With one piece of girdle
hoop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.3kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 190mm, minimum 175mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 3.8 | 5.2 | 6.5 | 8.0 | 9.3 | 10.6 | 3.2 |
| Spring rate [N/cm] | 600 | 830 | 1060 | 1290 | 1520 | 1750 |
| Natural frequency [Hz] | 2.1 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 200 | 3.4 | 4.8 | 5.9 | 7.3 | 8.5 | 9.7 | 3.4 |
| 180 | 4.2 | 5.7 | 7.1 | 8.6 | 10.1 | 11.5 | 3.1 |
| 160 | 4.9 | 6.5 | 8.1 | 9.9 | 11.5 | 13.1 | 2.8 |
| 140 | 5.5 | 7.2 | 9.1 | 11.0 | 12.7 | 14.5 | 2.4 |
| 120 | 6.0 | 7.9 | 9.9 | 12.0 | 14.0 | 15.8 | 2.1 |
| 100 | 6.4 | 8.5 | 10.7 | 12.9 | 15.1 | 17.0 | 1.6 |
| 80 | 6.8 | 9.1 | 11.3 | 13.7 | 16.0 | 17.9 | 1.2 |
Guomat air springs
Air bellows are the ideal choice for applications requiring short
stroke, high thrust single acting actuators.
Manufactured from fabric reinforced synthetic rubber in one or two
convolutions according to stroke and model. They incorporate no
reciprocating metal parts and so provide virtually frictionless
thrust compared with conventional pneumatic cylinders.
• Single or double convolutions or triple convolutions
• High thrust and frictionless movement
• Maintenance free
Apply For
Air springs can be used in many industrial equipment, such as
vibration tables. During our use of machines to separate food,
divide tangles, shake sand, separate slurries, etc., most of the
vibration from the vibrating platform is absorbed by the air
springs.
Furthermore, the air spring protects the sensitive parts of the
machine. Because vibration can damage the frame and body of the
machine, increasing the probability of machine failure. The air
spring can absorb up to 99% of the vibration isolation, which can
effectively protect the machinery and equipment.

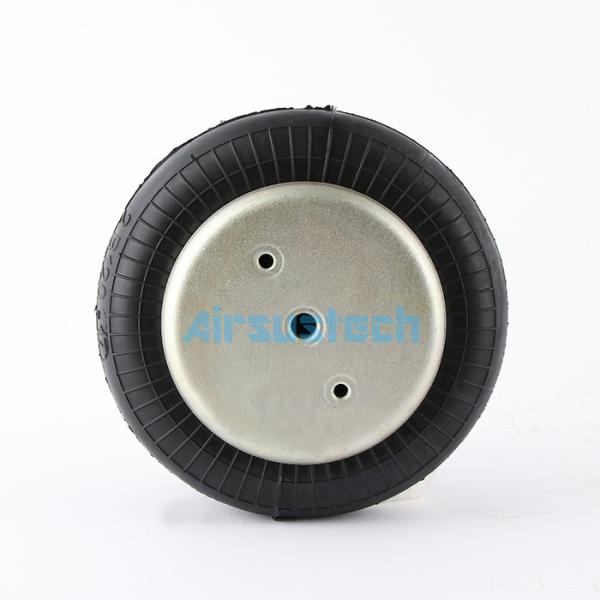

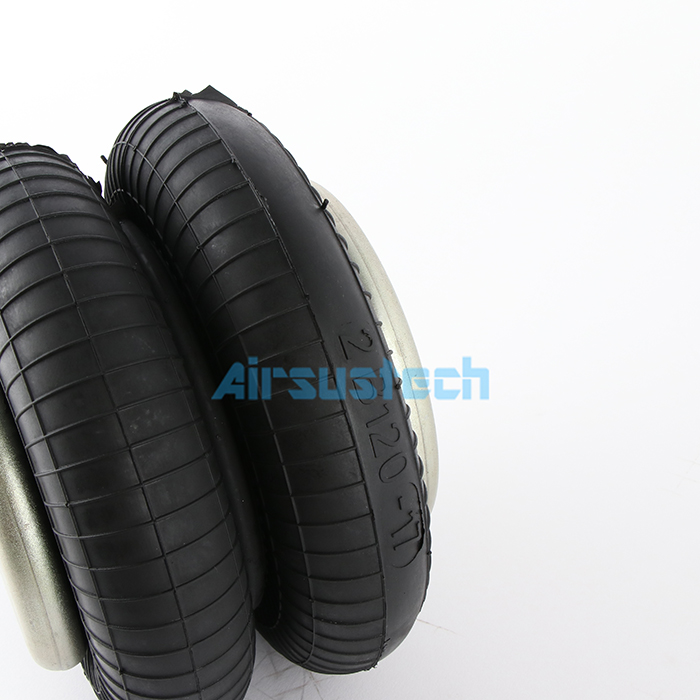

The related picture of 2B12017-1/4
