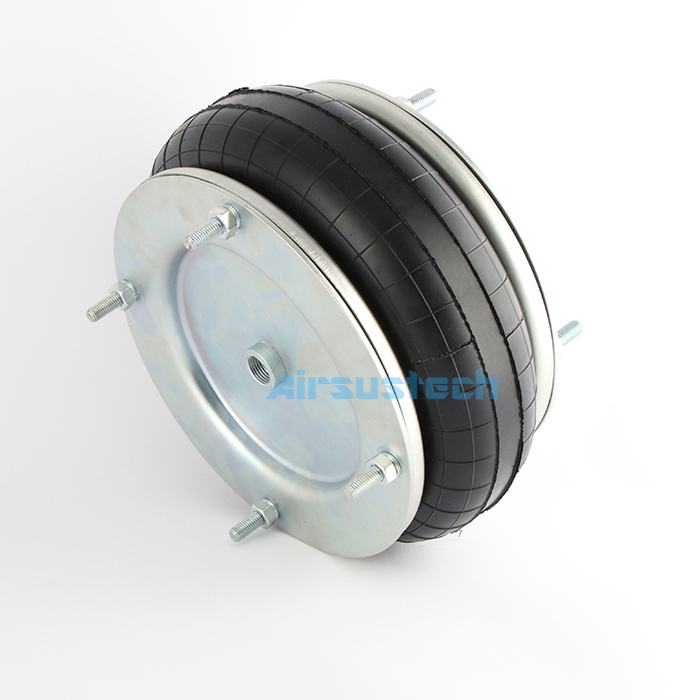

16''×1 Contitech FS 816-15 DS Single Convoluted G1/2 Air Inlet Rubber Air Spring


Cross Reference


Continental: FS 816-15 DS; FS816-15DS; FS81615DS
Continental: FS 816-15; FS816-15 ; FS81615
Continental: FS 816-15 DS G1/2; FS816-15DSG1/2; FS816 15DSG1/2
Firestone: W01R584066; W01 R58 4066; W01-R58-4066
Firestone: WO1R584066; WO1 R58 4066; WO1-R58-4066
DUNLOP PNEURIDE: 16"x1
Norgren: M/31161 / M 31161 / M31161
Nominal (inch) x convolutions: 16" x1/ 16"x1/16x1
Parker: 9109026

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B16X1

Air Spring Knowledge

Air springs are generally used for resilient mounting of machines and equipment generating shocks and vibrations transmitted through the foundation into environment (e.g. textile looms, conveyers, power hammers, forging presses, etc.).They are well suited to insulate laboratory instruments from vibrations.
A complete air spring is composed of a rubber-textile bellow, rings among convolutions, two clamping bead rings, a top and a lower covers in case of a demountable set or secured covers in case of a non-demountable set. Covers and clamping rings are designed to be fixed to suspended and non-suspended machine or vehicle parts and one of the covers (in most cases the top one) is provided with an air inlet connection.
Air springs are mounted individually or in panels in which the needed number of air springs is joined together– as per the suspended equipment weight. Contact of the rubber-textile wall of the bellow with sharp and hot objects (scales, edges, exhausts, etc.) must be avoided.
Air springs can be infl ated either individually or centrally. It is advisable to connect them to the compressed air source via a control valve.
The rubber of which the bellow is made is not petroleum product resistant (oil, Diesel fuel, petrol, kerosene, etc.). If contaminated by any of these substances, please wash it with warm water and wipe dry.

The related picture of 16×1 air spring/air shocks/air bags/cylinders/air ballons

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
