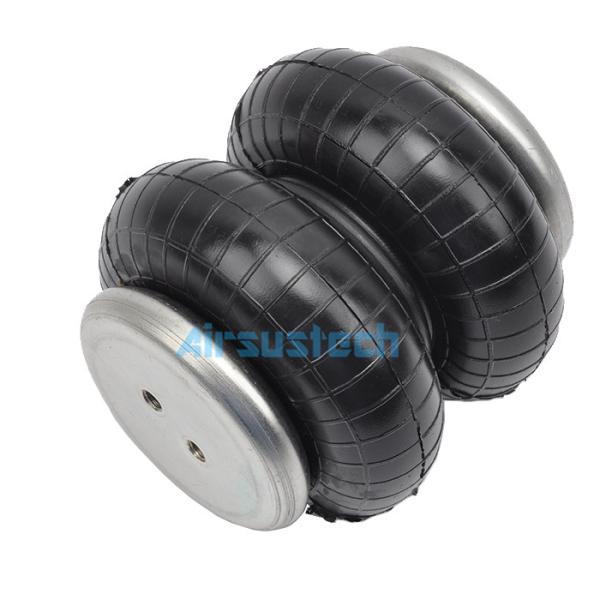

Double-bellows Cylinder FD40-10 G1/8 M8 Continental 2682001000 Industrial Air Springs

Refer NO.

Contitech FD 40-10

Contitech FD40-10

Contitech FD 40 10

Contitech FD40 10

Contitech FD 4010

Contitech FD40-10CI G1/8

Contitech FD40-10 CI G1/8 M8

Continental FD 40-10 CI

Continental 2682001000

Continental 2682 001 000

2B4060 Specifications and Tecnical Parameters

1. Mounting thread: M8×1.25
2 Compressed air connection:G1/8

3. Cover Plate Diameter: 90mm

4. Rubber Bellow: 125mm

5. Height: 145mm

6. Bumper block/bumper block without bumper
7. Girdle Hoop: one piece

Bellow Cylinder

The stroke of the bellows cylinder can be made to describe a circular arc, in which case the indicated tilt angle must not be exceeded. During setup it must be observed that the minimum height is not fallen short of, and that the maximum height is not exceeded at any given point. The height at the centre of the plate is the decisive factor in the calculation of the thrust.

Bellow cylinder has single convoluted, double convoluted and triple convoluted.
Bellows cylinders function both as driving and pneumatic spring components. Bellows cylinders function as a driving component by providing pressurising and exhaust functions. As the stroke increases, the force generated is reduced in relation the contractional force of the bellows. When bellows cylinders are supplied with permanent pressure, they function as a cushioning component. The simple design consists of two metal plates with a ribbed rubber bellows. There are no sealing components and no moving mechanical parts. Bellows cylinders are single-acting drives that do not require spring returns, as the reset is performed through the application of external force

Other Double-bellows cylinder we have

2B4060 industrial air springs application in agricutural machine

2B4060 air springs are found on planters and cultivators, helping you to easily adjust your equipment to exactly the right height to maximize results. It can be also found on irrigation and conveyor systems, harvesting and material handling applications.

The related picture of 2B40-10
