    Industrial Suspension Air Springs Contitech FS 530-14 CI G 3/4 OS Firestone W01M586369

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B53014-3/4
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Suspension Air Springs Contitech FS 530-14 CI G 3/4 OS Firestone W01M586369

    Contitech FS 530-14 CI G 3/4 OS Firestone W01M586369 One Convoluted Industrial Suspension Air Springs


    Cross Reference


    CONTITECH FS 530-14

    CONTITECH FS 53014

    CONTITECH FS 530 14

    Continental FS 530-14

    Contitech FS 530-14 CI G 3/4 OS

    Contitech FS530-14CIG3/4OS

    Contitech 66897

    Firestone W01M586369

    Firestone W01 M58 6369

    Firestone W01-M58-6369

    Firestone WO1M586369

    Firestone WO1 M58 6369

    Firestone WO1-M58-6369

    Goodyear 1B14-372

    Goodyear 1B14 372

    Goodyear 1B14372


    Specifications and Detailed Technical Parameters:AIRSUSTECH 1B53014-3/4 Industrial Suspension Air Spring


    One Convoluted; 4 X M8 Blind Nut/Nut; 158.8mm Screw Center Distance; G3/4 Offset Air Inlet; Female Mounting Threads; Without bumper block and Girdle hoop


    Storage and Maintenance


    Storage

    1. When storing the air spring, please store it in a low temperature and dark place with poor ventilation as much as possible, and avoid direct sunlight.

    2. Please avoid letting the air spring stick to oil and medicines. If adhesion is left unattended, durability may be reduced due to reduced physical properties of the rubber.

    3. The wall thickness of the air spring is relatively thin, about 5mm. Please be careful to avoid scratches etc.

    4. The air spring is ideally stored in a free state.

    5. Do not place it in a place with a temperature above 50°C.

    Maintenance and Inspection

    For air springs, daily inspection and safe use must be done. If abnormality is found after inspection, it must be replaced with a new one immediately.

    1. Before using the air spring, it is necessary to confirm whether the upper and lower panels and the waist ring are installed correctly, especially the waist ring. If the rubber film is subjected to internal pressure when the waist ring is offset or fallen off, the rubber film will be ruptured.

    2. When impurities, oils, medicines, etc. adhere to the air spring, please be sure to remove it.

    3. If the lubricating oil enters the inside of the air spring, it must be wiped frequently, and the inside of the air spring should be washed with water regularly.

    4. Please confirm whether the appropriate pressure can be provided when using, especially in many cases, the piping system will be abnormal, please pay attention.

    5. In the following cases, please replace the air spring.

    • Cracks, scuffs, abrasions in the outer rubber that can reach the reinforcing cord layer.

    • If the air spring is abnormally deformed or expanded, even if there is no trauma, air will accumulate inside the air spring, resulting in separation.

    • The rubber surface swells or cracks due to oil, chemicals, heat, etc.

    6. If the upper and lower panels and waist ring are corroded, the air spring will be scratched. Therefore, the corroded parts must be replaced.

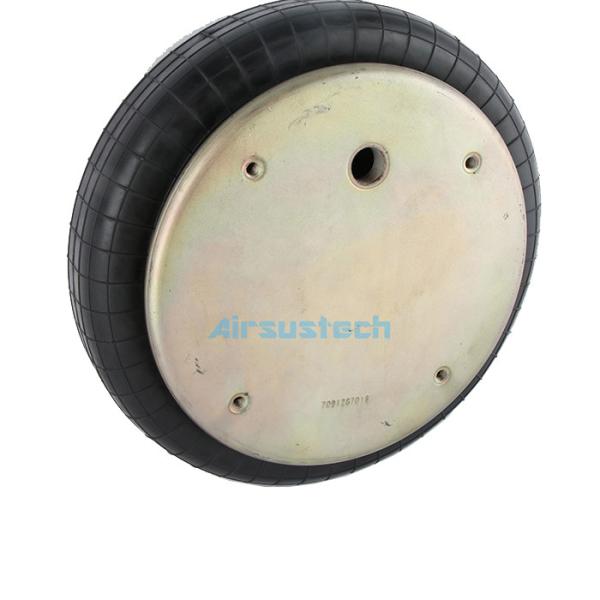

    The related picture of 1B53014-3/4
