    SP1542 Triple Convolutions Air Spring 12''×3 Firestone W01R584062 Dunlop Spring Ride

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : M/31123
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    SP1542 Triple Convolutions Air Spring 12''×3 Firestone W01R584062 Dunlop Spring Ride

    12''×3 Firestone W01R584062 DUNLOP SPRINGRIDE SP1542 Triple Convolutions Air Spring


    OEM Cross reference


    Firestone W01R584062

    Firestone W01 R58 4062

    Firestone W01-R58-4062

    Firestone WO1-R58-4062

    Firstone WO1 R58 4062

    Firestone WO1R584062

    DUNLOP SPRINGRIDE SP1542

    DUNLOP PNEURIDE 12" x 3

    CONTITECH FT 412-32 DS

    Contitech FT 412-32 DS G 1/2

    Contitech 66339

    Contitech FT412-32DSG1/2

    NORGREN M/31123

    PARKER 9109051


    Specifications and Detailed Technical Parameters: M/31123


    BELLOWS TYPE: Triple Convolutions

    AIR INLET TYPE: Metric

    Nut/blind nut

    Top plate screw (nut) teeth: 4pcs X M10

    Bottom cover plate screw (nut) teeth: 4pcs X M10

    Air hole/air inlet/air fittings

    Air hole/air inlet: G1/2

    Rubber Bellows

    Top plate diameter (width): 260mm

    Diameter (width) of the bottom cover plate: 260mm

    Space required ⌀D [mm]: 345
    Hmin [mm]: 100
    Hmax [mm]: 430
    Stroke [mm]: 330
    Hstat [mm]: 250

    Bumper block/bumper block

    Without bumper block

    Belt loop/Girdle hoop/Girdel ring

    Two pieces of belt loop/girdle hoop/girdle ring


    Other types of similar air springs and the corresponding OEM number


    FIRESTONE

    DUNLOP PNEURIDE

    DUNLOP SPRINGRIDE

    CONTITECH

    NORGREN

    PARKER

    W01R584063

    14" 1/2 x 1

    SP1543

    FS 614-13 DS

    M/31141

    9109064

    W01R584064

    14" 1/2 x 2

    SP1556

    FD 614-26 DS

    M/31142

    9109061

    W01R584065

    14" 1/2 x 3

    SP1558

    FT 614-36 DS

    M/31143

    9109069

    W01R584066

    16" x 1


    FS 816-15 DS

    M/31161

    9109026

    W01R584067

    16" x 2

    SP1557

    FD 816-30 DS

    M/31162

    9109171

    W01R584068

    16" x 3

    SP2141

    FT 816-40 DS

    M/31163

    9109177


    21" 1/2 x 2

    SP1408


    M/31212

    9109153


    26" x 2

    SP2342


    M/31262

    9109159


    Shipping


    We ship the goods by sea, by air, by railway, by express, such as UPS, FedEx, DHL and so on. Also, we could ship the goods as per your requirements.

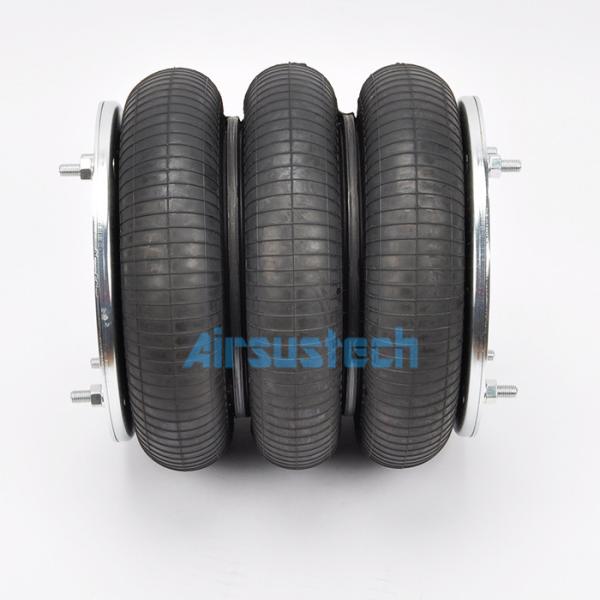

    The related picture of M/31123


    FAQ


    Are air bag suspensions reliable?
    Are air bag suspensions reliable? Yes, definitely. In most cases, properly maintained air bag suspensions can actually last longer than other types of suspensions from the market.


    What is a convoluted air spring?

    Convoluted air springs are generally used for lifting axles and preserve the tires when the vehicle is empty. Aside from that, they are also utilized in industrial applications as pneumatic lift cylinders or suspension elements to absorb vibrations. These air springs are easy to mount and they last long.


    What is the principle of air spring?
    Because an air spring consists of a closed volume of air, the compression of the air spring (jounce travel) will cause an increase in pressure, while the extension of the air spring (rebound travel) will cause a decrease in pressure.
