Double Convoluted 6''×2 Rubber Bellow Industrial Air Springs Continental FD76-14DSCRG1/2 PARKER 9109001 Air Actuator

Airsustech 6×2 Specifications and Technical Parameters

Nut/blind nut

Top/Bottom plate screw (nut) teeth: 4pcs×M8

Air hole/air inlet/air fitting/Portsize: G1/2

Cover

Top/Bottom plate diameter (width): 153.5mm

Height

Max height: 195mm

Min height: 80mm

Stroke: 115mm

Bumper block: Without

Girdle ring/Girdel hoop/Belt loop: one piece of girdle ring/girdle hoop/belt loop

Cross Reference

Other models and corresponding OEM numbers

Advantages of indutrial convoluted air springs

• Extensive product range

air actuators can be used instead of pneumatic cylinders in a wide range of applications. They have diameters of between 2.36 in and 37.40 in and can be execute strokes up to 17.91 in. For example, this type of air spring is 6'' diameter.

• Easy economic installation

When depressurized, air springs can be installed quickly and easily, thereby saving time and money. The elastomer bellow is flexible enough to compensate for any slight misalignments.

• Lateral misalignment possible

Air springs will continue to operate reliably with a misalignment of up to 1.18 in. Unlike pneumatic or hy-draulic cylinders. air springs have no seals that are subject to blockage or wear. In addition, there is no need for precision guides which are sensitive to the effects of dust and other contaminants.

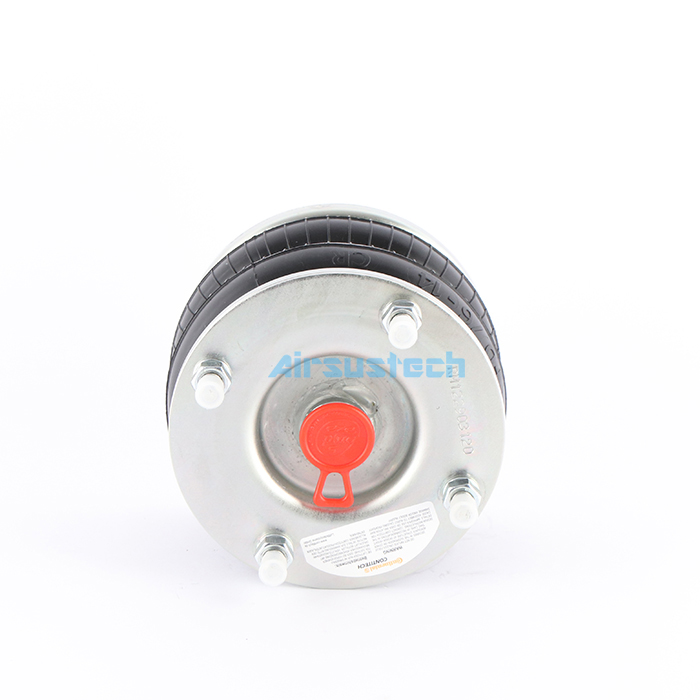

The photos of products

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
