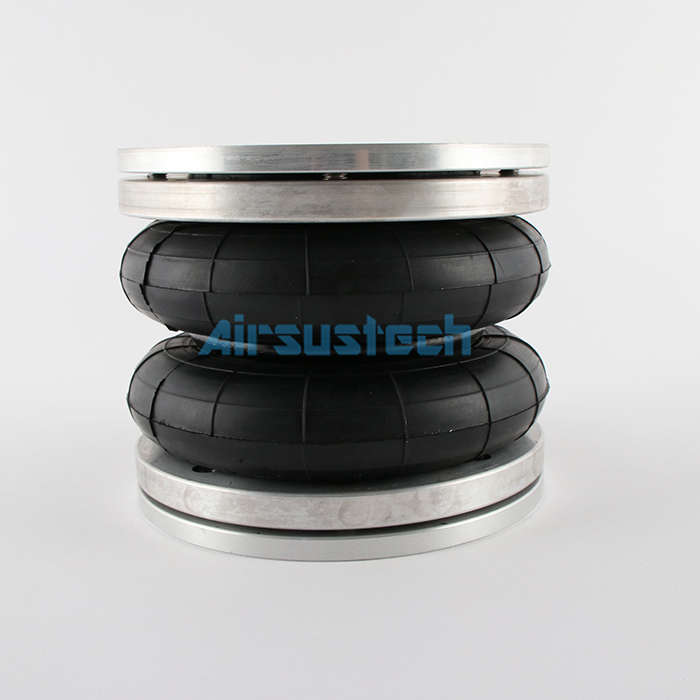

Air Spring Actuator Firestone W01R584070 PARKER 9109001A Double Convoluted G1/2 Portsize

Cross Reference

PARKER 9109001A

Firestone W01R584070

Firestone W01-R58-4070 - (6 x 2 Alu )

Firestone W01 R58 4070 - (6 x 2 Alu )

Firestone W01R584070 - (6 x 2 Alu )

Firestone WO1R584070 - (6 x 2 Alu )

Firestone WO1-R58-4070 - (6 x 2 Alu )

Firestone WO1 R58 4070 - (6 x 2 Alu )

Contitech FD 76-14 DI CR

Contitech FD 76 14 DI CR

Continental FD 76-14 DI G 1/2 CR

Continental FD 76 14 DI G 1/2 CR

Continental FD76-14DIG1/2CR

Norgren PM/31062

Norgren PM 31062

Norgren PM31062

Dunlop Part NO.6"x2

Replaces these air springs

Specifications and Detailed Technical Parameters: 6x2

Style 6 x 2 Alu
Number of bellows 2x
Minimum height (MM)80mm
Maximum height (MM) 195mm
Maximum working height (MM) 195mm
Maximum load capacity (KN)10kN
Installation space (MM) 190mm
Maximum diameter (MM) 162mm
Air connection G 1/2"

Teeth 4×M8

Other Types

Applications

As actuators, air springs provide linear or angular motion. These air springs offer a favorable stroke-to-compression height ratio compared to cylinders and can accept a variety of drive media such as air, water, nitrogen or antifreeze.
As isolators, air springs effectively reduce the harmful effects of vibration. They can isolate vibration and adjust the load height at the same time, and allow consistent vibration isolation under different loads.

Air Springs can be used in the following equipments.

Scissor lift

Hopper vibration and damping

Mechanical handling stop

Quick lock device

Reel tensioning

Machine isolation

Direct force

Impact absorbtion

Roller tensioning

Platform lift

Short stroke mechanical link age

Hot foil stamping press
