    8''×1 Suspension Industrial Air Springs FS 138-8 DS G 1/2 4 M10 Continental Shock Absorber

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8×1
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    8''×1 Suspension Industrial Air Springs FS 138-8 DS G 1/2 4 M10 Continental Shock Absorber

    FS 138-8 DS G 1/2 4 M10 Continental Shock Absorber 8''×1 Industrial Suspension Air Springs


    Cross Reference.


    AIRSUSTECH Part Number:1B8X1

    Continental FS 138-8 DS G 1/2 4 M10

    ContiTech: FS138-8DS66507

    ContiTech: FS138-81/2M10

    ContiTech: FS138-8G1/2M10

    ContiTech: FS138-8DSG1/2

    ContiTech: FS138-8DSG1/2M10

    ContiTech: FS138-8DS/FS138-8DS/FS1388DS

    ContiTech Bellows: FS138-8/FS138-8/FS1388

    Dunlop(FR) Bellows Number: 8’’x1

    Dunlop(FR) Part Number:SP1637

    Dunlop(FR) Part Number: SP 1637

    Dunlop(FR) : 8''x1

    Dunlop(FR) : 8x1

    Dunlop(FR) Bellows Number:8x1

    Firestone Part Number: W01-R58-4054

    Firestone Part Number: W01 R58 4054

    Firestone Part Number: W01R584054

    Firestone : W01R584085

    Firestone Bellows Number: W01 R58 4085

    Firestone Bellows Number: W01-R58-4085

    Firestone Bellows Number: W01R584085

    Norgren Part Number:: PM/31081(8x1)


    Specifications and Detailed Technical Parameters:AIRSUSTECH 1B8X1


    The top/Bottom Cover Plate Screw (Nut) Tooth: 4pcs X M10×1.5 Nut / Blind Nut; The Gas Hole / Air inlet/Gas filled/Air fitting is 1/2BSP; Top/Bottom Cover Plate Diameter (Width) is 184 mm; Bottom Cover Plate Diameter (Width) is 184 mm, the Min Height of the air spring is 47mm; This air spring doesn't have Bumper block / Buffer block and Girdle Hoop / Girdle Ring/belt loop; Rubber material Standard up to 70°C natural rubber.


    Other Single Convoluted Continental Model D Series Shock Absorber We could provide


    model

    min. design height(in)

    max. diameter (in)

    installation space required (in)

    max. recommended stroke (in)

    max. stroke (in)

    force at p = 116 psi

    connection part variant

    distance D (in)

    min. height (lb)

    half stroke (lb)

    max. stroke (lb)

    FS 22-3DI CR

    23 /4 x1

    1.97

    3.15

    3.74

    0.67

    0.79

    741.87

    517.06

    292.25

    1

    1.42

    FS 44-5DI CR

    41 /2 x1

    1.97

    4.92

    5.51

    1.38

    1.57

    1,551.18

    9,89.16

    449.62

    2

    3.66

    FS 76-7DI CR

    6x1

    2.17

    6.89

    7.48

    1.77

    2.17

    3,372.13

    1,955.84

    1,079.08

    3

    5.00

    FS 76-7DS CR

    6x1

    1.97

    6.89

    7.48

    1.77

    2.17

    3,372.13

    2,158.17

    1,079.08

    4

    5.00

    FS 210-10 DS

    10x1

    1.97

    11.02

    11.81

    3.35

    3.94

    7,598.54

    5,485.34

    2,585.30

    4

    7.13

    FS 412-10 DS

    12x1

    1.97

    12.99

    13.78

    3.35

    3.94

    11,645.10

    8,610.18

    4,181.45

    4

    9.13

    FS 614-13 DS

    14x1

    1.97

    15.75

    16.73

    3.94

    4.92

    17,400.21

    11,285.41

    4,541.14

    4

    11.12

    FS 816-15 DS

    16x 1

    1.97

    16.54

    17.52

    4.92

    5.51

    18,164.56

    13,713.34

    5,755.11

    4

    11.12

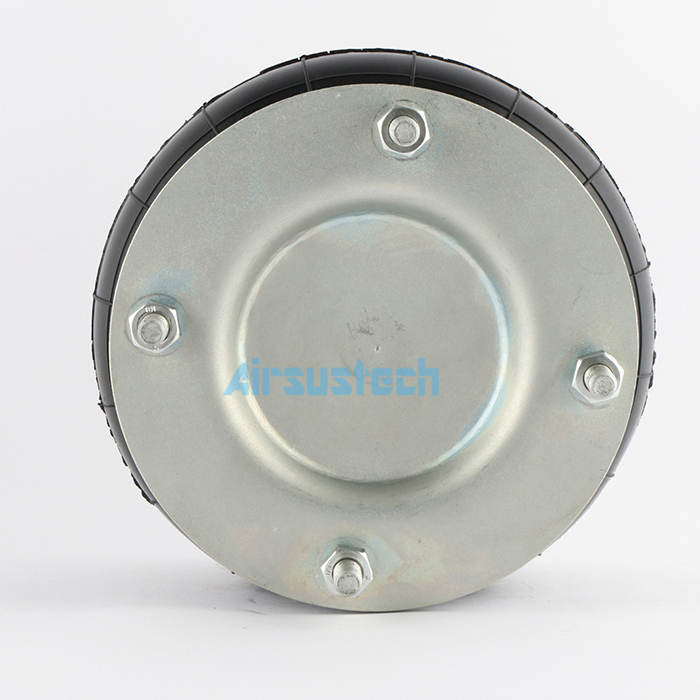

    The related picture of 1B8×1 industrial suspension air springs
