    AIRSUSTECH F-350 Pneumatic Air Spring Cross Yokohama S-350-1R S-350-2R S-350-3R S-350-4R Air Bellow Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : F-350-1, F-350-2, F-350-3, F-350-4
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    AIRSUSTECH F-350 Pneumatic Air Spring Cross Yokohama S-350-1R S-350-2R S-350-3R S-350-4R Air Bellow Suspension

    Pneumatic Spring AIRSUSTECH F-350 Series Cross Yokohama S-350-1R S-350-2R S-350-3R S-350-4R Air Bellow Suspension


    Comparable To


    AIRSUSTECH Part No.: F-350-1

    YOKOHAMA S-350-1R

    YOKOHAMA S 350 1R

    YOKOHAMA S-350-1

    YOKOHAMA S 350 1

    YOKOHAMA S350-1

    YOKOHAMA S 350 1

    YOKOHAMA S350-1R


    AIRSUSTECH Part No.: F-350-2

    YOKOHAMA S-350-2R

    YOKOHAMA S 350 2R

    YOKOHAMA S-350-2

    YOKOHAMA S 350 2

    YOKOHAMA S350-2

    YOKOHAMA S 350 2

    YOKOHAMA S350-2R

    AIRSUSTECH Part No.: F-350-3

    YOKOHAMA S-350-3R

    YOKOHAMA S 350 3R

    YOKOHAMA S-350-3

    YOKOHAMA S 350 3

    YOKOHAMA S350-3

    YOKOHAMA S 350 3

    YOKOHAMA S350-3R

    AIRSUSTECH Part No.: F-350-4

    YOKOHAMA S-350-4R

    YOKOHAMA S 350 4R

    YOKOHAMA S-350-4

    YOKOHAMA S 350 4

    YOKOHAMA S350-4

    YOKOHAMA S 350 4

    YOKOHAMA S350-4R


    Specifications and Detailed Technical Parameters


    F-350-1, F-350-2, F-350-3, F-350-4 air springs are self seal. The number of convolution is one,two three, fourt, without/1 piece/2 pieces/3 pieces ring, without plate


    Guomat No.

    Yokohama No.

    Height

    Maximum stroke(mm)

    Max diameter(mm)

    Design Height(mm)

    Max. Heigh(mm)t

    Min Height(mm)

    F-350-1

    S-350-1R

    72

    117

    40

    ±30

    450

    F-350-2

    S-350-2R

    102

    160

    55

    ±42

    410

    F-350-3

    S-350-3R

    160

    250

    85

    ±65

    410

    F-350-4

    S-350-4R

    218

    336

    118

    ±85

    410


    Guomat No.

    Yokohama No.

    Standard Height,Internal Pressure 0.49 Mpa





    Effective Area (cm2)

    Volume(L)

    Load (KN)

    Dynamic Spring Parameters (N/mm)

    Natural Frequency (Hz)

    Max inner preesure limited (Mpa)

    Burst inner pressure (Mpa)

    F-350-1

    S-350-1R

    960

    6.9

    47.1

    1520

    2.8

    0.69

    2.9-3.9

    F-350-2

    S-350-2R

    960

    9.5

    47.1

    1040

    2.3

    0.88

    3.9-4.9

    F-350-3

    S-350-3R

    960

    15.0

    47.1

    647

    1.8

    0.88

    3.9-4.9

    F-350-4

    S-350-4R

    960

    21.0

    47.1

    471

    1.6

    0.88

    3.9-4.9


    Application


    (1) Depending on the driving force

    Mechanical Power Press

    Hydraulic Press


    (2) According to the slider drive mechanism

    Crank Press

    Crankless Press

    Knuckle Press

    Friction Press

    Screw Press

    Rack Press

    Link Press

    Cam Press

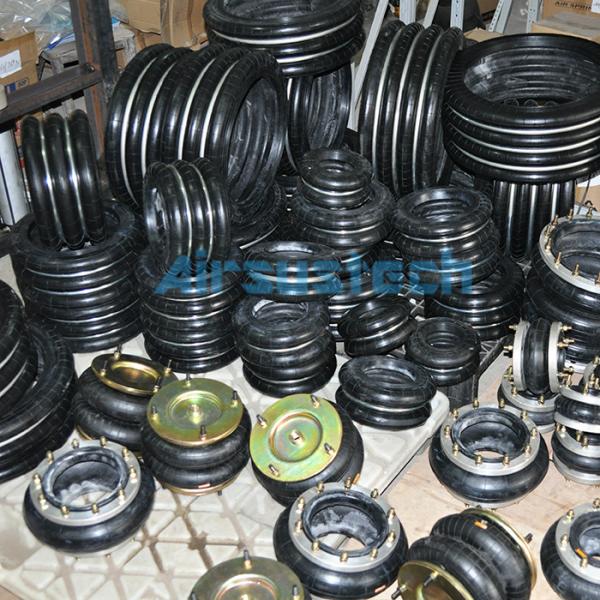

    The related picture
