Contitech FS 120-10 One Convoluted 1/4 NPTF Air Spring Apply For Expansion Chuck

Refer Number

Contitech: FS120-10

Contitech: FS 120-10

Contitech: FS120 10

Contitech: FS 120 10

Contitech: FS12010

Continental FS 120-10 CI 1/4 NPT

Continental FS 120-10 CI 1/4 NPT CA

Goodyear: 1B8-550

Goodyear: 1B8 550

Firestone: W01-358-7564

Firestone: W01 358 7564

Firestone: W013587564

Firestone: WO1-358-7564

Firestone: WO1 358 7564

Firestone: WO13587564

Firestone: w01-358-7564

Firestone: w01 358 7564

Firestone: w013587564

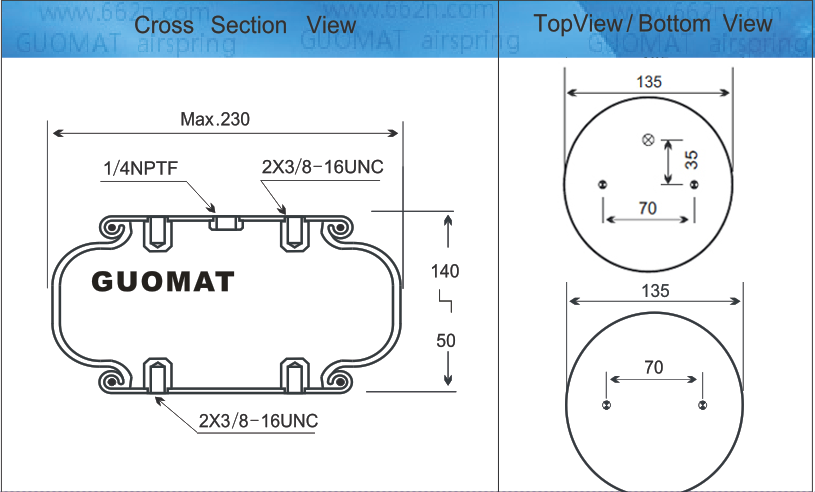

The detailed Specifications and techical data: 1B8×4

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 2.0kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 110mm, minimum 90mm

Pneumatic application-static characteristic values

Force F[KN]

Guomat 1B8×4 air spring applied to expansion chuck

The air spring is filled with compressed air in a sealed container, and uses the compressibility of the gas to achieve its elastic effect. Air springs have ideal nonlinear elastic characteristics.

The height of the annular air spring is limited from the inside, then its rubber walls will expand outwards when inflated. In this way, the air spring can be used as an expansion chuck. Note that the air must be drawn from the same mechanism that limits the height of the air spring.

The reated picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
