    Goodyear 1B9-202 578-91-3-201 One Convoluted Air Spring For Vacuum Pump

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B 9×5
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear 1B9-202 578-91-3-201 One Convoluted Air Spring For Vacuum Pump

    Goodyear 1B9-202/578-91-3-201 One Convoluted Air Spring Replacement For Vacuum Pump


    Refer Number


    Goodyear: 1B9-202

    Goodyear: 1B 9-202

    Goodyear: 1B9 202

    Goodyear: 1B 9 202

    Goodyear: 1B9202

    Goodyear: 1B 9202

    Goodyear: 578 91 3 201

    Goodyear: 578-91-3-201

    Goodyear: 578913201


    1B 9×5 Specifications and Tecnical Parameters


    1. Nut/blind nut Top plate screw (nut) teeth: 2 x 3 / 8-16UNC

    Top plate screw center distance: 89 mm

    2. Bottom cover plate screw (nut) teeth: 2 x 3 / 8-16UNC

    Bottom plate screw center distance : 89 mm
    2. Air hole/air inlet/air fitting air hole/air inlet: 1/4 and the center distance between NPT nut and air inlet: 44.5mm
    3. Top plate diameter (width): 160 mm, bottom cover diameter (width): 160 mm bell-shaped rubber bellows rubber bellows diameter: 222 mm

    4. Compression height: 100 mm / 4.1 inches maximum height: 160 mm working stroke: 60 mm

    5. Bumper block/bumper block: With/Without bumper
    6. Belt loop/belt loop with belt loop: without belt loop


    Other types of Goodyear Air Spring Shocks We could offer


    5789132012B9-2092B12-300
    1B5-22B8-5502B12-432
    1B12-3002B8-1532B12-427
    1B12-3132B8-1502B12-320
    1B12-3012B8-5502B12-311
    1B52B9-2532B12-454
    5799135002B9-3522B14-356
    1B8-12B9-2462B14-453
    5799135322B9-2522B12-434
    1B7-5402B9-2182B12-345
    1B8-5502B9-2502B12-346
    1B5-22B9-2532B12-440
    5799135022B9-2542B12-427
    2B12-4592B9-269578923356
    2B9-6062B9-2512B14-476
    2B9-2282B7-5402B14-383
    2B9-2292B12-4252B8-150
    2B9-2162B12-4252B8-153
    2B9-2042B12-4112B8-550
    2B9-2072B12-4122B8
    2B9-2012B12-304579923530
    2B9-2062B12-309556238077
    2B9-2102B12-3162B12-459
    2B9-2002B12-3203B12-328
    2B9-2022B12-3073B12-335
    2B9-2162B12-4333B12-304
    2B9-2462B12-4453B12-300
    2B9-2015789233093B12-301
    2B9-2302B12-4103B12-310
    2B9-2652B12-3123B12-304
    2B9-2802B12-313C2ECH
    2B9-2452B12-4592B12-313
    2B10-2262B12-426
    2B9-2872B12-319
    2B9-2062B12-406

    Guomat air spring 1B9×5 can be used in vacuum pumps


    A certain degree of vacuum can be established by driving an air spring. Air springs can withstand a small amount of vacuum without damaging the bladder. The maximum vacuum allowed depends on the size of the bladder, its height, and whether it is two-ply or four-ply. In general, it is best to use only single convoluted air springs in this application.

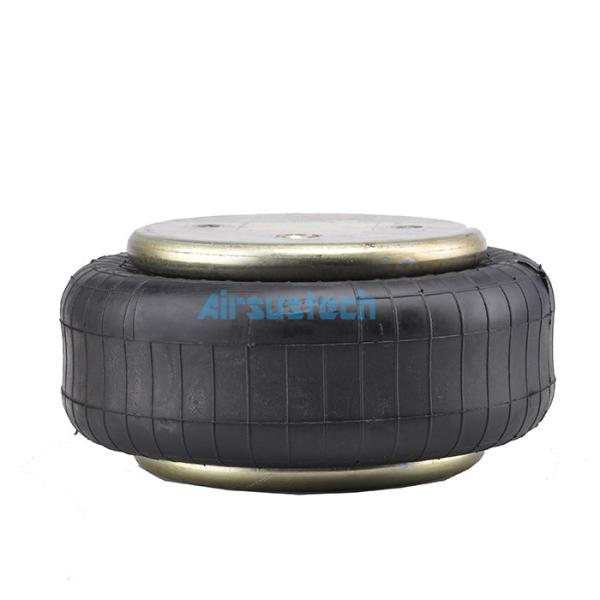

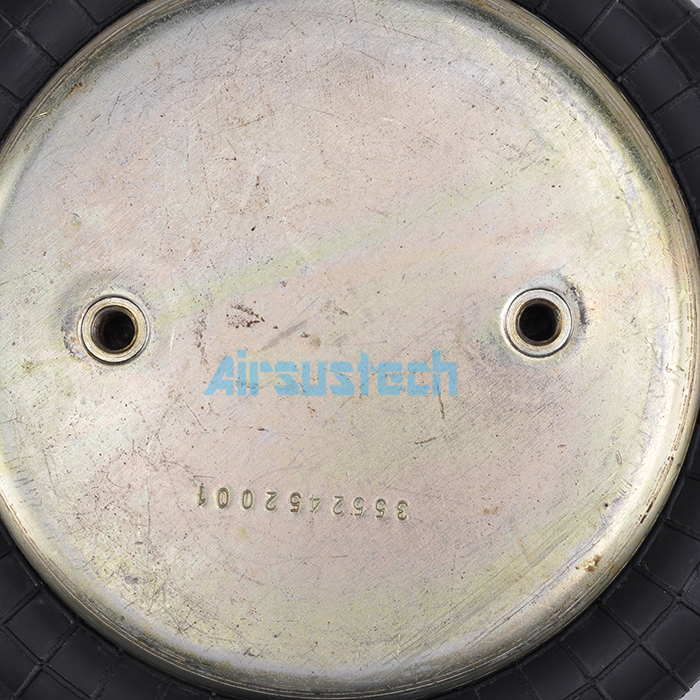

    The picture of 1B9×5 Air Bellow
