188102H-1 Single Convoluted Air Actuator M10 Teeth Rubber Spring

Specifications and Detailed Technical Parameters: 188102H-1

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6×M10
Bottom Cover Plate Screw (Nut) Tooth :6×M10

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

Cover Plate

Top Cover Plate Diameter:175MM
Bottom Cover Plate Diameter: 175MM

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring/Belt Loop

Without Girdle Hoop/girdle ring/belt loop

Other types

Flange air spring according to the connection can be divided into three categories

one is fixed flange connection type, air spring at both ends of the edge size and bursa, large diameter is equal to or slightly smaller, after drilling a number of holes with flange ring and end plate fastening connection;

The other is looper flange connection type, the air spring at both ends of the edge size is much smaller than the bursa, large outer diameter, without drilling, with a flange ring and a common end plate fastening connection;

The third type is self-sealing type, no flange connection, pressed into the end plate, filled with compressed air, self-sealing.

Advantages of Guomat Air Springs

1) Guomat air springs have excellent nonlinear hard characteristics, which can effectively limit the amplitude, avoid resonance, and prevent shock. The nonlinear characteristic curve of the air spring can be ideally designed according to the actual needs, so that it behaves with a lower stiffness value near the rated load.
2) Since the medium used by the air spring is mainly air, it is easy to implement active control.
3) The stiffness k of the air spring varies with the load P, so under different loads, the natural frequency  of its vibration isolation system is almost unchanged, and the vibration isolation effect is almost unchanged.
4) The stiffness of the Guomat air spring is adjustable, and the stiffness of the system can be changed by changing the volume of the air chamber or the inner cavity pressure. No matter how much the load is, the air pressure can be changed as needed to adjust the air spring stiffness, and the internal volume of the auxiliary air chamber can be increased to reduce the stiffness.
5) For the same size Guomat air spring, when the internal pressure changes, different load-carrying capacities can be obtained. This allows the same air spring to adapt to a variety of load requirements, so it is economical. While bearing vertical load, air spring can also bear certain lateral load and transmit torque.

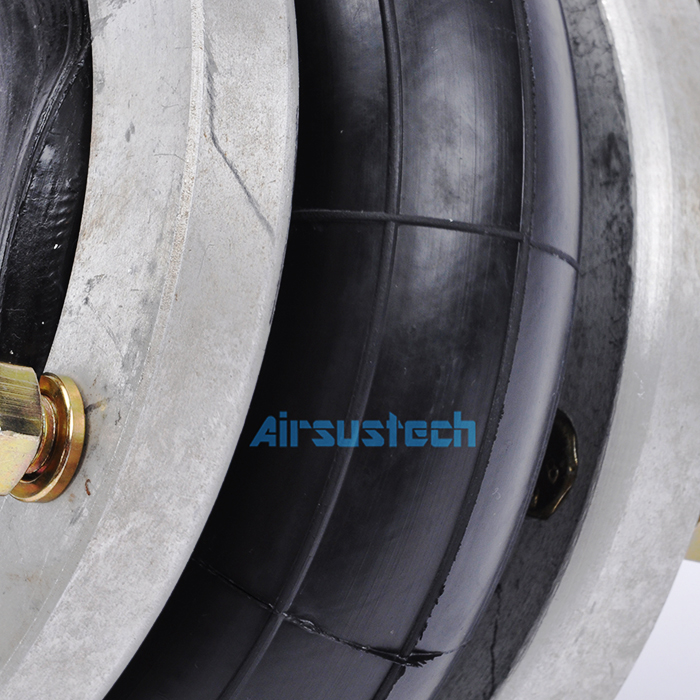

The related picture of 188102H-1

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
