Goodyear Rubber Air Spring 3B14-350/354 578933350 Replacement 3 Convoluted

Cross Reference

Airspring Supplier: Goodyear
Reference: 578933350; 578 93 3 350; 578-93-3-350
Competitor/Supplier Number: 3B14350; 3B14-350; 3B14 354

Airspring Supplier: Goodyear
Reference: 578933351; 578 93 3 351; 578-93-3-351
Competitor/Supplier Number: 3B14354; 3B14-354; 3B14 354

Airspring Supplier: Contitech
Competitor/Supplier Number: FT53032336; FT 530-323 336; FT 530 323 336

Airspring Supplier: Triangle
Reference: 6319
Competitor/Supplier Number: 4336

Suspension Supplier: Brake & Wheel
Competitor/Supplier Number: M3533

Airspring Supplier: Dayton Parts
Competitor/Supplier Number: 3547808

Suspension Supplier: EZ Ride
Competitor/Supplier Number: 8030170

Suspension Supplier: Hendrickson
Competitor/Supplier Number: S13157

Suspension Supplier: Leland
Competitor/Supplier Number: SC2031

Suspension Supplier: Navistar
Competitor/Supplier Number: 554801C1

Suspension Supplier: SAF Holland
Competitor/Supplier Number: 57007808

Suspension Supplier: Peerless
Competitor/Supplier Number: 55000030

Suspension Supplier: Ridewell
Competitor/Supplier Number: 1003587808C

Suspension Supplier: Truckstell (Marion Mfg.)
Competitor/Supplier Number: 63640

Firestone Trimmed: w013587808; w01-358-7808; w01 358 7808; W01-358-7808; W01 358 7808; W013587808; WO1-358-7808; WO1 358 7808; WO3587808; FIRESTONE FLEX 313D

Specifications and Detailed Technical Parameters: 3B7808

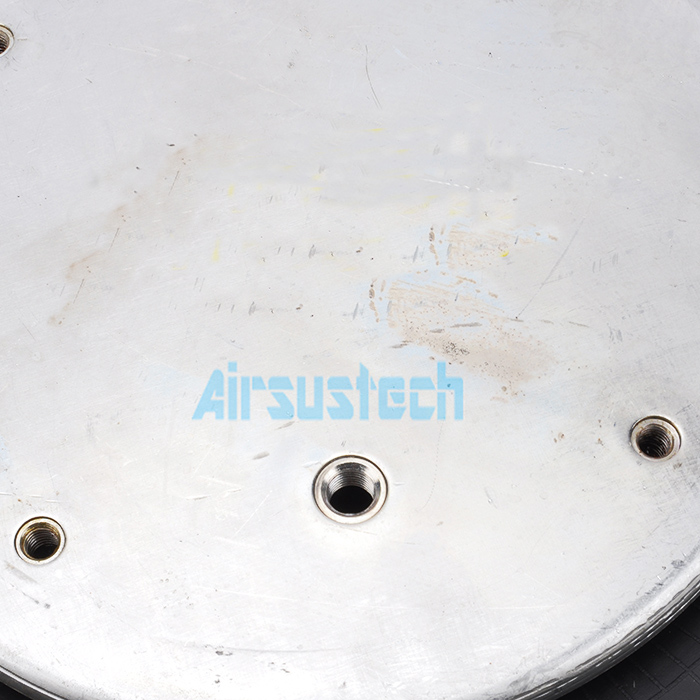

Nut/blind nut

Top plate screw (nut) teeth: 4×3//8-16UNC

Bottom cover plate screw (nut) teeth: 4×3//8-16UNC

Screw Center Distance: 158.8mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPT

The air hole is in the middle of the screw center

Rubber Bellows

Top plate diameter (width): 289mm

Diameter (width) of the bottom cover plate: 289mm

Rubber Bellows MAX Diameter: 356 mm

The Working Stroke : 282mm

Bumper block/bumper block

With bumper block

Belt loop/Girdle ring/Girdle hoop

2 pieces of belt loop/girdle hoop/girdle ring

Packing Details

Application

AIRSUSTECH 3B7808 can be widely used in various industrial equipments. Such as below.
High-speed punching airbag,

Vibration punching pneumatic tire,

VIbrating screen airbag,

Kangaroo jumping shock-absorbing airbag,

Vibrating fluidized bed dryer airbag,

Modified vehicle suspension,

Floating bridge vehicle air suspension,

Roller friction brake air spring,

Conveyor air cushion,

Straightening machine air spring,

Hot stamping machine pneumatic tire,

Belt lift tensioner pneumatic tire,etc

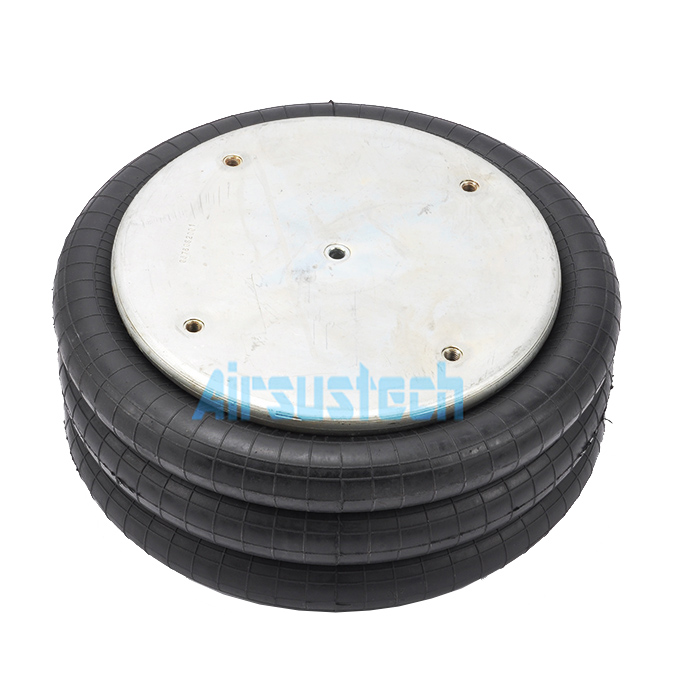

The related picture of 3B7808 air spring/airide spring/air shocks
