Triangle 6334 4432 Rubber Pneumatic Bellows Actuator 3 Convolutions
Air Spring
Refer NO.
Triangle: 6334
Triangle: 4432
Ridewell : 1003588030C
Firestone : W01-358-8030/38
Firestone : W01 358 8030
Firestone : W013588030
Firestone : WO1-358-8030
Firestone : WO1 358 8030
Firestone : WO13588030
Firestone : w013588030
Firestone : w01 358 8030
Firestone : w01-358-8030
Firestone : 38
Contitech : FT 330-29 498
Contitech : FT 330 29 498
Contitech : FT330-29 498
Contitech : FT330 29 498
Goodyear : 3B12-304
Goodyear : 3B12 304
Goodyear:556-33-8-334
Goodyear:556 33 8 334
Goodyear:556338334
Goodyear:578-93-3-100
Goodyear:578 93 3 100
Goodyear:578933100
Specifications and Detailed Technical Parameters: 3B8030
Nut/blind nut
The screw center distance of the Top cover plate: 157 mm
The screw center distance of the bottom cover plate: 157 mm
Screw And Gas Hole Distance of Top Cover Plate:73mm
Rubber Bellows
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
Rubber Bellows MAX Diameter: 330mm
The Working Stroke: 130mm to 460mm
Bumper block/bumper block
With bumper block
Belt loop/Girdle ring/Girdle hoop
Two pieces of belt loop/girdle ring/gidle hoop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 |

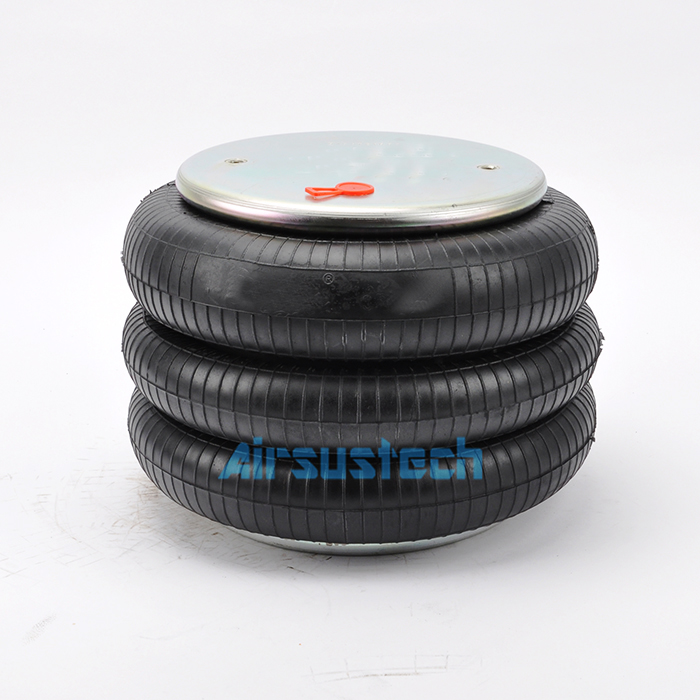

The related picture of 3B8030
Air spring shock absorbers are currently the most efficient shock
absorbers
The air spring shock absorber is an elastic element composed of an
air chamber, a rubber elastic diaphragm, and a support plate. It is
an airtight container with air inside, and uses the change of the
internal energy of the air to achieve the purpose of shock
isolation. The structure is reasonable, the bearing capacity is
wide and the air tightness is good. Suitable for vibrating
equipment.
Such as the isolation of fans, pumps, vacuum pumps, air
compressors, refrigeration compressor units, air conditioning
units, general equipment, etc.
The air spring shock absorber is a special shock absorber. It is
different from the general spring shock absorber. It is mainly
realized by rubber compressed air. This shock absorber has a unique
advantage. It is used in many mechanical equipment. The shock
absorbers used in the above must use it to really play the shock
absorption effect.
The air spring shock absorber is subjected to load changes, and the
natural frequency of the system is roughly unchanged, so it has the
characteristics of variable stiffness, so it is not necessary to
consider the center of gravity of the equipment when designing the
shock isolator. Large carrying capacity and light weight.
The core part of the air spring shock absorber - air spring was
born in the mid-19th century and was used for shock absorption of
mechanical equipment in the early days. Due to its many advantages,
it has been widely used in the fields of modern road and rail
vehicles and industrial machinery.
The air spring uses compressed air (water) as the medium, and is an
elastic element that uses the reaction force of the compressed air
inside as an elastic restoring force. It is a non-metallic spring
with spring action.
