    Rubber Suspension Air Springs Replaces Triangle 6334 4466 Industrial Triple Convoluted

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B8027
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber Suspension Air Springs Replaces Triangle 6334 4466 Industrial Triple Convoluted

    Replaces Triangle 6334 4466 Industrial Triple Convoluted Rubber Suspension Air Springs


    Cross Reference


    Triangle 4466

    Triangle 6334

    Goodyear 3B12-310

    Goodyear 3B12310

    Goodyear 3B12 310

    Goodyear 578933100

    Contitech FT 330-29 466

    Contitech FT 330 29 466

    Contitech FT330-29 466

    Contitech FT330 29 466

    Firestone W01-358-8027

    Firestone W01 358 8027

    Firestone W013588027

    Firestone 38

    Firestone W013588029

    Firestone W01 358 8029

    Firestone W01-358-8029

    Arvin Meritor 200117

    Suspensions 200117

    Silent Drive

    Histeer


    Specifications and Detailed Technical Parameters: 3B8027


    Nut/blind nut

    Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC

    Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

    The screw center distance of the Top cover plate: 157.5 mm

    The screw center distance of the bottom cover plate: 157.5 mm

    Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPT

    The air hole is combined with screw nut.

    Rubber Bellows

    Top plate diameter (width): 231 mm

    Diameter (width) of the bottom cover plate: 231 mm

    Rubber Bellows MAX Diameter: 330mm

    The Working Stroke: 117mm to 460mm

    Bumper block/bumper block

    With bumper block

    Belt loop/Girdle hoop/Girdle ring

    Two piece of belt loop/girdle hoop/girdle ring


    Min. pressure: 0 bar

    Return force to min.height: ≤400N

    Overall weight with clamped plates: 5.9kg


    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3808.811.915.118.421.725.123.6
    34010.714.418.222.025.929.821.6
    30012.316.520.825.129.533.719.2
    26013.718.222.927.632.336.916.6
    22014.819.524.629.634.639.513.8
    18015.921.126.531.837.242.410.7
    14017.022.428.133.639.144.77.5

    Working Principle


    Rubber air spring is a kind of inflatable shock absorption, and its working principle is similar to that of car tires;
    The rubber air spring can isolate high-frequency vibration and has good sound insulation effect. The rubber air spring is composed of air and rubber. The internal friction is small, and the ability to isolate high-frequency vibration will not be affected by the natural vibration of the spring itself. In addition, the rubber air spring has no metal-to-metal contact, so it is soundproof and soundproof.


    Features


    Rubber air springs have nonlinear characteristics;
    The stiffness of the rubber air spring varies with the load;

    The rubber air spring can obtain different bearing capacity by adjusting the internal pressure;
    The rubber air spring is light in weight and has a long service life;
    The rubber air spring has good high frequency vibration isolation and sound insulation performance;
    The rubber air spring requires little installation space and is easy to replace

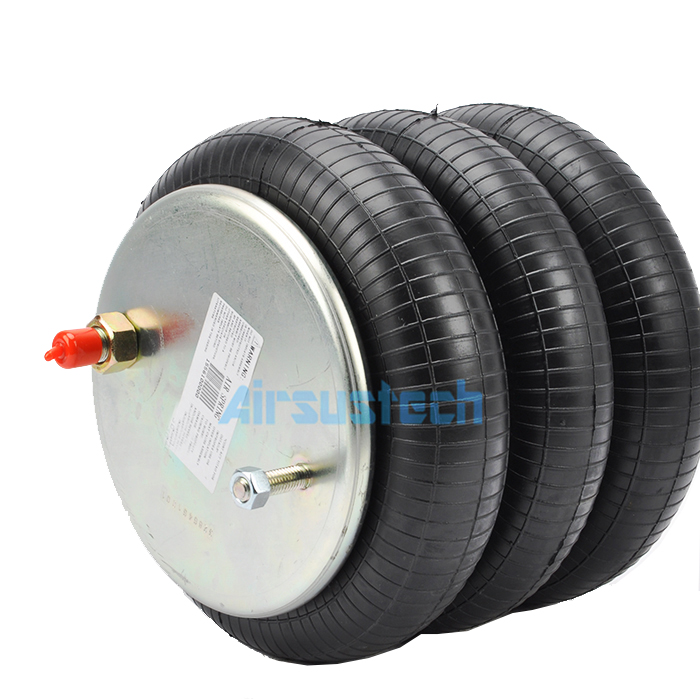

    The related picture of 3B8027
