    1/4NPT Air Spring Shocks 3B12-310 578933100 Goodyear Bagged Suspension 3 Convoluted Rubber

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B8027
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    1/4NPT Air Spring Shocks 3B12-310 578933100 Goodyear Bagged Suspension 3 Convoluted Rubber

    3B12-310 578933100 Goodyear Bagged Air Suspension 3 Convoluted Rubber Spring Shocks


    Cross Reference


    Goodyear 3B12-310

    Goodyear 3B12310

    Goodyear 3B12 310

    Goodyear 578933100

    Contitech FT 330-29 466

    Contitech FT 330 29 466

    Contitech FT330-29 466

    Contitech FT330 29 466

    Firestone W01-358-8027

    Firestone W01 358 8027

    Firestone W013588027

    Firestone 38

    Firestone W013588029

    Firestone W01 358 8029

    Firestone W01-358-8029

    Triangle 4466

    Triangle 6334

    Arvin Meritor 200117

    Suspensions 200117

    Silent Drive

    Histeer


    Specifications and Detailed Technical Parameters: 3B8027


    Nut/blind nut

    Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC

    Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

    The screw center distance of the Top cover plate: 157.5 mm

    The screw center distance of the bottom cover plate: 157.5 mm

    Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPT

    The air hole is combined with screw nut.

    Rubber Bellows

    Top plate diameter (width): 231 mm

    Diameter (width) of the bottom cover plate: 231 mm

    Rubber Bellows MAX Diameter: 330mm

    The Working Stroke: 117mm to 460mm

    Bumper block/bumper block

    With bumper block

    Belt loop/Girdle hoop/Girdle ring

    Two piece of belt loop/girdle hoop/girdle ring


    Min. pressure: 0 bar

    Return force to min.height: ≤400N

    Overall weight with clamped plates: 5.9kg


    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3808.811.915.118.421.725.123.6
    34010.714.418.222.025.929.821.6
    30012.316.520.825.129.533.719.2
    26013.718.222.927.632.336.916.6
    22014.819.524.629.634.639.513.8
    18015.921.126.531.837.242.410.7
    14017.022.428.133.639.144.77.5

    Other types of triple convoluted Goodyear air spring replacement we could offer


    3B12-328 3B12 328

    3B12-329 3B12 329
    3B12-335 3B12 335
    3B12-304 3B12 304
    3B12-300 3B12 300
    C2ECH

    Features


    Rubber air springs have nonlinear characteristics;
    The stiffness of the rubber air spring varies with the load;

    The rubber air spring can obtain different bearing capacity by adjusting the internal pressure;
    The rubber air spring is light in weight and has a long service life;
    The rubber air spring has good high frequency vibration isolation and sound insulation performance;
    The rubber air spring requires little installation space and is easy to replace

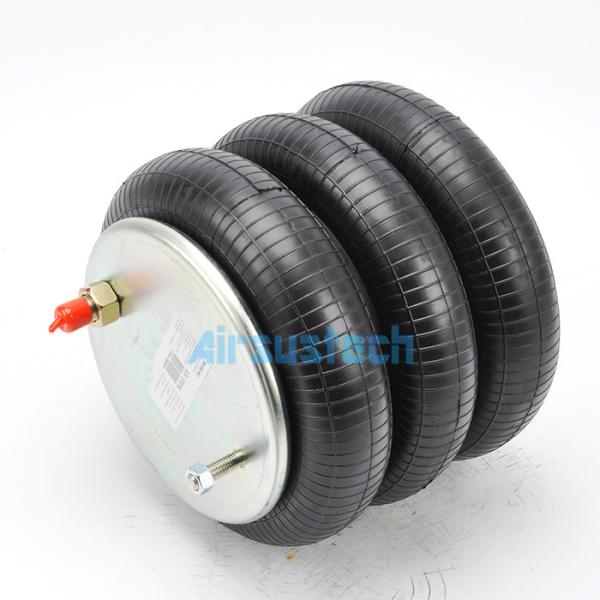

    The related picture of 3B8027
