    Double Convoluted Industrial Air Springs Norgren PM/31062 6''×2 Firestone W01-R58-4070

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : PM/31062
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Double Convoluted Industrial Air Springs Norgren PM/31062 6''×2 Firestone W01-R58-4070

    Norgren PM/31062 6''×2 Firestone W01-R58-4070 Double Convoluted Industrial Air Springs


    Cross Reference


    NorgrenPM/31062

    NorgrenPM 31062

    NorgrenPM31062

    Firestone W01-R58-4070 - (6 x 2 Alu )

    Firestone W01R584070 - (6 x 2 Alu )

    Firestone W01 R58 4070 - (6 x 2 Alu )

    Dunlop Part NO.6"x2


    Specifications and Detailed Technical Parameters: Norgren PM/31062


    Nut/blind nut

    Top plate screw (nut) teeth: 4×M8
    Screw (nut) teeth of the bottom cover plate:
    4×M8

    Air hole/air inlet/air fittings

    Air hole/air inlet: G1/2

    Rubber Bellows

    Top plate diameter (width): 153.5 mm

    Diameter (width) of the bottom cover plate: 153.5 mm

    Material top and bottom plate: aluminum

    Bell rubber bellows
    Maximum diameter at 7 bar: 178mm

    Rubber bellows stroke: 80mm-195m

    Bumper block/bumper block

    Without bumper block

    Belt loop/Girdle hoop/Girdle ring

    One piece of belt loop/girdle hoop/girdle ring


    TypeOrder No.
    CR Rubber bellows only6×2
    with aluminum plates, G1/2 air inletPM/31062

    Min. pressure: 0 bar

    Return force to min.height: ≤180N

    Overall weight with clamped plates: 1.8kg


    Vibration isloation-dynamic characteristic values
    Design height H: recommended 160mm, minimum 150mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [KN]2.63.54.55.56.57.62.0
    Spring rate [N/cm]6758551035121513951570
    Natural frequency [Hz]2.52.42.42.32.32.3

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]1602.63.54.55.56.57.62.0
    1403.34.55.66.88.19.31.7
    1203.95.26.68.09.410.81.5
    1004.66.27.89.411.112.81.2

    Other types we could offer


    Model No.PM/31021PM/31022PM/31023PM/31041PM/31042PM/31043PM/31061PM/31063PM/31081PM/31082PM/31091PM/31092
    Air InletG1/4G1/4G1/4G3/8G3/8G3/8G1/2G1/2G3/4,G1/4G3/4,G1/4G3/4,G1/4G3/4,G1/4
    Teeth2×M62×M62×M63×M63×M63×M64×M84×M82×M82×M82×M82×M8
    Rubber Bellows max. diameter80mm80mm80mm125mm125mm125mm175mm178mm215mm220mm250mm250mm
    Cover plate diameter78mm78mm78mm110mm110mm110mm152.5mm152.5mm141mm135mm161mm161mm
    Required installation space95mm95mm95mm140mm140mm140mm190mm195mm230mm235mm265mm265mm

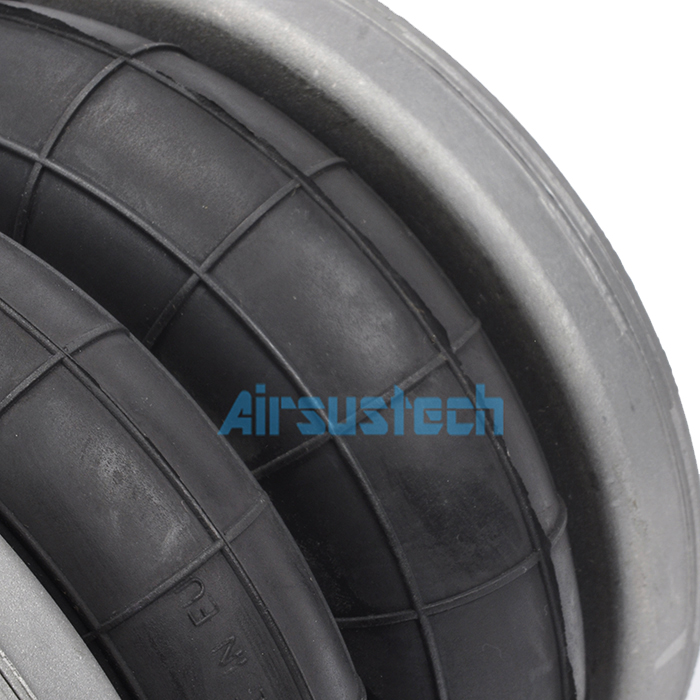

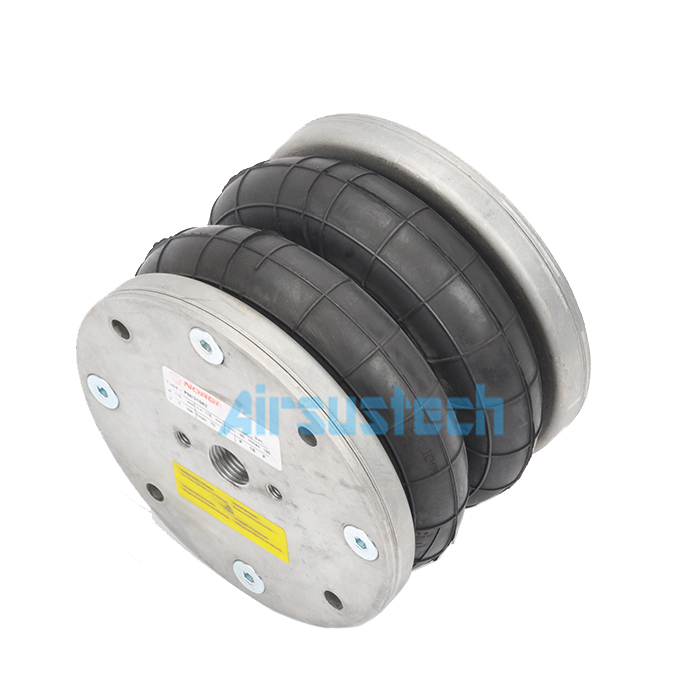

    The related picture of PM/31062



    G1/4
    110mm
