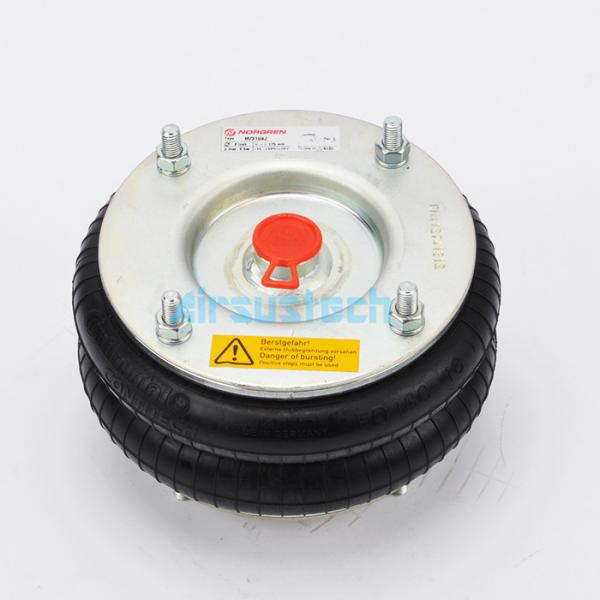

    2 Convoluted Rubber Industrial Air Springs With G1/2 Air Inlet Continental FD 138-18 DS 8×2 Norgren M/31082

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : FD 138-18 DS
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    2 Convoluted Rubber Industrial Air Springs With G1/2 Air Inlet Continental FD 138-18 DS 8×2 Norgren M/31082

    Continental FD 138-18 DS 8×2 Norgren M/31082 Industrial 2 Convoluted Rubber Air Springs With G1/2 Air Inlet


    Cross Reference.


    Manufacturer Contitech:FD 138-18 DS
    Contitech:FD 138-18 DS

    AIRSUSTECH Part Number:2B8X2

    Norgren M / 31082

    Norgren Model: M/31082

    Place of production: Imported from the UK

    Brand Name: Nuoguan

    Model: M/31082

    Quality assurance: one year

    Packaging cartons

    ContiTech (Continental) Model: FD138-18 DS

    Place of production: imported from Germany

    Brand Name: ContiTech

    Model: FD138-18

    Quality assurance: one year

    Packaging cartons


    TypeOrder No.
    Rubber bellows only66501
    with dismountable plates, G1/2 air inlet66505

    Specifications and Detailed Technical Parameters:FD 138-18 DS


    Nut/blind nut

    Top plate screw (nut) teeth: 4×M10
    The screw center distance of the top cover plate: 155.5mm
    Screw (nut) teeth of the bottom cover plate: 4×M10
    The screw center distance of the bottom cover plate: 155.5 mm

    Air hole/air inlet/air fittings

    Air hole/air inlet: G1/2

    The screw center distance between the air hole and the nut: 72.75mm

    Cover plate

    Top plate diameter: 184mm

    Diameter of the bottom cover: 184mm

    Rubber Bellows

    Maximum diameter of rubber bellows: 230 mm
    Natural diameter of rubber bellows: 205 mm
    Working stroke: minimum 75 mm to maximum 250 mm
    Maximum height: 250 mm
    Minimum height: 75 mm
    Stroke height: 175 mm

    Required Installation Space: 245mm

    Bumper block/bumper block

    Without bumper block

    Belt loop/Girdle ring/Girdle hoop

    One piece of belt loop/girdle hoop/girdle ring


    Min. pressure 0 bar
    Return force to min height ≤ 300 N
    Overall weight 3.5 kg


    Vibration isolation – dynamic characteristic values

    Design height H: recommended 200mm, minimum 180mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [kN]3.95.36.78.29.711.3
    4.1
    Spring rate [N/cm]7609701185140016101815
    Natural frequency [Hz]2.22.22.12.12.12.0

    Pneumatic application – static characteristic values

    Force F [kN]

    Pressure p [bar]345678Vol. V [l]
    Height H [mm]2202.94.05.26.47.79.04.3
    2003.95.36.78.29.711.34.1
    1505.98.010.112.414.716.93.2
    1008.211.013.716.619.422.42.0

    Advantages of airbags


    1. The elastic coefficient of spring expansion can be controlled;
    2. Adjustable load carrying capacity;
    3. Easy to achieve height control;
    4. Reduce friction;
    5. The load changes, but the natural frequency is basically unchanged.


    Other types Of Contitech Air Spring We could offer
