Continental FD70-13 CI G1/4 CA Replacement Double Convoluted
Industrial Air Springs
Cross reference
Contitnetal FD 70-13 CI G1/4 CA
Contitnetal FD70-13 CI G1/4 CA
Contitnetal FD 70 13 CI G1/4 CA
Contitech FD 70-13
Contitech FD 70 13
Contitech FD 70-13 CI
Contitech FD 70 13 CI
Contitech FD 70-13 CI G1/4
Contitech FD 70 13 CI G1/4
Firestone W01M586105
Firestone W01 M58 6105
Firestone W01-M58-6105
Firestone WO1M586105
Firestone WO1-M58-6105
Firestone WO1 M58 6105
Specifications and Tecnical Parameters: 2B7070
1. Nut/blind nut Top plate screw (nut) teeth: 2 x M8X1.25
Top plate screw center distance: 44.5 mm
2. Bottom cover plate screw (nut) teeth: 2 xM8X1.25
Bottom plate screw center distance : 44.5 mm
2. Air hole/air inlet/air fitting air hole/air inlet: G1/4
Air hole place: Middle
3. Top plate diameter (width): 105 mm, bottom cover diameter
(width): 105 mm bell-shaped rubber bellows rubber bellows diameter:
146 mm
4. Bumper block/bumper block without bumper
5. Belt loop/Girdle ring/Girdle hoop: with one piece of belt
loop/girdle ring/girdle hoop
Min. pressure: 0bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 1.5kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 175mm, minimum 160mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [KN] | 1.9 | 2.5 | 3.5 | 3.8 | 4.5 | 5.2 | 1.8 |
| Spring rate [N/mm] | 46 | 59.5 | 73 | 86 | 99.5 | 112.5 |
| Natural frequency [Hz] | 2.5 | 2.5 | 2.4 | 2.4 | 2.4 | 2.4 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 180 | 1.6 | 2.3 | 2.9 | 3.5 | 4.1 | 4.7 | 1.8 |
| 160 | 2.4 | 3.15 | 3.9 | 4.7 | 5.6 | 6.4 | 1.6 |
| 140 | 2.9 | 3.88 | 4.8 | 5.8 | 6.8 | 7.8 | 1.5 |
| 120 | 3.4 | 4.5 | 5.7 | 6.8 | 7.9 | 9.2 | 1.3 |
| 100 | 3.9 | 5.23 | 6.5 | 7.8 | 9.1 | 10.4 | 1.1 |
| 80 | 4.3 | 5.7 | 7.1 | 8.5 | 10 | 11.4 | 0.7 |
About Packing
Model No.: 2B7070
Net Weight: 1.589KG
Gross Weight: 19.668KG
Box Weight:0.6KG
Box Size: 29*29*42cm
Packing Quantity: 12
Applications
This air spring can replace FD 70-13 CI G1/4 Continental air
springs. It can be used in many industrial equipment.
Airbags for web assembly machines
Pneumatic secondary lift airbags
Air springs for gate valve operators,
Air tires for forming presses
Airbags for cable tensioning machines
Air cushions for pipe thread making machines
Air cushions for mold separators
Chassis dynamometer lift air bag
Auto air bag
Car speedometer test bench air bag
Leather pull soft air bag
Shock pull soft air bag
Jerboa air bag

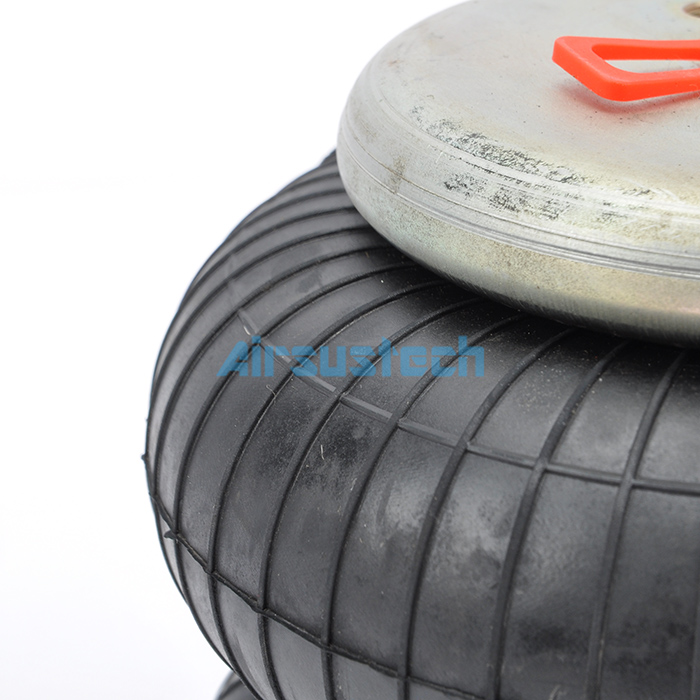

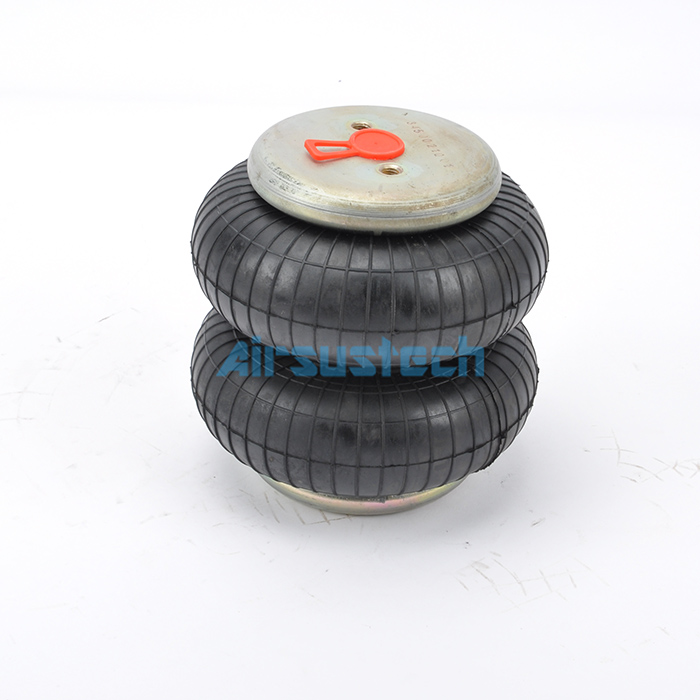

The picture
