    2 Convolutions Industrial Air Springs Goodyear 2B12-345 578923315 Helper Bags Replacement

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7545
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    2 Convolutions Industrial Air Springs Goodyear 2B12-345 578923315 Helper Bags Replacement

    Goodyear 2B12-345 578923315 Helper Bags Replacement 2 Convolutions Industrial Air Springs


    Cross Reference


    Goodyear:2B12-345

    Goodyear:2B12 345

    Goodyear:578-92-3-315

    Goodyear:578 92 3 315

    Goodyear:578923315

    Contitech:FD331-26 514

    Contitech:FD331 26 514

    Contitech:FD 331-26 514

    Contitech:FD 331 26 514

    Firestone:W01-358-7545

    Firestone:W01 358 7545

    Firestone:W013587545

    Firestone:WO1-358-7545

    Firestone:WO1 358 7545

    Firestone:WO13587545

    Triangle:6375

    Triangle:4514

    Hendrickson Aux. 001796

    (Paralift Ultra/High Lift) - Lift bag

    Watson&Chalin : AS-0087-1F

    Watson&Chalin : AS-0109


    2B7545 specifications and Tecnical Parameters


    1. Nut/blind nut Top plate screw (nut) teeth: 1/2-13UNC; 3/4-16UNC

    Top plate screw center distance : 157mm

    2. Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC

    Bottom plate screw center distance : 157 mm
    2. Air hole/air inlet/air fitting air hole/air inlet: 1/4NPTF

    The Screw is combined with the Air Inlet
    3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm

    4. Rubber bellows Max. diameter: 343mm

    5. Min height: 104mm

    Max. height: 363mm

    6. Bumper block/bumper block with bumper
    7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop


    Min. pressure: 0 bar

    Return force to min.height: ≤300N

    Overall weight with clamped plates: 5.1kg


    Vibration isolation - dynamic characteristic values

    Design Height H: recommended 240mm, minimum 220mm

    Pressure p[bar]345678Vol. V[l]
    Force(Load) [KN]10.013.316.720.624.127.612.0
    Spring rate [N/cm]159019002210252028303140
    Natural frequency [Hz]2.01.91.81.81.71.7

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]3009.813.116.720.324.027.714.0
    26012.516.721.025.429.934.513.0
    22014.619.424.429.434.539.611.6
    18016.221.627.032.538.243.89.9
    14017.623.429.335.241.347.27.8
    10018.324.430.336.342.448.55.5

    Packing Details


    Product designation: 2B7545

    Net Weight: 6.646kg

    Gross Weight: 7.226kg

    Box Weight: 0.58kg

    Box Size: 33*33*22cm

    Packing quantity: 1

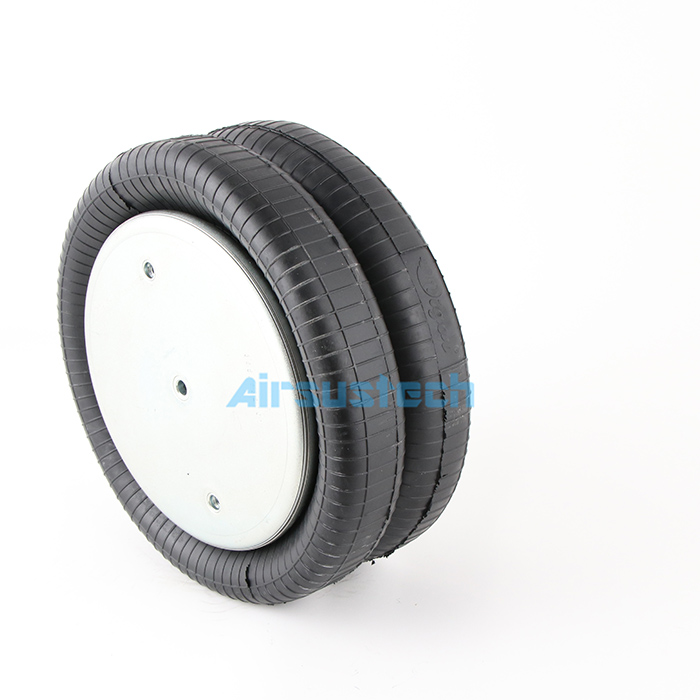

    The related picture of 2B7545 air spring
