    2 Convoluted Industrial Air Springs Goodyear 2B9-218 578923206/2 Replacement

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6927
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    2 Convoluted Industrial Air Springs Goodyear 2B9-218 578923206/2 Replacement

    AIRSUSTECH Goodyear 2B9-218 578923206/2 Replacement 2 Convoluted Industrial Air Springs


    OEM NO.


    Goodyear 2B9-218

    Goodyear 2B9 218

    Goodyear 2B9218

    Goodyear 578923206/2

    Firestone W01-358-6927

    Firestone W01 358 6927

    Firestone W013586927

    Firestone WO1-358-6927

    Firestone WO1 358 6927

    Firestone WO13586927

    Contitech FD 200-25 453

    Contitech FD 200 25 453

    Contitech FD200-25 453

    Contitech FD200 25 453

    Contitech FD 20025 453

    Contitech 161366

    Triangle 6332

    Triangle 4453

    Reyco 12906-01

    Reyco 12906 01

    SAF Holland 57006927

    Tuthill Technology 1290601


    Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6927


    Nut/blind nut

    Top plate screw (nut) teeth: 1X3/4-16UNF
    The screw center distance of the top cover plate: In the middle
    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
    The screw center distance of the bottom cover plate: 89 mm

    Air hole/air inlet/air fittings

    Air hole/air inlet: 1/4NPTF

    The air hole/air inlet is combined with the screw nut

    Cover plate

    Top plate diameter: 160 mm

    Diameter of the bottom cover: 160mm

    Bell rubber bellows

    Maximum diameter of rubber bellows: 262 mm
    Natural diameter of rubber bellows:240 mm
    Working stroke: minimum 81 mm to maximum 325 mm
    Maximum height: 325mm
    Minimum height: 81 mm
    Stroke height: 244mm

    Bumper block/bumper block

    Without bumper block

    Belt loop/Girdle hoop/Girdle ring

    One piece of belt loop/girdle hoop/girdle ring


    Min. pressure: 0bar

    Return force to min.height: ≤250N

    Overall weight with clamped plates: 3.5kg


    Vibration isloation-dynamic characteristic values
    Design height H: recommended 254mm, minimum 230mm

    Pressure p [bar]345678Vol. V [l]
    Force (Load) [KN]6.08.110.212.314.416.58.6
    Spring rate [N/cm]7309301200139016601840
    Natural frequency [Hz]1.81.81.71.71.71.7

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]2904.15.67.39.010.512.49.4
    2605.67.39.411.313.415.48.9
    2306.68.811.113.415.818.18.4
    2007.59.912.515.017.620.27.7
    1708.311.013.816.619.422.27.0
    1408.911.814.817.720.723.66.1
    1109.312.315.618.721.924.65.1

    This rubber air spring can be used in many industrial equipment. It plays an indispensable role in industrial equipment.


    Improve the isolation and shock absorption capacity of the equipment: Industrial air springs can provide the best degree of isolation and shock absorption that any other shock absorber can't match. A lower natural frequency can be provided by attaching an external gas storage device.


    Industrial air springs enable precise height control: AIRSUSTECH Air springs adjust the operating height through internal air pressure. Industrial air springs do not generate static friction with other components. In the case of changes in bearing capacity, the automatic adjustment of system pressure can ensure a stable operating height.


    Effectively prevent resonance: The air spring damping system can be designed with two natural frequencies, so resonance can be prevented by switching the natural frequency.


    Improve horizontal stability: The air spring has good horizontal stability. Effectively reduce noise: Industrial air springs can reduce structure-transmitted noise. Since it does not have the spring vibration generated in ordinary coil springs, it does not generate noise by itself.

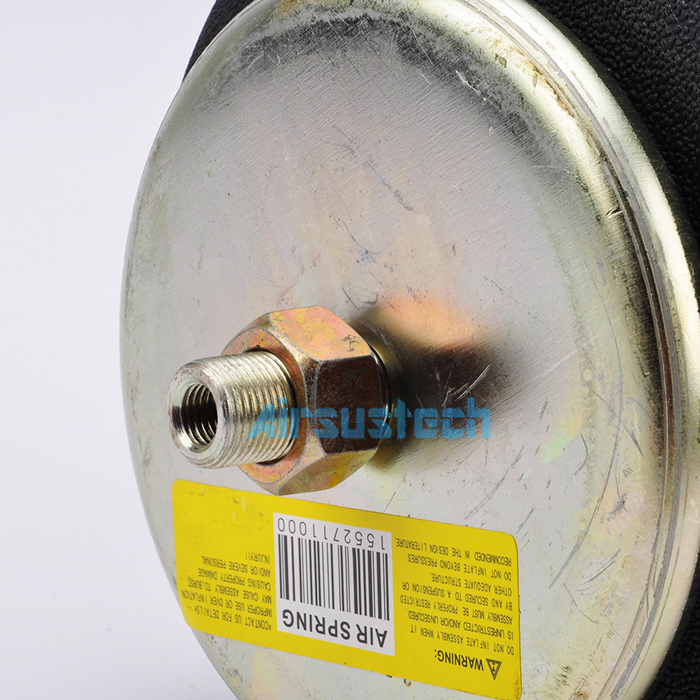

    The related picture of 2B6927
